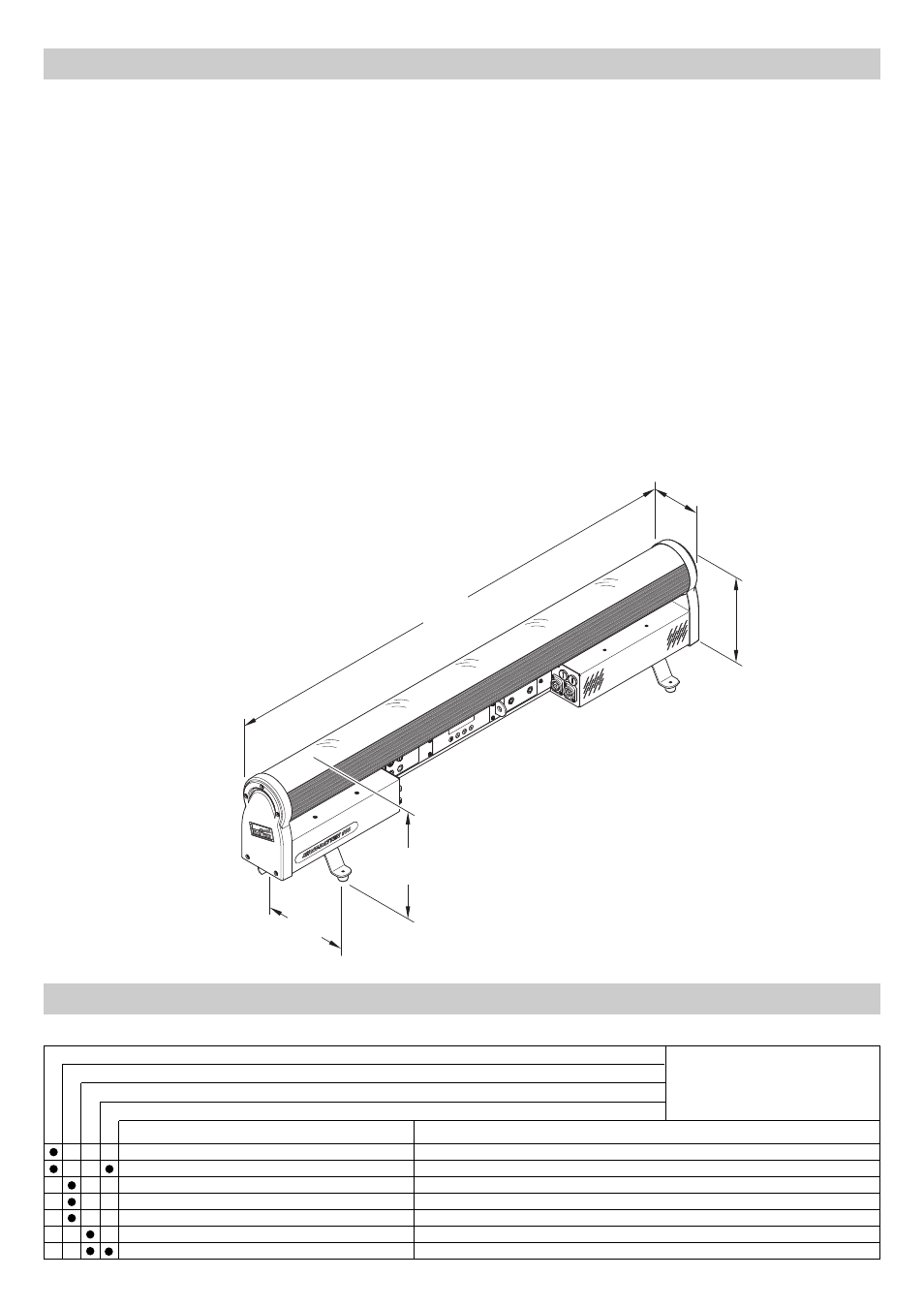

15 SHOW BATTEN 100
226
(8.90")
170
(6.69")
100
(3.94")
186
(7.32")
1000
(39.37")
Source
10x15W LED RGBW Ostar (OSRAM)
Led pilot power
150W
Optics
Electronically controlled optic zoom
LED color temperature
6000K
Head adjustment
±120°
Cooling
Forced ventilation with axial fans
User interface
• LCD display 2 lines with 16 characters each,
backlit LED, white on black
• 4 membrane buttons
Connections
• AC power input/output: Neutrik PowerCon
• DMX data in/out: 5-pin locking XLR
• Ethernet in/out with ART-net protocol
External power
full range 100-240V 50-60Hz,
PowerCon connector
Input Power
• 170 VA
• Max 1700VA connecting Max 10 units
Body
• Body extruded in black anodized aluminium
• 2 carrying handles
• 4 non-slip rubber feet
Fittings
4 fast-look holes for omega hook-up
Safety
Eyebolts for safety cables
Weight
9 Kg
Protection rating
IP20
Working position
Works in any position
CE Marking
Complies with the following European Directives
- 2006/95/EC (LVD)
- 2004/108/EC (EMC)
- 2011/65/EU (RoHS).
TECHNICAL DATA
THE PROJECTOR WILL NOT SWITCH ON
TROUBLE
THE PROJECTOR WILL NOT SWITCH ON
DEFECTIVE PROJECTION
REDUCED LUMINOSITY
POSSIBLE CAUSES CHECKS AND REMEDIES
No power supply.
LED burnt out or defective.
Signal transmission cable faulty or disconnected.
Incorrect addressing.
Fault in the electronic circuits.
Optic fault.
Dust or grease deposits.
Check the power supply voltage.
Call an authorised technician.
Replace the cables.
Check addresses (see instructions).
Call an authorised technician.
Call an authorised technician.
Clean (see instructions).
CAUSE AND SOLUTION OF PROBLEMS
