Material always exits from top setting.
Bullet spray for trees, high places and
tough rinse jobs.
Rotate for spray selection.
(Water should be off when
rotating spray head.)
SPRAY PATTERN
DETAIL
Gentle shower for flowers, delicate
shrubs and roses.
Flat spray for lawns and large areas.
DIRECT MIXTURE SETTINGS FROM
1 TEASPOON TO 4 FL OZ/GALLON
PLUS: A SIX-GALLON SETTING FOR ODD
MEASUREMENTS AND COVERAGES!
FEATURES
NO MIXING NO MEASURING NO CONVERSION
ADD PRODUCT, SET KNOB AND SPRAY!
LIQUID MEASUREMENTS
1 TABLESPOON (tbsp) = 3 TEASPOONS (tsp) or 15 MILLILITERS
2 TABLESPOONS = 1 FLUID OUNCE (fl oz)
1 CUP = 16 tbsp or 8 fl oz
1 PINT = 16 fl oz (or 2 cups)
1 QUART = 32 fl oz (or 2 pints)
PRODUCT CONTROL KNOB
WET (LIQUID) SETTINGS
The control settings refer to the amount of concentrate of
liquid the sprayer will mix into each gallon of water.
This is a multi-function precision sprayer–
follow directions exactly
EXACT SETTING = PRECISION SPRAYING
FILLING INSTRUCTIONS
1. Unscrew plastic jar from sprayer.
2. Place plastic jar on flat surface. Pour the approximate amount of product you
need for one application.
3. Replace sprayer head on the jar and attach to your garden hose with the swivel
hose connector.
4. Make sure the water control thumb switch is in the forward or
OFF position and
the product knob is in the OFF position. Turn the water on to the garden hose.
5. Rotate the control knob so that the indicator points to the proper dosage per
gallon of spray as indicated on the product label. You are now ready to accurately
spray a properly diluted solution.
EXAMPLE: If you want to use a product such as an insecticide, and the product
label calls for 1 tbsp (.05 fl oz) per gallon of water, simply pour some insecticide
into the jar, Turn the control knob until the indicator points to the 1 tbsp setting,
attach the sprayer to the jar and spray. You will automatically apply the properly
diluted spray!
LIQUID FEEDER JAR MEASUREMENTS
Gallonage measurements for use
with the six-gallon setting.
Product is poured
in and then
mixed with water
according
to directions.
Liquid ounce measurements for
direct product application.
Product is poured
straight into
the jar and then
sprayed.
Use the following liquid
settings on the sprayer:
1 TSP
1.5 TSP
2 TSP
1 TBSP (3 TSP)
4 TSP
1 OZ (2 TBSP)
1.5 OZ
2 OZ
2.5 OZ
3 OZ
4 OZ
6 GAL
A full sprayer jar will make
this many gallons:
192.0
128.0
96.0
64.0
48.0
32.0
21.0
16.0
12.8
10.5
8.0
6.0
YOUR SPRAYER JAR HOLDS 36 OZ.
AREA COVERAGE
2 ft x 50 ft
4 ft x 25 ft
5 ft x 20 ft
10 ft x 10 ft
4 ft x 250 ft
5 ft x 200 ft
10 ft x 100 ft
20 ft x 50 ft
100 sq ft = 1000 sq ft =

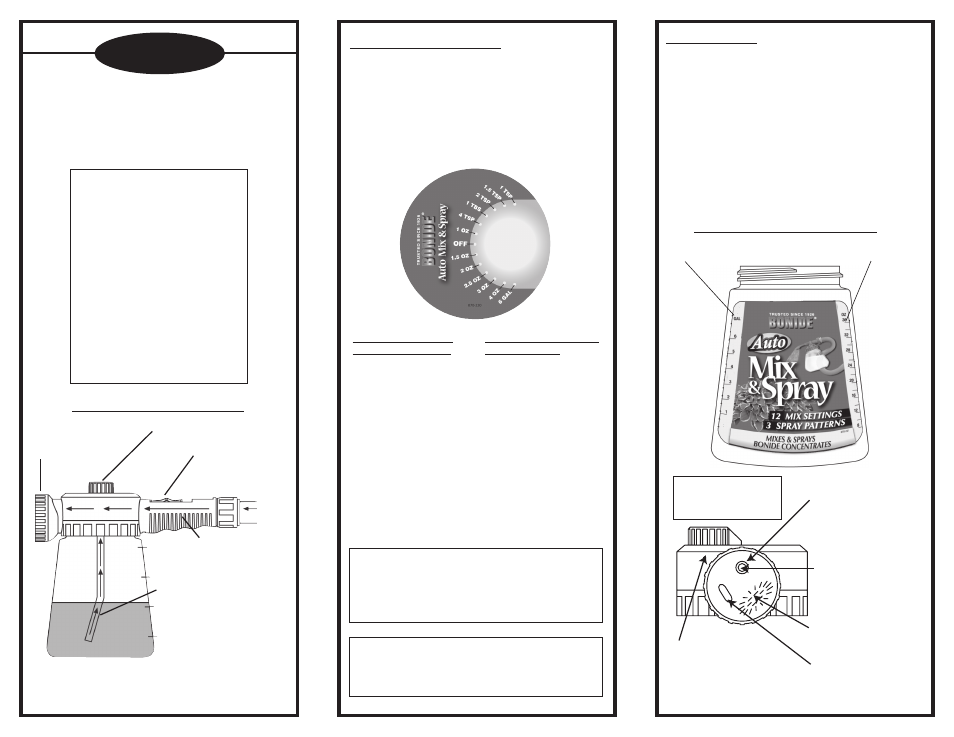

HOW YOUR LIQUID SPRAYER WORKS
Permanent rotating
spray nozzle
Rotating selector knob.
Easy water ON/OFF thumb switch.
Ergonomic, insulated grip handle
with venting fins and convenient
hose-end swivel coupler.
WET (liquid) sprayer supply tube.
Jet stream of water across spray
head creates a vacuum, pulling
up a controlled amount of product
from jar through supply tube. Stop
spraying when jar is empty.
JAR HOLDS UP TO ONE QUART OF
PRODUCT
DURABLE CHEMICAL
RESISTANT PLASTICS
EXTRA WIDE MOUTH JAR WITH STURDY BASE FOR EASY FILLING AND STABILITY
♦ SPECIAL PATENTED DESIGN
♦ EASY GRIP HOSE CONNECTOR
♦ ANTI-SIPHON VALVE
♦ WATER CONTROL THUMB SWITCH
♦ THREE SELECTABLE SPRAY PATTERNS
♦ PRECISION METERING SYSTEM
♦ SELECTION KNOB
♦ LEAKPROOF
♦ AMERICAN-MADE QUALITY
