Bunn CRTF5 - Manual (Page 19)

Page 19
SERVICE (cont.)
START SWITCH
Location:
On brewers w/out fresh light the start switch is
located in the right front of the hood.
On brewers w/fresh light the start switch is located
on the right side of the hood.
Test Procedure:
1. Disconnect the brewer from the power supply.
2. Disconnect the blue wire and the white/red wire
from the switch terminals.
3. Check for continuity across the two terminals on
the switch when it is held in the "pressed-in"
position. Continuity must not be present across
these terminals in the released position.
If continuity is present as described, reconnect the
blue wire and the white/red to the switch terminals.
If continuity is not present as described, replace the
switch.
Removal and Replacement:
1. Remove the blue wire and white/red from the start
switch.
2. Remove round retaining nut from the front of the
switch and remove switch and internal tooth
lockwasher from the inside of the hood.
3. Push new switch with internal tooth lockwasher
through the hole in the hood and secure with round
retaining nut.
4. Refer to Fig. 11 when reconnecting the wires.
BREWERS W/FRESH LIGHT
P1258.50

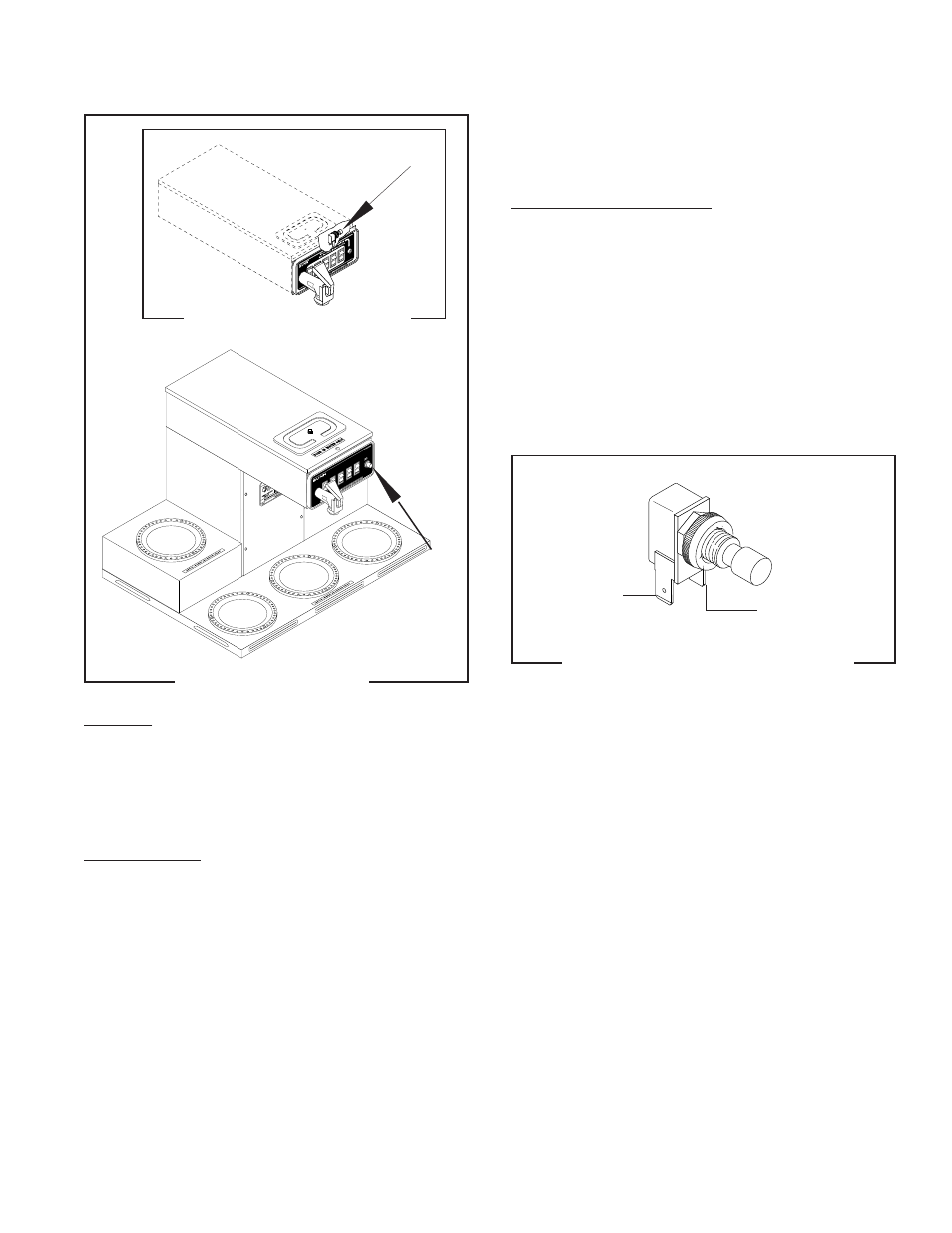

FIG. 10 START SWITCH P939
FIG. 11 START SWITCH TERMINALS
P1259
10478 061500
BLU to Timer P1
WHI/RED to
Timer P3
