4

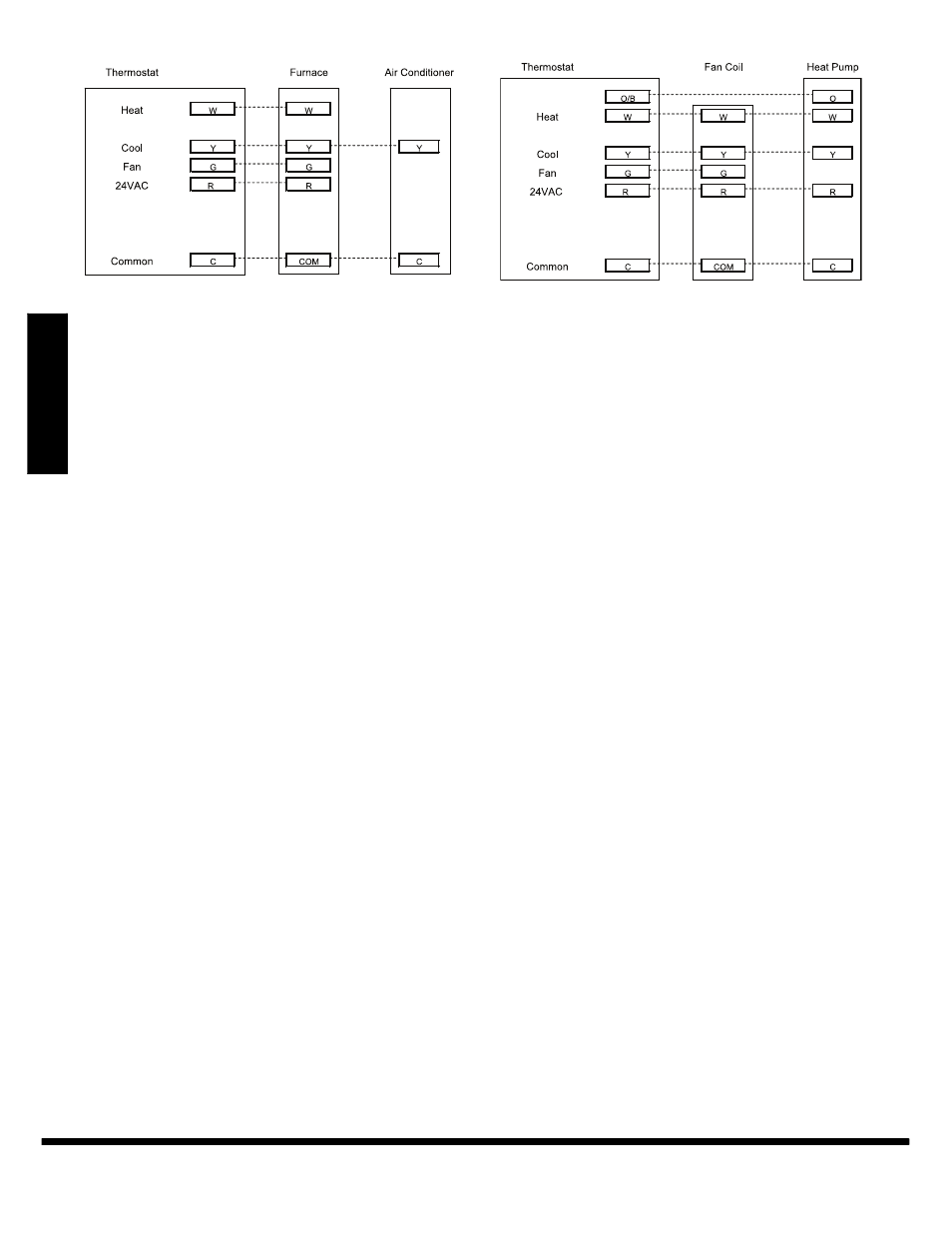

WIRING DIAGRAMS
A06566
Fig. 1 -- A/C Thermostat Typical Installation
A06567
Fig. 2 -- HP Thermostat Typical Installation
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
E 2007 Bryant Heating & Cooling Systems 7310 W. Morris St. Indianapolis, IN 46231 Printed in U.S.A. Edition Date: 09/07
Replaces: IIT1--- NAC--- 01
Catalog No. IIT1---NAC---02
T1
--
NAC
/T1
--
NH
P
