The Puck CSI Xtreme User Manual Rev. B
Copyright (c) 2014 Blizzard Lighting, LLC
4. OPERATING ADJUSTMENTS

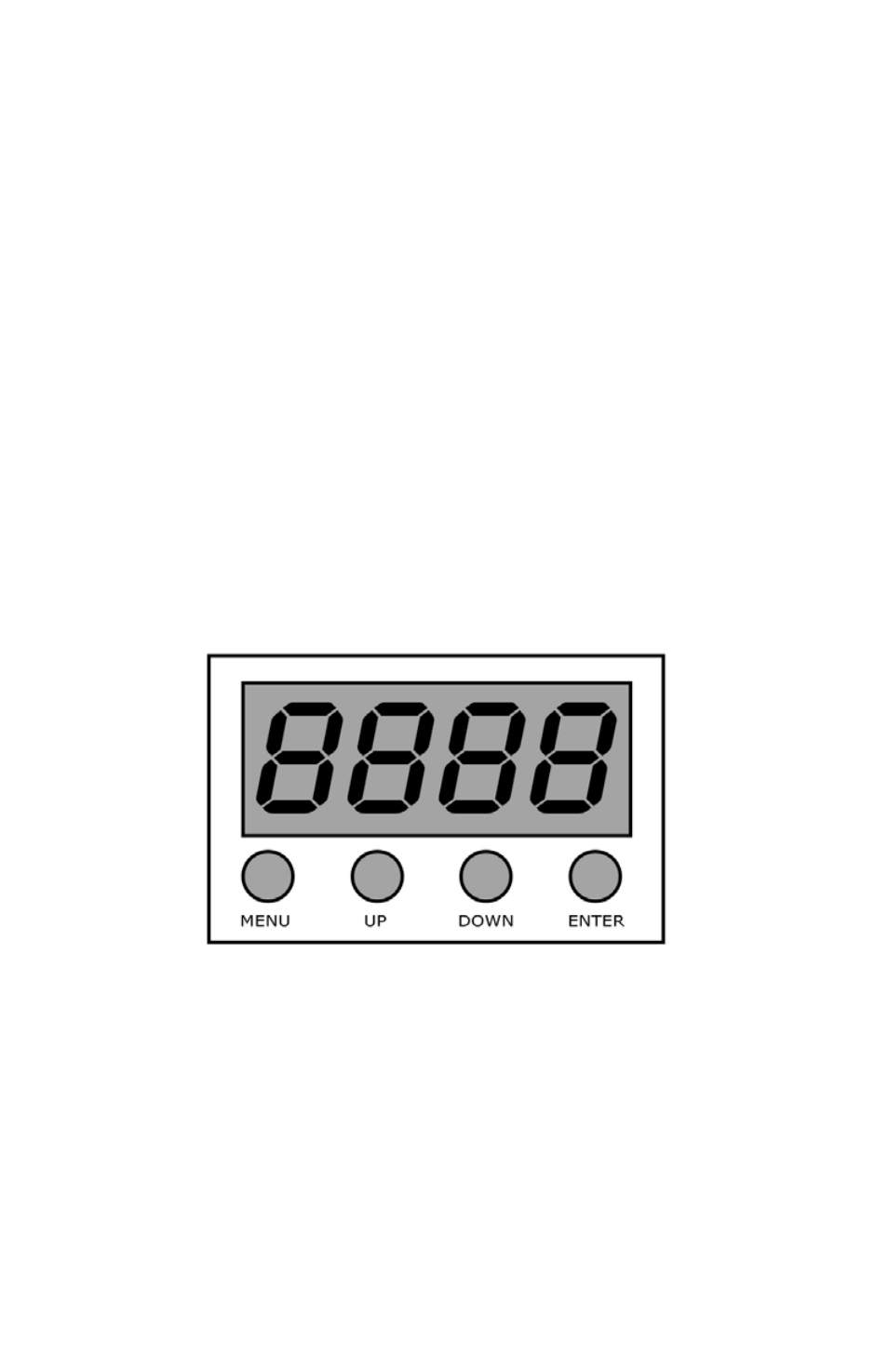

The Control Panel
All the goodies and different modes possible with the Puck CSI Xtreme
are accessed by using the control panel on the rear of the fixture.
There are 4 control buttons below the LED display which allow you to
navigate through the various control panel menus.
Is used to navigate to the previous higher-level menu item.
Scrolls through menu items and numbers in descending order.
The Control Panel LED Display shows the menu items you select from
the menu map on page #13. When a menu function is selected, the
display will show immediately the first available option for the selected
menu function. To select a menu item, press
Press the button repeatedly until you reach the desired
menu function. Use the
menu options. Press the
currently displayed, or to enable a menu option. To return to the previ-
ous option or menu without changing the value, press the
button.
