Lil G™ Moving Head Spot - Rev. A (c) 2014 Blizzard Lighting, LLC

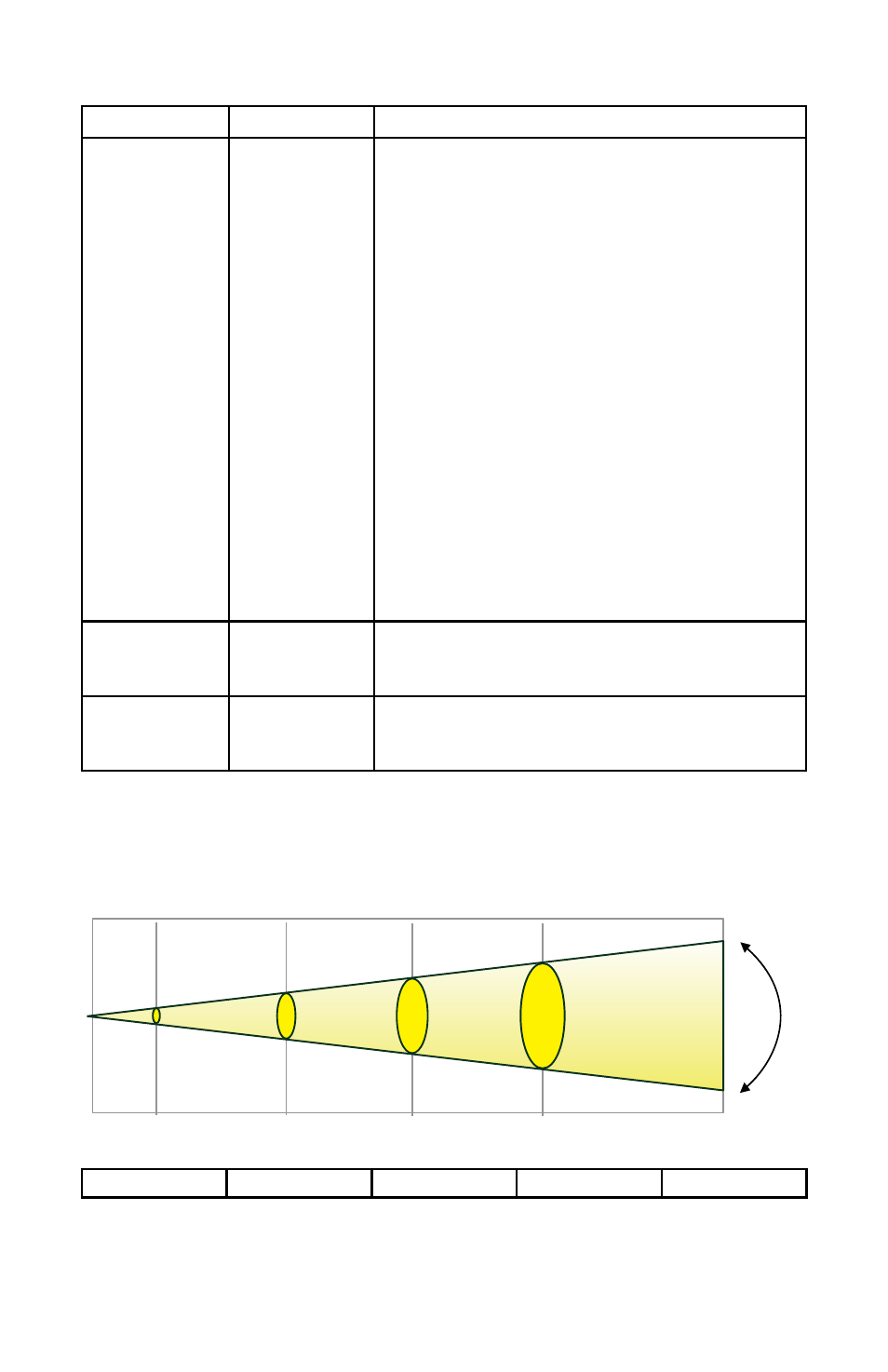

Photometric Data
9° Beam Angle LUX (White)
30,810 @ 1m 7,730 @ 2m 3,731 @ 3m 2,235 @ 4m 1,486 @ 5m
DMX Values In-Depth (11-Channel Mode, Continued)
Channel Value What It Does
9
000 <--> 009
010 <--> 019
020 <--> 029
030 <--> 039
040 <--> 049
050 <--> 059
060 <--> 069
070 <--> 079
080 <--> 089
090 <--> 099
100 <--> 109
110 <--> 119
120 <--> 129
130 <--> 139
140 <--> 149
150 <--> 159
160 <--> 169
170 <--> 179
180 <--> 189
190 <--> 222
223 <--> 255
Gobo Wheel
Open
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8
Gobo 9
Gobo 9 Shake (slow <-> fast)
Gobo 8 Shake (slow <-> fast)
Gobo 7 Shake (slow <-> fast)
Gobo 6 Shake (slow <-> fast)
Gobo 5 Shake (slow <-> fast)
Gobo 4 Shake (slow <-> fast)
Gobo 3 Shake (slow <-> fast)
Gobo 2 Shake (slow <-> fast)
Gobo 1 Shake (slow <-> fast)
Gobo Flow Clockwise (slow <-> fast)
Gobo Flow Counterclockwise (slow <-> fast)
10
001 <--> 128
129 <--> 255
Auto/Sound Active
Auto Mode
Sound Active Mode
11
000 <--> 254
255
Reset
No Function
Fixture resets in 3 seconds
0m
1m 2m 3m 4m 5m
9° B
eam
Angle
