Stand-Alone Mode (Auto Mode):
Allows a single unit to run to a factory installed program at one of two speeds.

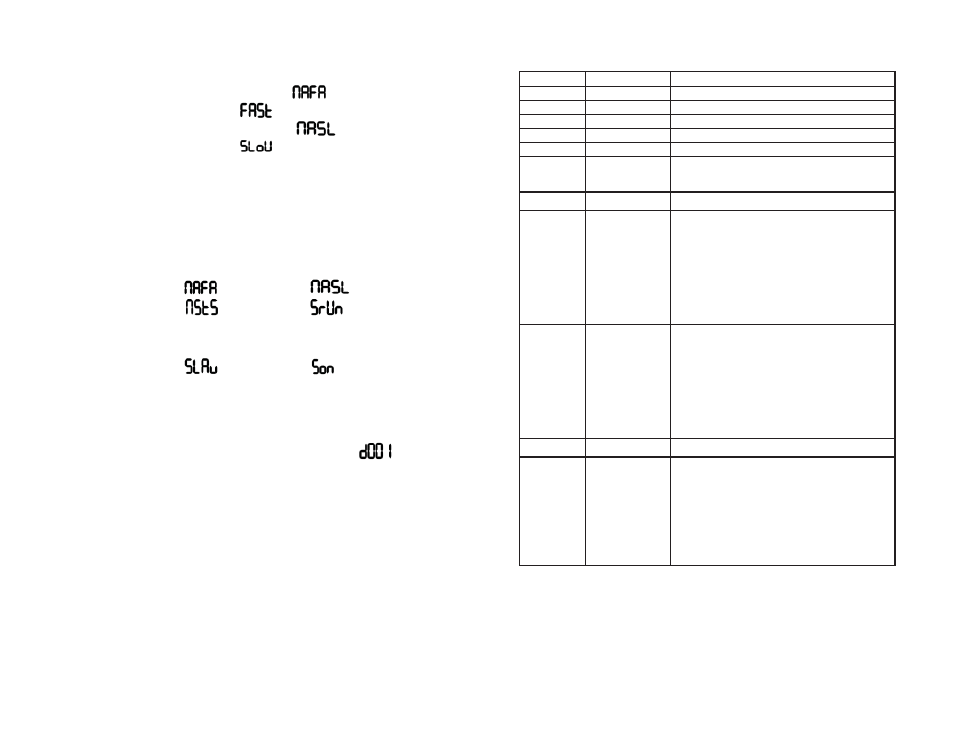

1.) To set the fi xture in auto mode fast, select .
Once confi rmed the display reads .
2.) To set the fi xture in auto mode Slow, select .
Once confi rmed the display reads .
Master/Slave Mode (Auto or Sound Active):
Allows you to link up to 32 units together without a controller.
1.) Use standard DMX cables to daisy chain your units together via the DMX con-
nector on the rear of the units. It may be necessary to use a terminator at the
last fi xture. For more information about terminators, see page 8.
2.) Choose a unit to function as the Master. Select NAFA/NASL or NStS (see be-
low for readout) depending upon which master mode you want. The master unit
must be the fi rst unit. Finally, chain the units together using DMX cable.
Master Auto or .
Master Sound becomes when confi rmed.
3.) Select slave function by using the / keys to reach SLAv in
the Master/Auto menu on the slave units, and they will react in the same as the
Master.
Slave becomes when confi rmed.
DMX Mode
Allows the unit to be controlled by any universal DMX controller. If you are unfamiliar with
DMX, please read the DMX Primer on page #17.
1.) The default mode for the fi xture is DMX, which appears as on the
LED Readout.
Page 14
FURY Manual Rev. A Copyright (c) 2010 Blizzard Lighting, LLC
DMX Channel Values (11 Channel Mode)
Channel Channel Value Does...
1 000 <-> 255 Pan
2 000 <-> 255 Pan Fine
3 000 <-> 255 Tilt
4 000 <-> 255 Tilt Fine
5 000 <-> 255 Pan/Tilt Speed (Normal to Slow)
6
000 <-> 003
004 <-> 007
008 <-> 215
216 <-> 255
Strobe
Off
Open
Strobe (Fast <-> Slow)
Open
7 000 <-> 255
Dimmer
0 <-> 100%
8
000 <-> 008
009 <-> 013
014 <-> 019
020 <-> 025
026 <-> 031
032 <-> 037
038 <-> 043
044 <-> 052
053 <-> 064
065 <-> 076
077 <-> 088
089 <-> 100
101 <-> 112
113 <-> 124
125 <-> 128
129 <-> 191
192 <-> 255
Color
White
Magenta
Yellow
Green
Purple
Blue
Lime Green
White/Magenta (Split)
Magenta/Yellow (Split)
Yellow/Green (Split)
Green/Purple (Split)
Purple/Blue (Split)
Blue/Lime Green (Split)
Lime Green/White (Split)
White
CCW Scroll (Slow <-> Fast)
CW Scroll (Slow <-> Fast)
9
000 <-> 007
008 <-> 015
016 <-> 023
024 <-> 031
032 <-> 039
040 <-> 047
048 <-> 055
056 <-> 063
064 <-> 071
072 <-> 079
080 <-> 087
088 <-> 095
096 <-> 103
104 <-> 111
112 <-> 119
120 <-> 127
128 <-> 191
192 <-> 255
Gobo
Open
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo Shake 7
Gobo Shake 6
Gobo Shake 5
Gobo Shake 4
Gobo Shake 3
Gobo Shake 2
Gobo Shake 1
Open
Gobo Wheel Spin CW (Slow <-> Fast)
Gobo Wheel Spin CCW (Slow <-> Fast)
10 000 <-> 255
Focus
0 <-> 100%
11
000 <-> 007
008 <-> 023
024 <-> 039
040 <-> 055
056 <-> 071
072 <-> 087
088 <-> 103
104 <-> 119
120 <-> 135
136 <-> 151
152 <-> 167
168 <-> 183
184 <-> 199
200 <-> 215
216 <-> 231
232 <-> 247
248 <-> 255
Built-In Programs
No Function
Built-In Program #1
Built-In Program #2
Built-In Program #3
Built-In Program #4
Built-In Program #5
Built-In Program #6
Built-In Program #7
Built-In Program #8
Sound Active Program #1
Sound Active Program #2
Sound Active Program #3
Sound Active Program #4
Sound Active Program #5
Sound Active Program #6
Sound Active Program #7
Sound Active Program #8
