Blizzard Lighting Wash Flurry - Manual (Page 6)

Page 11
Flurry Wash Manual Rev. A Copyright (c) 2010 Blizzard Lighting, LLC

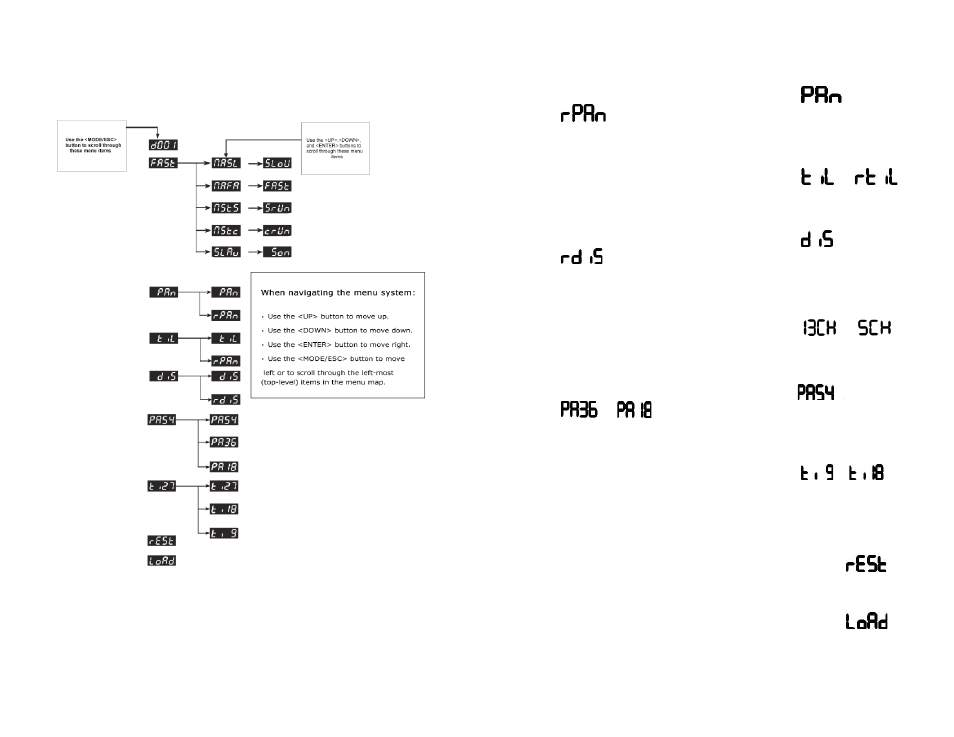

Control Panel Menu Structure
Page 12
Flurry Wash Manual Rev. A Copyright (c) 2010 Blizzard Lighting, LLC
Additional User Adjustments
TO SET THE PAN TO REVERSED OR NORMAL:
1.) Press the button until it shows or
2.) Use the buttons to set to the desired position, press
to confi rm.
TO SET THE TILT TO REVERSED OR NORMAL:
1.) Press the button until it shows or
2.) Use the buttons to set to the desired position, press
to confi rm.
TO SET THE LED READOUT TO REVERSED OR NORMAL:
1.) Press the button until it shows or
2.) Use the buttons to set to the desired position, press
to confi rm.
TO SET THE DMX CHANNEL CONFIGURATION:
1.) Press the button until it shows or
2.) Use the buttons to set to the desired position, press
to confi rm.
TO SET THE MAXIMUM PAN ANGLE:
1.)Press the button until it shows or
or
2.) Use the buttons to set to the desired position, press
to confi rm.
TO SET THE MAXIMUM TILT ANGLE:
1.) Press the button until it shows or
2.) Use the buttons to set to the desired position, press
to confi rm.
Service Functions
TO RESET THE FIXTURE:
1.) Press the button until the display shows
2.) Press to confi rm your selection.
TO RESTORE ALL SETTINGS TO THEIR FACTORY DEFAULTS:
1.) Press the button until the display shows
2.) Press to confi rm your selection.
