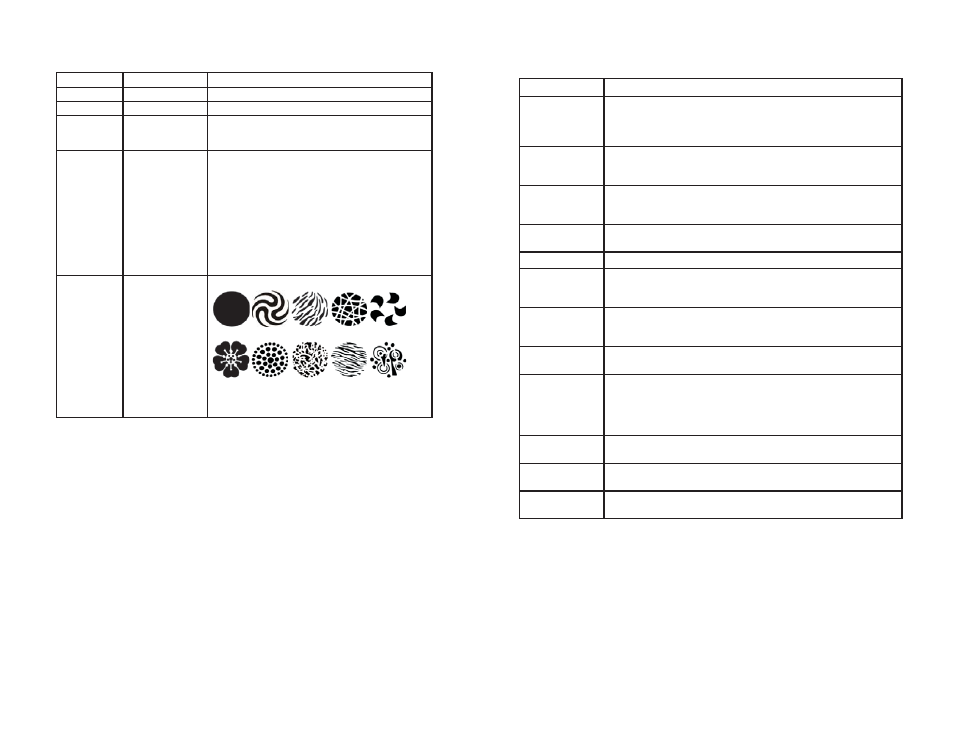

DMX Channel Values (5 Channel Mode)
Channel Channel Value Does...
1 000 <-> 255 Pan
2 000 <-> 255 Tilt
3
000 <-> 007
008 <-> 134
135 <-> 239
240 <-> 255
Dimmer/Strobe
Closed
100%-0% Dimming
Strobe (Slow-Fast)
Open
4
000 <-> 007
008 <-> 021
022 <-> 035
036 <-> 049
050 <-> 063
064 <-> 077
078 <-> 091
092 <-> 105
106 <-> 119
120 <-> 133
134 <-> 147
148 <-> 161
162 <-> 175
176 <-> 189
190 <-> 203
204 <-> 217
218 <-> 231
232 <-> 244
245 <-> 255
Color Macros
No Function
White
Red
Green
Blue
Cyan
Magenta
Yellow
Orange
Purple
Pink
Light Blue
Aqua
Chartreuse
Light Blue
Light Pink
Light Purple
Color Change Macro #1
Color Change Macro #2
5
Gobo (Pattern) Select
080 <--> 214 - Gobo Shake (Slow <--> Fast)
215 <--> 255 - Gobo Wheel Spin
(Clockwise <--> Counterclockwise, Slow <--> Fast)
000<-->007 008<-->015 016<-->023 024<-->031 032<-->039
040<-->047 048<-->055 056<-->063 064<-->071 072<-->079
Page 16
Flurry Spot Manual Rev. A Copyright (c) 2010 Blizzard Lighting, LLC
Troubleshooting
Symptom Solution
Fixture Auto-
Shut Off
Check the fan in the fi xture. If it is stopped or moving
slower than normal, the unit may have shut itself off due to
high heat. This is to protect the fi xture from overheating.
Clear the fan of obstructions, or return the unit for service.
Beam is Dim Check optical system and clean excess dust/grime. Also
ensure that the 220V/110V switch is in the correct position,
if applicable.
No Light Output Check to ensure fi xture is operating under correct mode, IE
sound active/auto/DMX/Etc., if applicable. Contact service
for more information.
Chase Speed
Too Fast/Slow
Check to ensure proper setup of speed adjustment.
No Power Check fuse, AC cord and circuit for malfunction.
Blown Fuse Check AC cord and circuit for damage, verify that moving
parts are not restricted and that unit’s ventilation is not
obstructed.
Slow Movement Verify that 220V/110V switch is in the correct position, if
applicable. Also check that speed channels are set appropri-
ately.
No Response to
Audio
Verify that the fi xture is in “Sound Active” mode.
Adjust Audio Sensitivity, If Applicable.
Fixture Not
Responding /
Responding Er-
raticly
Make sure all connectors are seated properly and securely.
Use Only DMX Cables.
Install a Terminator.
Check all cables for defects.
Reset fi xture(s).
Intermittant
Lamp
Check lamp for properly installation.
Relamp, lamp may have reached end of life.
Remote Doesn’t
Work
Verify remote control cable is installed properly and securely.
Verify remote is correct type (CA-9 or other as applicable.)
Fixture Moving
On Its Own
Verify proper mode of operation. Is the fi xture in “Auto”
mode?
If your problem isn’t listed, or if problems persist,
please contact support: [email protected].
