Page 13
Flurry Spot Manual Rev. A Copyright (c) 2010 Blizzard Lighting, LLC

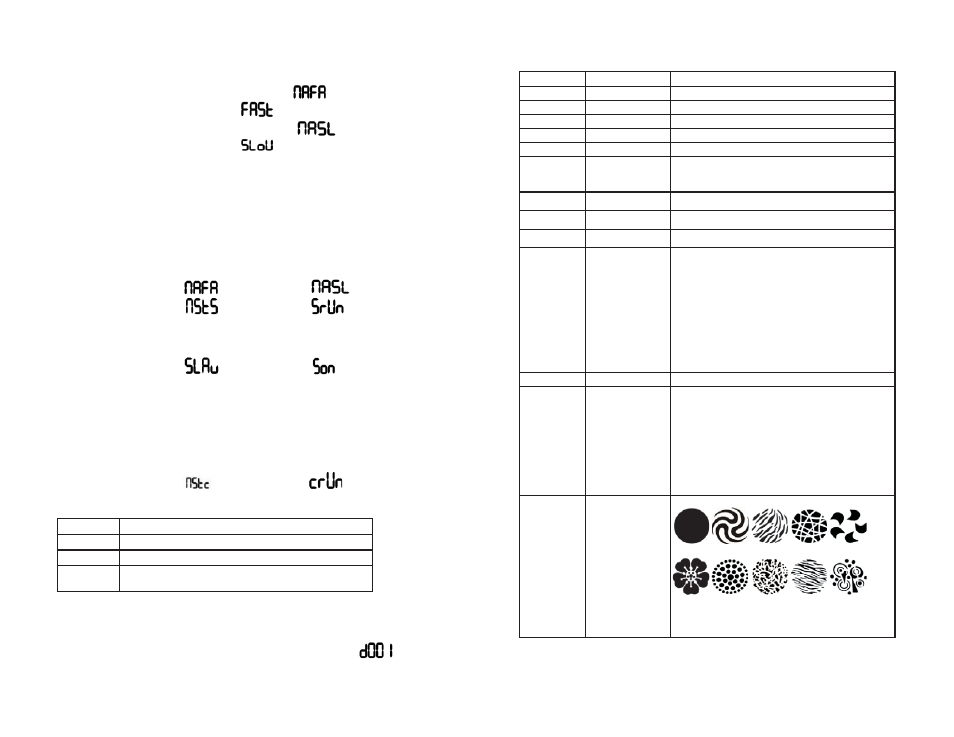

Stand-Alone Mode (Auto Mode):
Allows a single unit to run to a factory installed program at one of two speeds.
1.) To set the fi xture in auto mode fast, select .
Once confi rmed the display reads .
2.) To set the fi xture in auto mode Slow, select .
Once confi rmed the display reads .
Master/Slave Mode (Auto or Sound Active):
Allows you to link up to 32 units together without a controller.
1.) Use standard DMX cables to daisy chain your units together via the DMX con-
nector on the rear of the units. It may be necessary to use a terminator at the
last fi xture. For more information about terminators, see page 8.
2.) Choose a unit to function as the Master. Select NAFA/NASL or NStS (see be-
low for readout) depending upon which master mode you want. The master unit
must be the fi rst unit. Finally, chain the units together using DMX cable.
Master Auto or .
Master Sound becomes when confi rmed.
3.) Select slave function by using the / keys to reach SLAv in
the Master/Auto menu on the slave units, and they will react in the same as the
Master.
Slave becomes when confi rmed.
Easy Controller Mode
Allows you to use the optional CA-9 Easy Controller for basic control functionality.
1.) Connect the CA-9 Easy Controller to the controller port on the rear panel of
the unit.
2.) Select the Easy Controller function by using the / keys to
reach NStc in the menu structure.
Easy Control becomes when confi rmed.
3.) In Easy Controller Mode, the fi xture will react as follows:
Button What it Does...
Standby Blackout.
Function 1st click = Strobe On, 2nd click = Strobe Off.
Mode 1st click = Sound Active Mode (Remote LED will be on).
2nd click = Auto Mode (LED will be off).
DMX Mode
Allows the unit to be controlled by any universal DMX controller. If you are unfamiliar with
DMX, please read the DMX Primer on page #17.
1.) The default mode for the fi xture is DMX, which appears as on the
LED Readout.
Page 14
Flurry Spot Manual Rev. A Copyright (c) 2010 Blizzard Lighting, LLC
DMX Channel Values (13 Channel Mode)
Channel Channel Value Does...
1 000 <-> 255 Pan
2 000 <-> 255 Tilt
3 000 <-> 255 Pan Fine
4 000 <-> 255 Tilt Fine
5 000 <-> 255 Pan/Tilt Speed (Normal to Slow)
6
000 <-> 007
008 <-> 134
135 <-> 239
240 <-> 255
Dimmer/Strobe
Closed
100%-0% Dimming
Strobe (Slow-Fast)
Open
7 000 <-> 255 Red
0-100%
8 000 <-> 255 Green
0-100%
9 000 <-> 255 Blue
0-100%
10
000 <-> 007
008 <-> 021
022 <-> 035
036 <-> 049
050 <-> 063
064 <-> 077
078 <-> 091
092 <-> 105
106 <-> 119
120 <-> 133
134 <-> 147
148 <-> 161
162 <-> 175
176 <-> 189
190 <-> 203
204 <-> 217
218 <-> 231
232 <-> 244
245 <-> 255
Color Macros
No Function
White
Red
Green
Blue
Cyan
Magenta
Yellow
Orange
Purple
Pink
Light Blue
Aqua
Chartreuse
Light Blue
Light Pink
Light Purple
Color Change Macro #1
Color Change Macro #2
11 000 <-> 255 Color Speed
12
000 <-> 007
008 <-> 023
024 <-> 039
040 <-> 055
056 <-> 071
072 <-> 087
088 <-> 104
105 <-> 117
118 <-> 135
136 <-> 151
152 <-> 167
168 <-> 183
184 <-> 199
200 <-> 215
216 <-> 231
232 <-> 247
247 <-> 255
Movement Macros
No Function
Automatic Program #1
Automatic Program #2
Automatic Program #3
Automatic Program #4
Automatic Program #5
Automatic Program #6
Automatic Program #7
Automatic Program #8
Sound Active Program #1
Sound Active Program #2
Sound Active Program #3
Sound Active Program #4
Sound Active Program #5
Sound Active Program #6
Sound Active Program #7
Sound Active Program #8
13
Gobo (Pattern) Select
080 <--> 214 - Gobo Shake (Slow <--> Fast)
215 <--> 255 - Gobo Wheel Spin
(Clockwise <--> Counterclockwise, Slow <--> Fast)
000<-->007 008<-->015 016<-->023 024<-->031 032<-->039
040<-->047 048<-->055 056<-->063 064<-->071 072<-->079
