Page 7
6
Air Disc Brake Components
Bendix
®
ESD-225
™

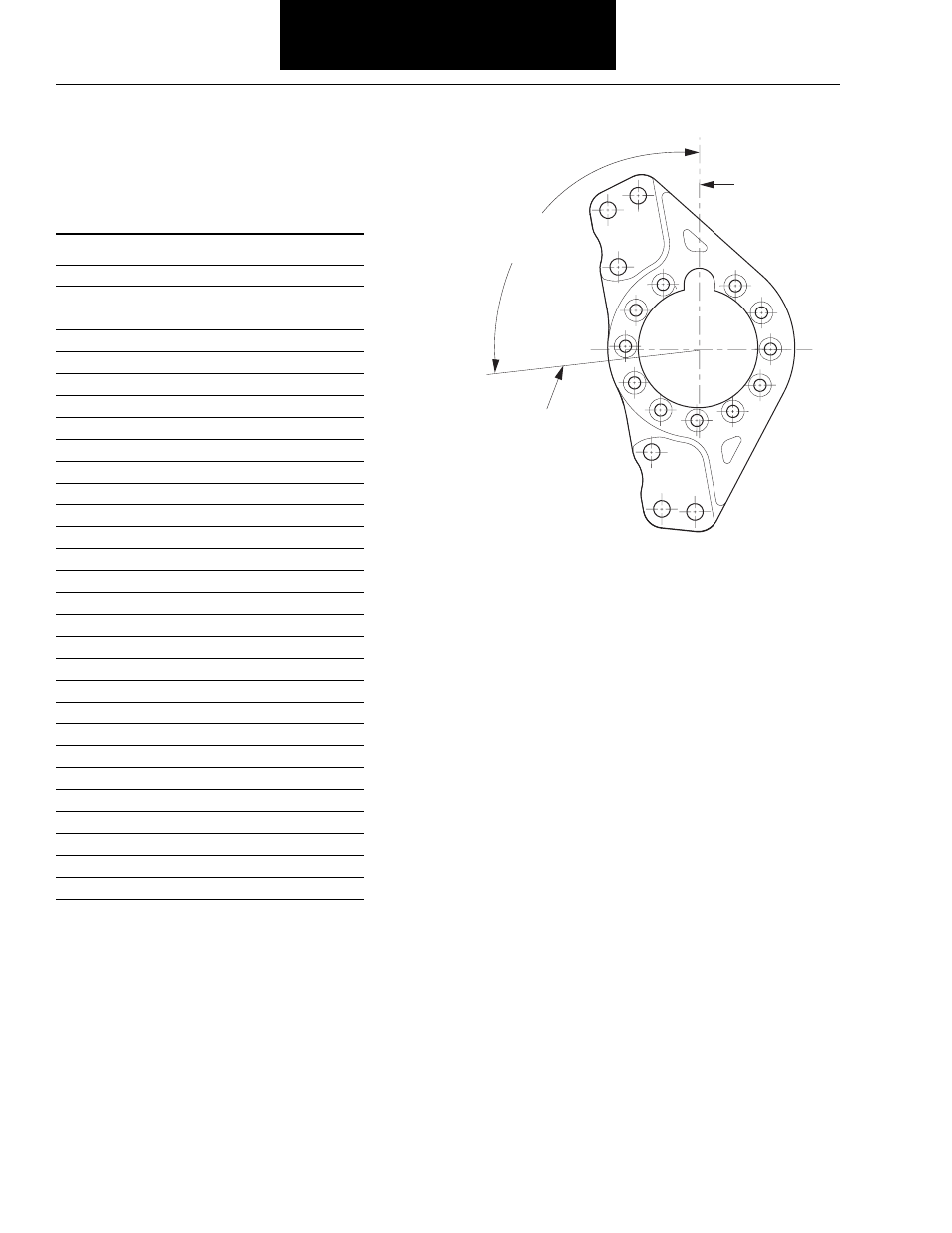

Air Disc Brake Torque Plates
A°
MOUNTING ANGLE
(CCW FROM AXLE VERT. )
L
C
VERTICAL
OF AXLE
L
C
OF BRAKE
L
C
Mounting
Part
Number Index
Angle
OEM
976012
100°
976013
260°
976014
110°
Kenworth
976015
250°
Kenworth
976016
98°
Peterbilt
976017
262°
Peterbilt
976018
105°
Peterbilt
976019
255°
Peterbilt
976020
124°
Kenworth
976021
236°
Kenworth
976048
285°
Sutphen
976049
75°
Sutphen
976050
150°
Various
976051
210°
Various
976052
90°
Freightliner & Sutphen
976053
270°
Freightliner & Sutphen
976064
85°
Freightliner
976065
275°
Freightliner
976138
95°
Various
976139
265°
Various
976140
103°
Various
976141
257°
Various
976144
359°
Monaco
976145
1°
Monaco
976148
250°
Peterbilt
976149
110°
Peterbilt
976172
128°
Kenworth
976173
232°
Kenworth
976174
240°
Kenworth
976175
120°
Kenworth
Torque Plates (Drive Axle)
