3. GETTING STARTED
The SmarTire
™
by Bendix CVS LF tool is powered by a standard 9-Volt battery. To install the
battery, open the battery access panel on the back of the tool and connect the supplied battery to
the 9-Volt battery connector. Insert the battery into the slot and close the battery access panel.
Press and hold the ON/OFF button for 2 seconds to power up the tool.
4.
USING THE SMARTIRE ™ LF TOOL
The SmarTire
™

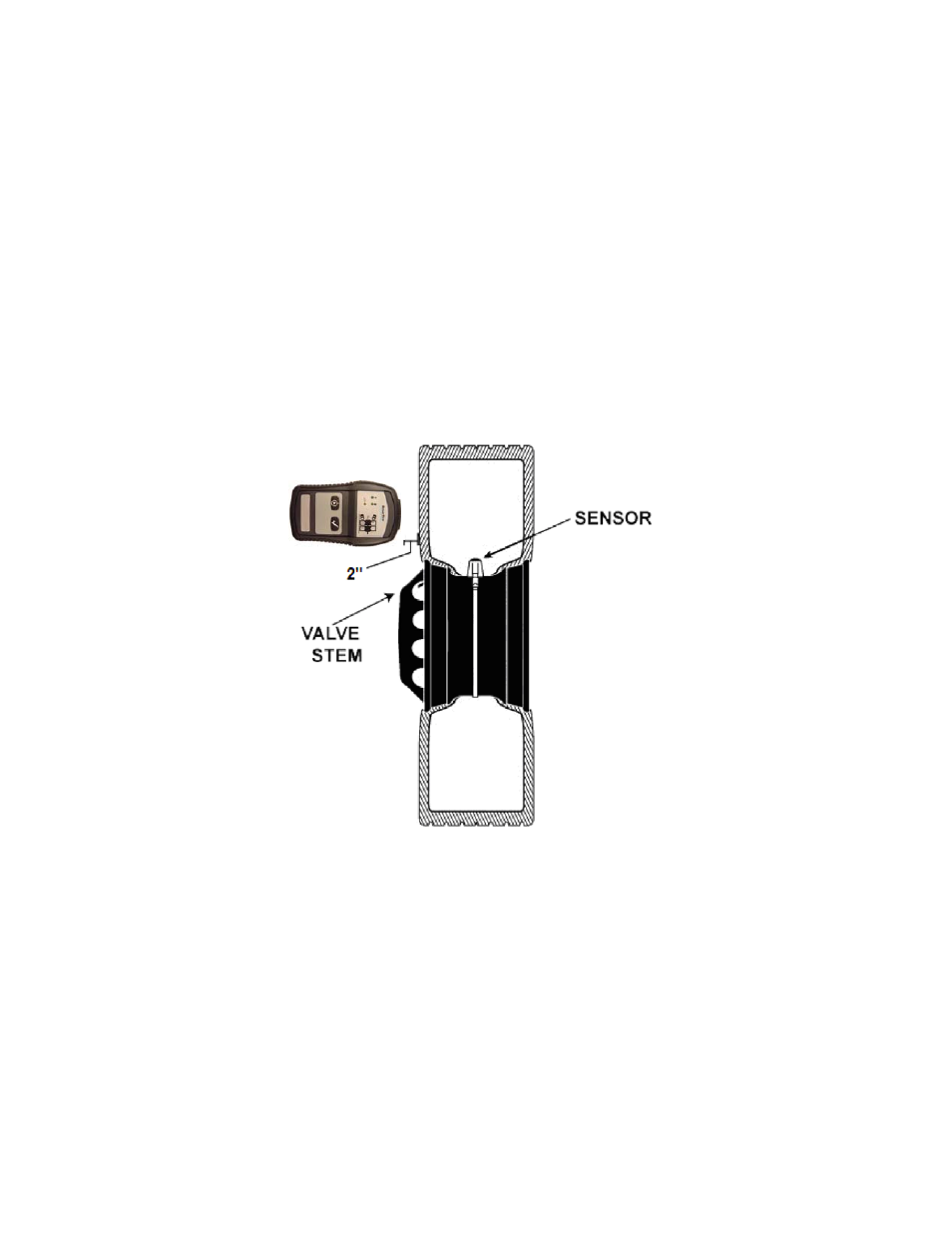

LF tool is very easy to use. Simply hold it approximately 2 inches (5 cm) away from
the tire’s surface positioned at the center of the tire’s sidewall at the location of the valve stem
(SmarTire
™
sensors should be installed at the valve and their location should also be indicated by a
rim mounted label). Press and release the initiate/learn button (a single beep will be heard) and
hold the tool in place for 5 seconds until 4 quick beeps are heard to ensure the wireless signals
emitted from the tool reached the sensor.
