Bendix Commercial Vehicle Systems ATR-2 ANTILOCK TRACTION VALVE 6/04 - Manual (Page 11)

11

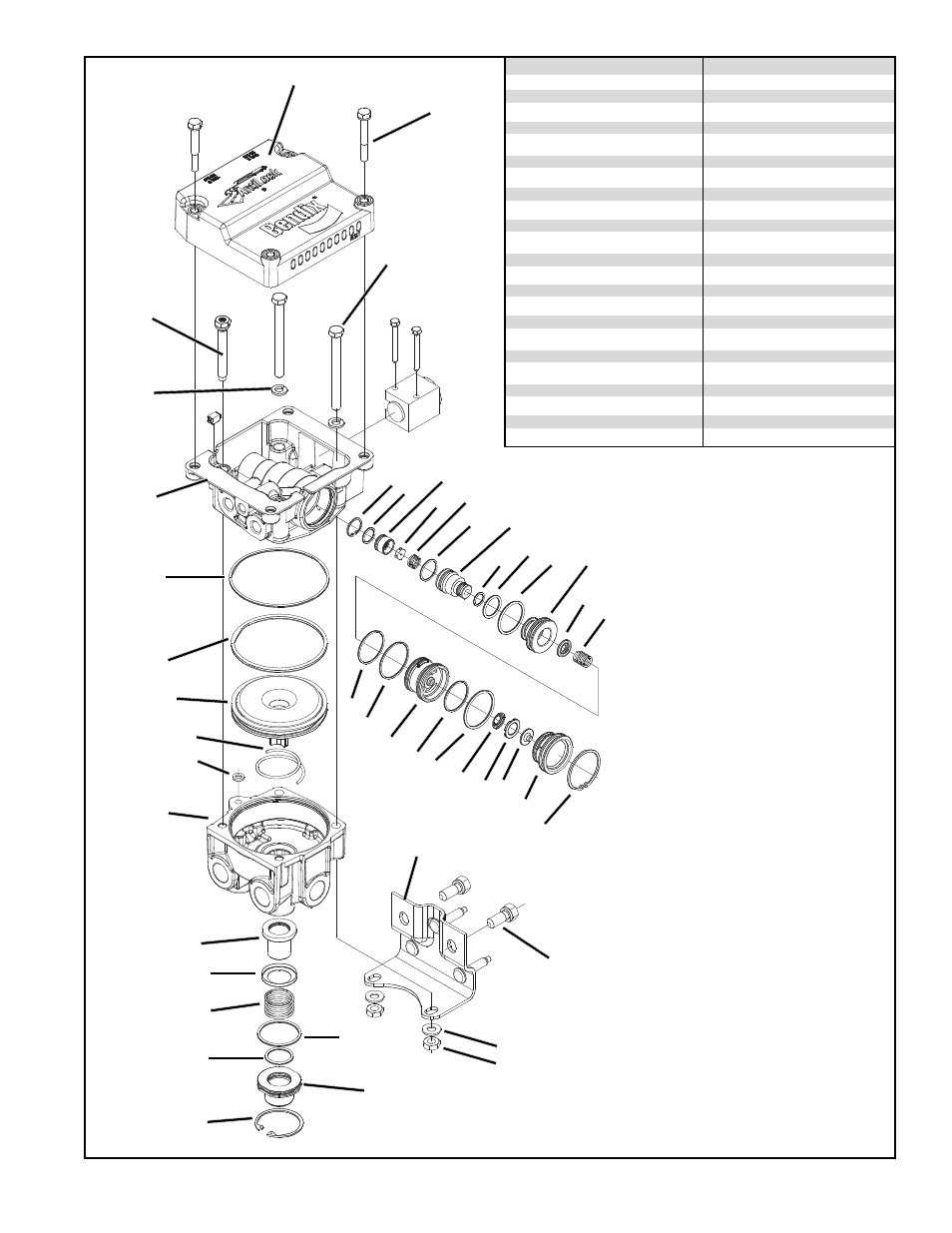

FIGURE 13 - AntiLock Traction Assembly Exploded View
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17 18
19
20
21
22
23
24 25
26
27
28
29
30
31
32
33 34
35
36
37
38
40
41
42
43
44
*Item included in maintenance kit piece number 109359
45
Key Description Qty.
1 Body 1
2 Cover 2
3* Retaining Ring 1
4* Exhaust Cover 1
5* O-Ring 1
6* O-Ring 1
7* Valve Spring 1
8* Valve Retainer 1
9* Inlet/Exhaust Valve 1
10 Long Cap Screw 2
11* O-Ring 1
12 Relay Piston 1
13* O-Ring 1
14 Relay Piston Spring (if used) 1
15* Retaining Ring 1
16 Check Valve Seat 1
17* Check Valve 1
18 Valve Guide 1
19* Spring 1
20* O-Ring 1
21* O-Ring 1
22* Spring 1
23 Cage 1
Key Description Qty.
24 Proportioning Piston 1
25* O-Ring 1
26* O-Ring 1
27* O-Ring 1
28 Blend Back Piston 1
29* O-Ring 1
30* Retaining Ring 1
31* O-Ring 1
32 Valve Seat 1
33* Valve 1
34* Spring 1
35* Sealing Ring 1
36 Inlet Seat 1
37* O-Ring 1
38 Cap Screw 4
39 Controller 1
40 Short Cap Screw 2
41 Bracket 1
42 Cap Screw 2
43 Nut 2
44* O-Ring 1
45 Washer 2
46 Washer 2
46
39
