21

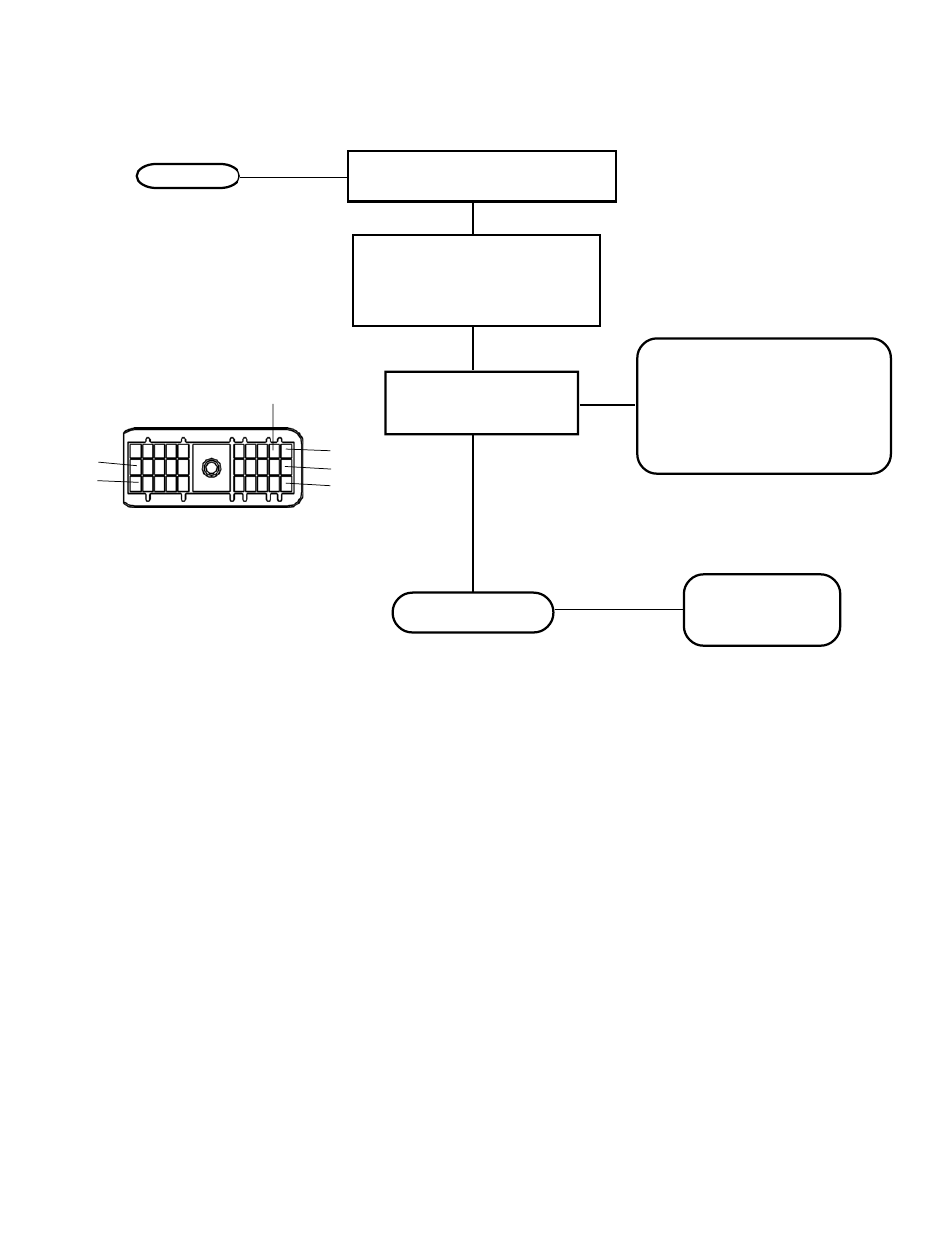

SECTION V - TESTING FOR POWER TO THE EC-16 ™ CONTROLLER
VOLTAGE SAME AS BATTERY
VOLTAGE. MUST BE
BETWEEN 11 AND 17 VOLTS.
NO
YES
RECONNECT CONNECTOR TO EC-16 ™
CONTROLLER. CHECK THE VEHICLE
WIRING FOR CONTINUITY. REFER TO
THE VEHICLE SERVICE MANUAL AND
CHECK THE BATTERY VOLTAGE.
REPAIR OR REPLACE WIRING AS
NECESSARY AND RETEST
REPEAT THE
“INITIAL START-UP
PROCEDURE”
START HERE
TURN IGNITION OFF, DISCONNECT 30 PIN
CONNECTOR FROM EC-16 ™ CONTROLLER
REPLACE EC-16 ™
CONTROLLER
A1
A2
A3
K2
K3
30 PIN CONNECTOR
B1
TURN IGNITION ON AND MEASURE
VOLTAGE BETWEEN BATTERY PINS B1,
K2, K3 AND GROUND PINS A1, A2, A3
ON WIRE HARNESS CONNECTOR
