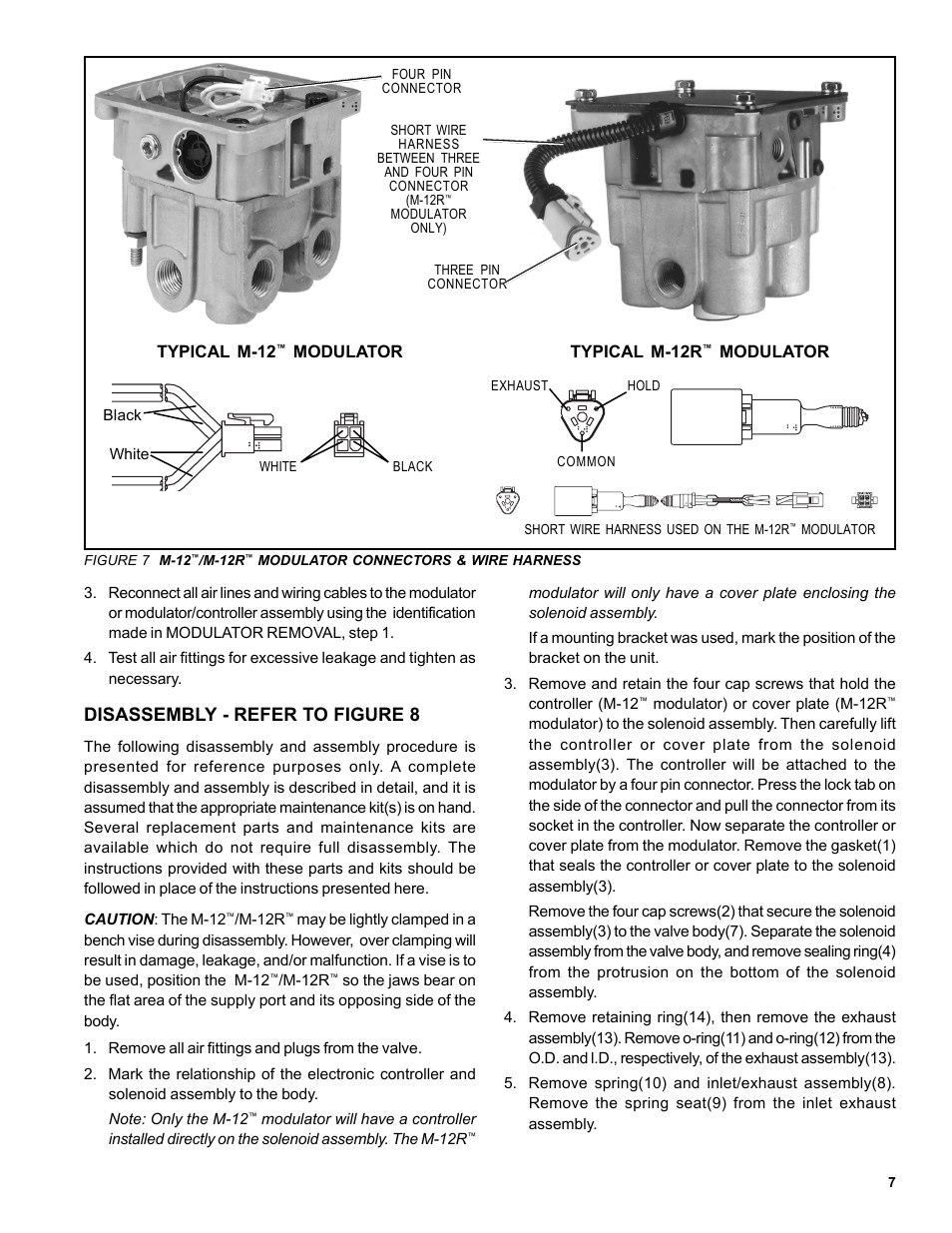

Disassembly - refer to figure 8 – Bendix Commercial Vehicle Systems M-12R ANTILOCK MODULATOR User Manual
Page 7
