8

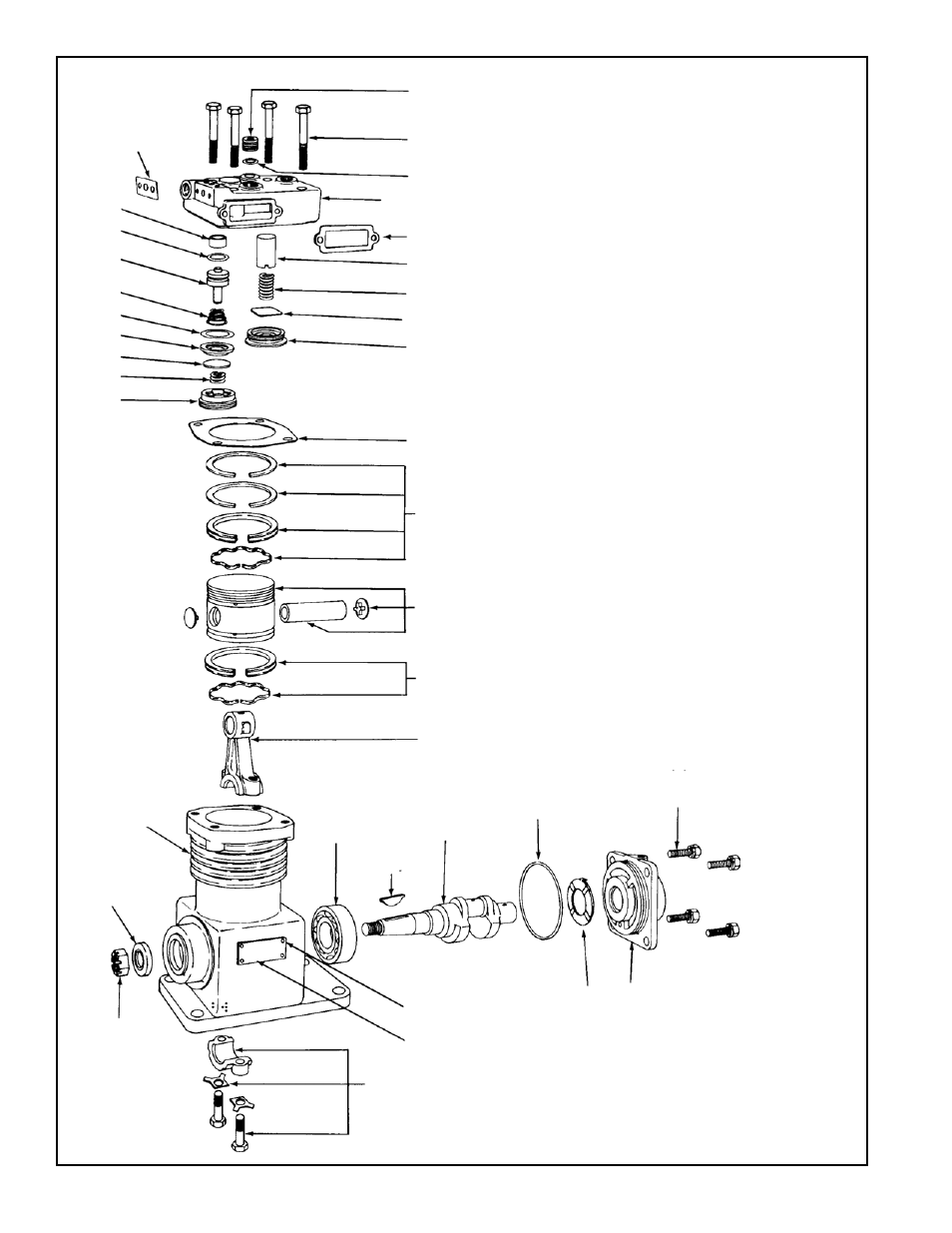

CRANKCASE
CYLINDER HEAD ASSY.
11
OIL SEAL
NO. DESCRIPTION
Cylinder Head Assembly
1 Governor Gasket
2 Unloader Bushing
3 O-Ring
4 Unloader Piston
5 Unloader Spring
6 Inlet Valve Gasket
7 Inlet Valve Seat
8 Inlet Valve
9 Inlet Valve Spring
10 Inlet Valve Stop
11 Unloader Piston Stop
12 Hex Head Screws
13 O-Ring
14 Inlet Strainer Gasket
15 Discharge Valve Stop
16 Discharge Valve Spring
17 Discharge Valve
18 Discharge Valve Seat
19 Cylinder Head Gasket
20 Piston Ring Set (STD)
#1 Piston Ring
#2 Piston Ring
Piston Ring Oil
Expander Ring
21 Piston
Wrist Pin Plug
Wrist Pin
22 Connecting Rod
Connecting Rod Cap
Lockwasher
Connecting Rod Bolt
23 O-Ring
24 Thrust Washer
25 End Cover Assembly
12
13
14
15
16
17
18
2
3
4
5
6
7
8
9
10
1
19
20
21
20
22
22
23
24
25
CRANKSHAFT
NUT
NAME PLATE
DRIVE SCREWS
FRONT BALL
BEARING
CRANKSHAFT
KEY
CRANKSHAFT
5/16” MACH.SCREW WITH LOCKWASHER
NOTE: SOME APPLICATIONS USE
FRONT AND REAR REF.
SOME FLANGE MOUNTS
WITHOUT BALL BEARINGS.
