Job Setup
many steel marbles can drive the sheet too hard
and causing feeding problems.
10. Place register holddowns in proper locations
for the sheet width being fed. Note that for
11x17 sheets being fed in the 11 inch width,
place a register holddown between the LH see-
thru guide and the vacuum wheel to keep air
from cupping the sheet and causing stumbling.
Note that the register holddown with the scale is
always located in the center of the register in
front of the vacuum. Be careful when placing the
holddown on the right hand edge of the sheet to
angle the holddown slightly to prevent the right
hand edge from curling up inside and stumbling.
11. Set the Baumsets by inserting strips of paper of
the job that is being run. Only insert the
thickness that corresponds to the tailing or
minimum thickness that the roller must drive
without loosing control of the paper. You need to
refer to your hand-folded sample to follow the

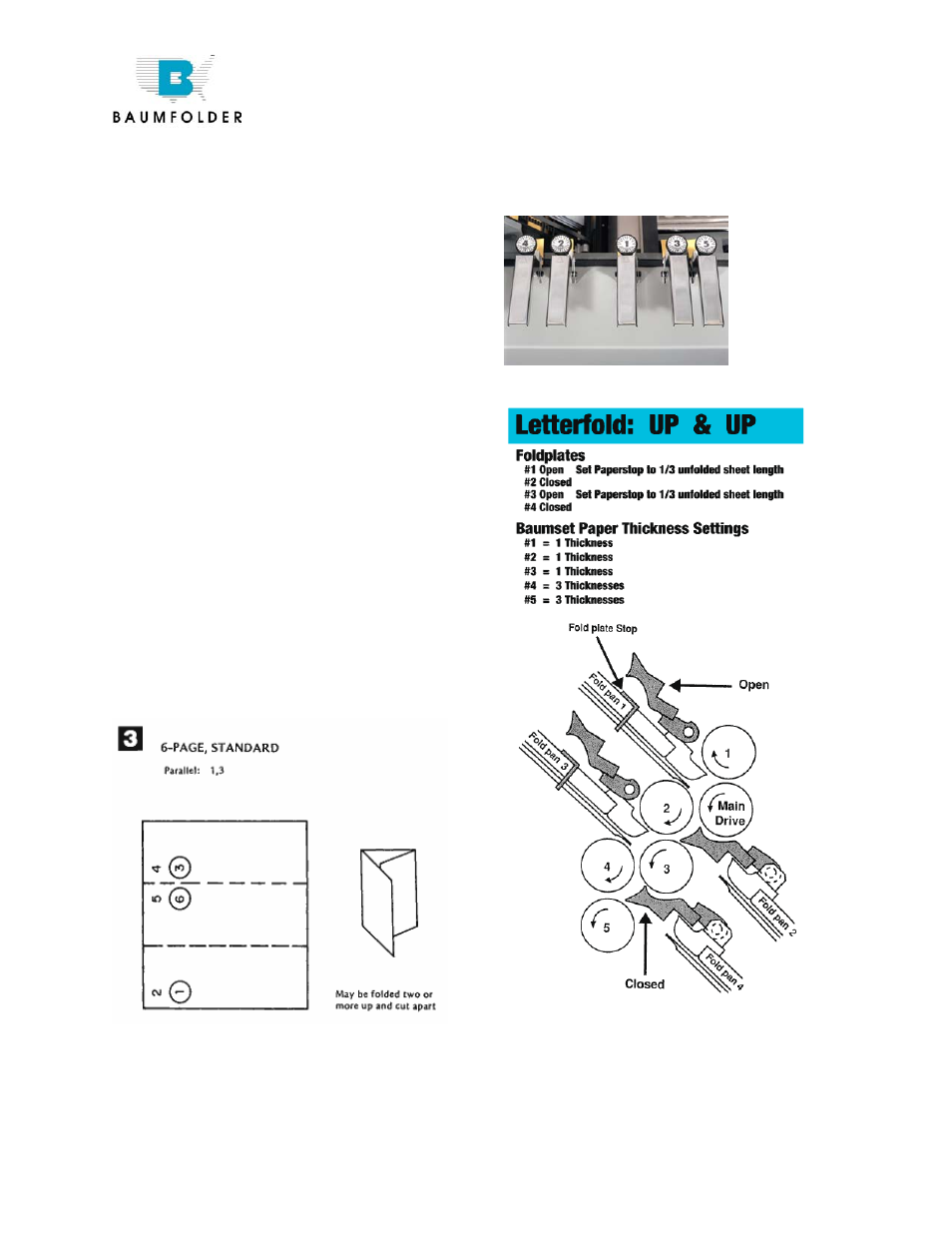

paper path See fig 5. Refer also to the example
fold given in Fig. 6 that shows a cut-away
section of the folder and notes the proper
foldplate and Baumset settings for the imposition
shown.
Fig. 5
