PAGE 7 TP10289-3

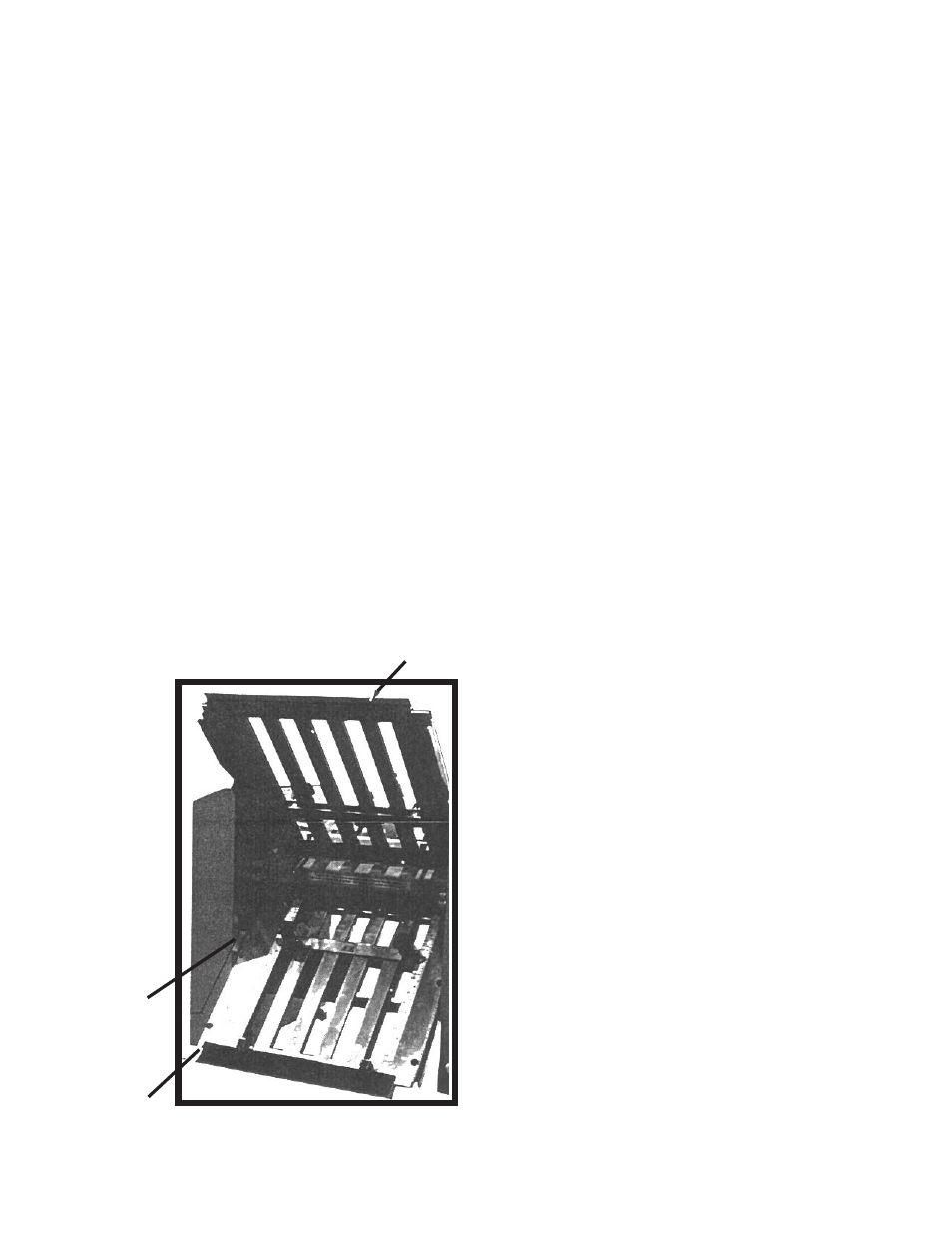

Figure 4.7-1
5.0 ELECTRICAL ACCESS
WARNING
Unplug the AC power cord before attempting any
electrical repair.
The motor speed control and counter control are
located under the left-hand side cover. The handwheel
must be removed for access to these controls.
The cover can be removed by taking out the four
screws located on the inside of the frame.
6.0 SETUP
6.1 Setting The Controls
The operator controls are conveniently located on a
control panel on the left-hand side of the 714XLT.
These controls consist of an On/Off power switch,
which is an overload reset, a speed control potentiometer,
a pump On/Off switch, and a counter with zero reset.
Set these initially at:
A) Power Switch Off position
B) Speed Control “0” position
C) Pump Switch Off position
D) Counter “0” position
6.2 Determining Paper Size and Type of Fold
The next step is to determine the paper size and type
of fold to be made, following the steps below:
A) Measure a sample sheet of the job to be run to
determine its size. Retain this information for later use.
B) Refer to the printed chart on the stacker tray (See
Figure 6.2-1) and locate the type of fold that you want to
make. (Example: letter fold)
C) Locate on the chart the columns corresponding
to the sheet size measured in Step A. (Example: 8 1/
2x11)
4.7 Fold Plate Installation
WARNING
Unplug the AC power cord when installing or
removing fold plates.
The fold plates are marked #1 and #2 and are not
interchangeable. The #1 fold plate is installed in the top
position, the #2 fold plate in the lower position.
Each fold plate has an open end which faces toward
the fold rolls.
To install the fold plates, pivot the fold plate hold-
downs out of the way and slide the fold plate in position
so that the slots in the leading edge of the fold plate
engage the two locating pins in the side frames.
(See
Figure 4.7-1)
The center notches should seat on the second set of
locating pins. Pivot the fold plate hold-downs back into
position to secure the fold plates.
Turn the handwheel to be sure that the fold plates are
properly installed and not rubbing on the fold rolls.
#1 Fold Pan
Hold-
down
