Programmable, Control panel / operating elements – Baumfolder BaumCut 31.5 (For serials 78N1001 thru 700N100) User Manual
Page 4
E - 4
1 2 3
4 5 6
7 8 9
C 0
x
D
i

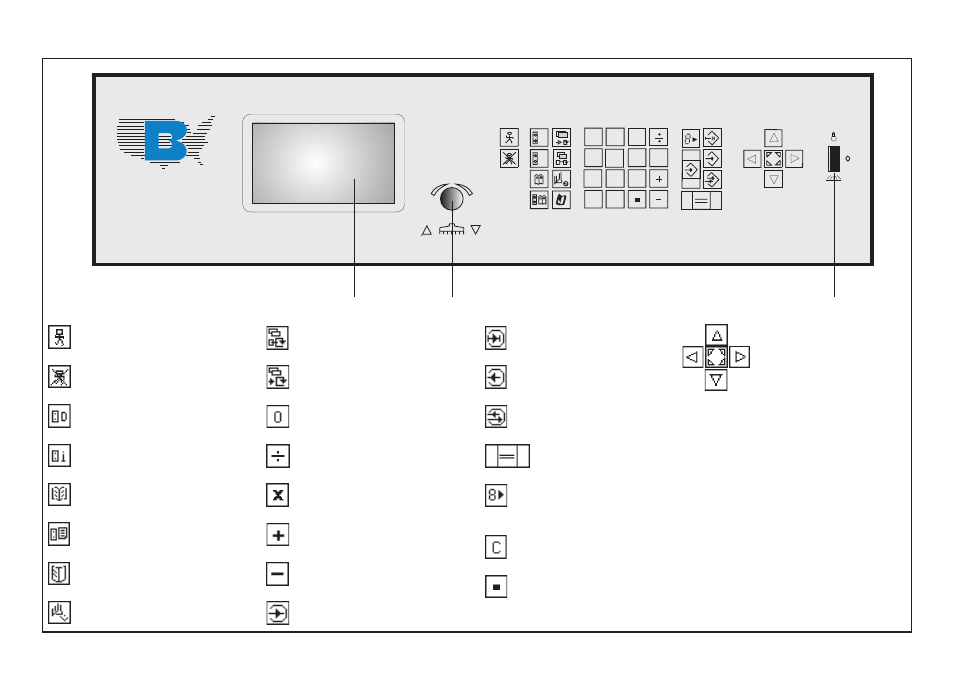

PROGRAMMABLE
Control Panel / Operating Elements
Automatic ON
Automatic OFF
Program Data
Program Information
Function Survey (Main Menu)
Program Directory
Program Selection
Machine Parameter
Insert; subsequent insertion of data
Delete
Correction (of stored data)
Equal key
Transfer key: Transfer backgauge
pos. into input field
Clear input field
Decimal point
Auxiliary Program Functions
Additional Functions
Numerical keyboard
Division
Multiplication
Addition
Subtraction
Enter
Cursor
(4 keys: right, left, up, down;
Center key: Additional cursor
motion; cursor in basic
position
1
Display
2
Turning knob for backgauge move-
ment
(Electronic hand wheel)
3
Switch for optical cutting line
indicator and table light ON
2
1
3
