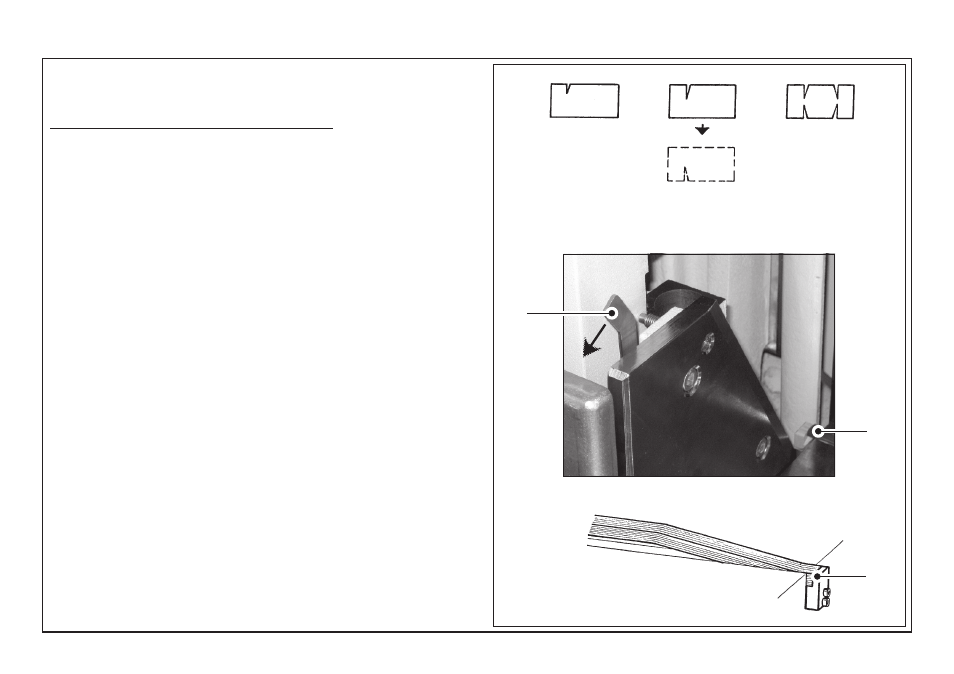

6.0 Knife change
Changing of Cutting Stick
The BAUM sinus cutting sticks are made of tough plastic material.
Through its wavy shape it will stay in the table groove without glue or screw.
By turning each cutting stick can be used four times.
Removing of cutting stick
1.
Pull the lever (A) on the left gauge to the front
< cutting stick will be lifted on the left (B) >
2.
Remove cutting stick from left to right.
Clean groove thoroughly!
Inserting of cutting stick
1.
Push end of cutting stick against right side catch (C) and into groove.
2.
Following its wavy shape continue pressing stick firmly into groove from
right to left.
