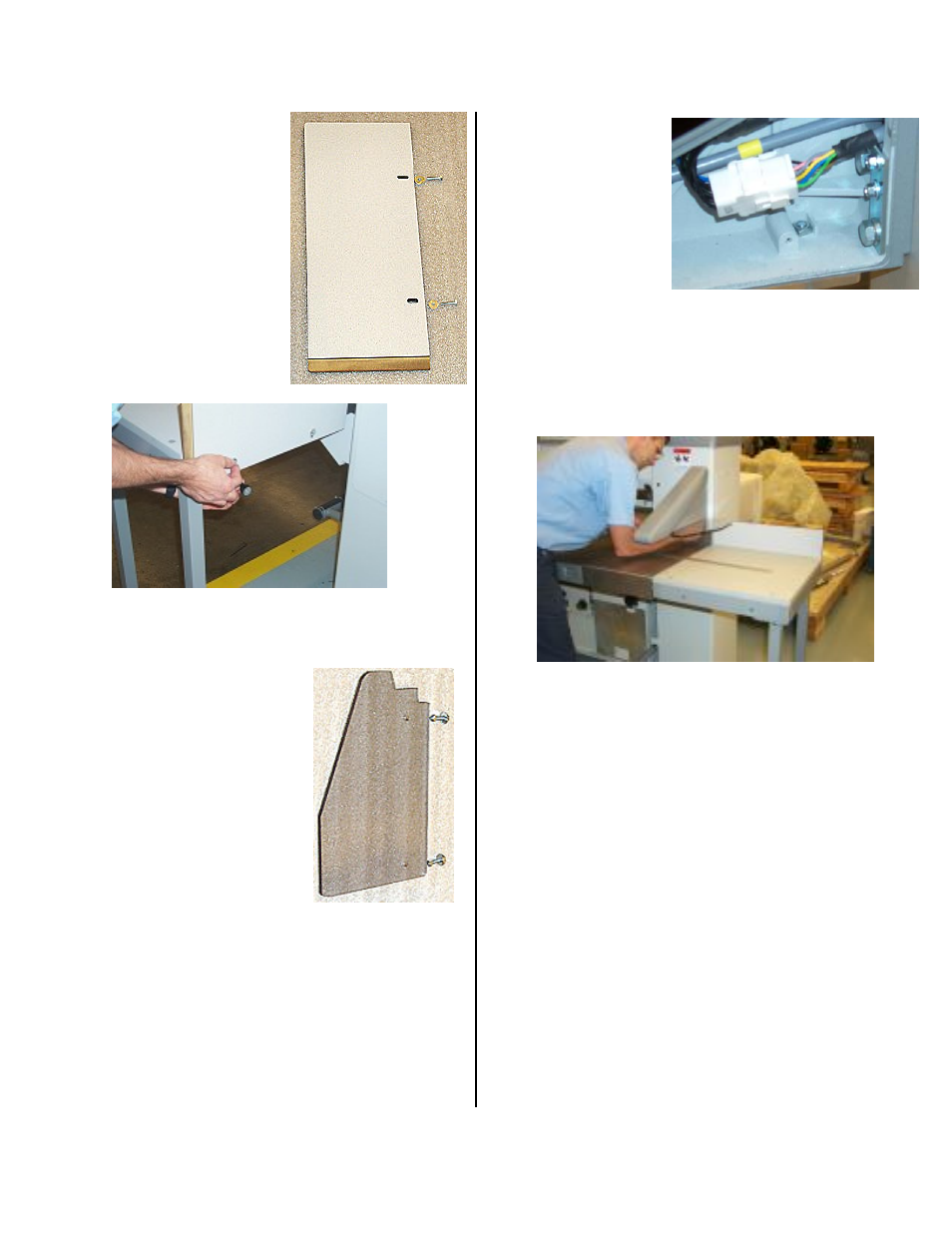

Install back plate
on side table using
parts shown. Remove the
triangular cover
on the infrared
side beam. Install
the (2) square
nuts as shown.
Install the plastic
arm shield guards
that mount
underneath the
existing infrared
light beams. This is
a mandatory safety
requirement! This
piece prevents the
operator from being
able to reach in from the side and
come in contact with the clamp and
knife. Peel off the protective film
covering on the part before installing.
Use the hardware shown. Note that
there is to be (2) square nuts and (2)
screws for each arm shield.
Fasten the plastic arm shield to the
underneath side using the (2) screws.
The holes for the screws are already
in the housing.
Reinstall the triangular side covers on
the infrared light beams.
