Cable connections
The loudspeakers can be used with
Bang & Olufsen audio, video and
link systems. They may also be
connected to non-Bang & Olufsen
systems.
For specific information about the
sockets on your system, refer to
the Guide enclosed with the system.

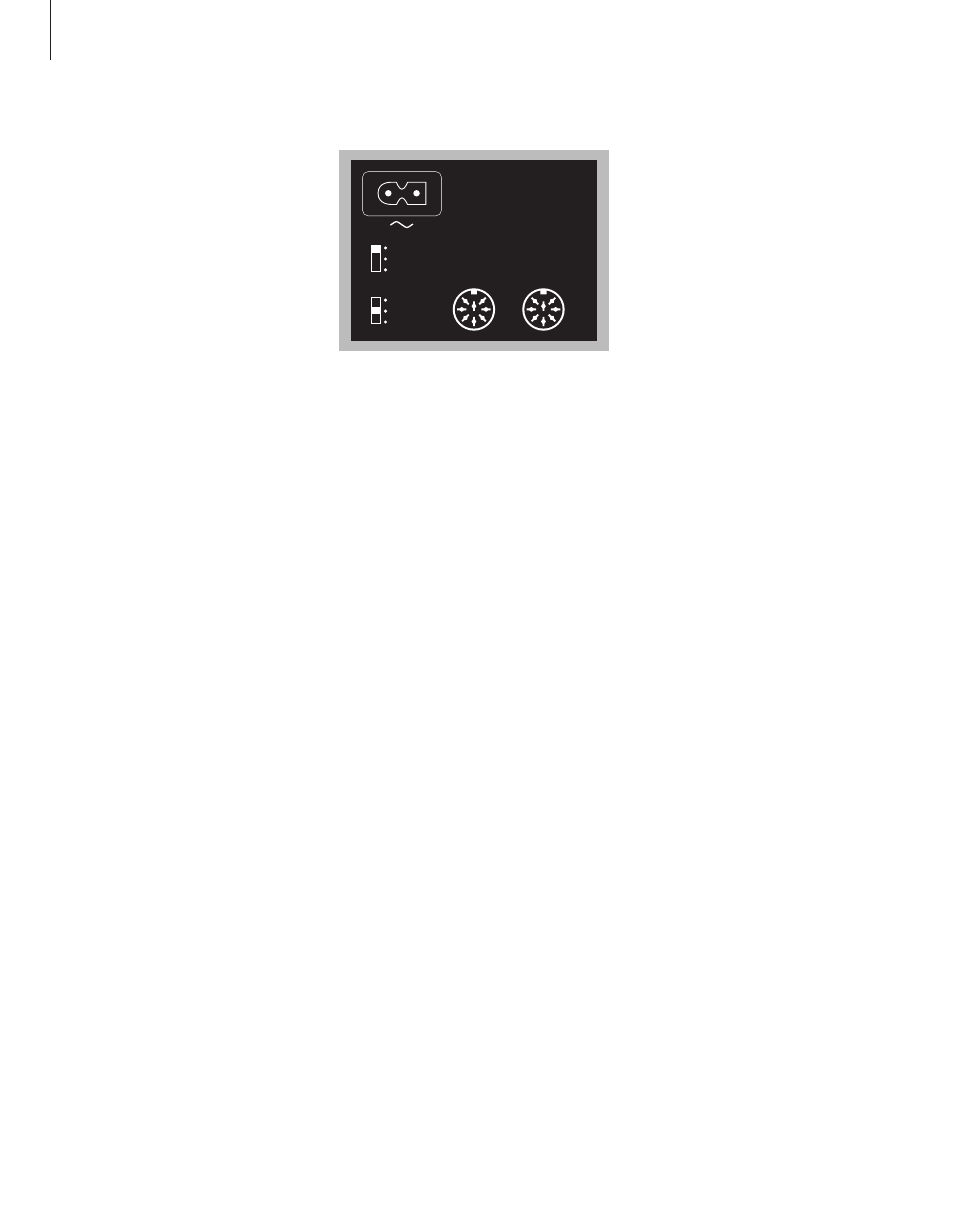

Connection panel
FREE–WALL–CORNER switch
This switch has three settings. Which setting
to use depends on the placement of the
loud speakers. This is explained in ‘Adapt the
loud speakers to your room’ (pp. 8–9).
LINE–RIGHT–LEFT switch
This switch has three settings. Set the switch
to RIGHT or LEFT, when connecting the
loud speakers to a Bang &Olufsen system.
Set the switch to LINE when connecting the
loud speakers to a non-Bang & Olufsen system.
POWER LINK sockets
These sockets are used for connection to a
Bang & Olufsen system. However, if the switch
marked LINE–RIGHT–LEFT is set to LINE, you may
use one of the Power Link sockets to connect
the loudspeaker to a non-Bang & Olufsen system.
~
Socket for connection to the mains supply.
Connection to Bang & Olufsen systems
Use Bang & Olufsen Power Link cables to
connect the loudspeakers to your system.
Set the LINE–RIGHT–LEFT switch to RIGHT
and LEFT (the right and left sound channel),
respectively.
Connection to non-Bang & Olufsen systems
Use a special adapter with an ordinary phono/
RCA plug in one end, and a DIN-plug in the
other (‘Cable for line signal’ – optional accessory,
available from your Bang & Olufsen retailer).
Set the LINE–RIGHT–LEFT switch to LINE.
The supplied plug and mains cord are specially
designed for the product. Do not change the
plug and if the mains cord is damaged, you
must buy a new one from your Bang &
Olufsen retailer.
POWER LINK
FREE
WALL
CORNER
LINE
RIGHT
LEFT
6
The sockets and the two switches are located
on the rear of the loudspeaker. Remove the
cover to get access to the sockets and switches.
