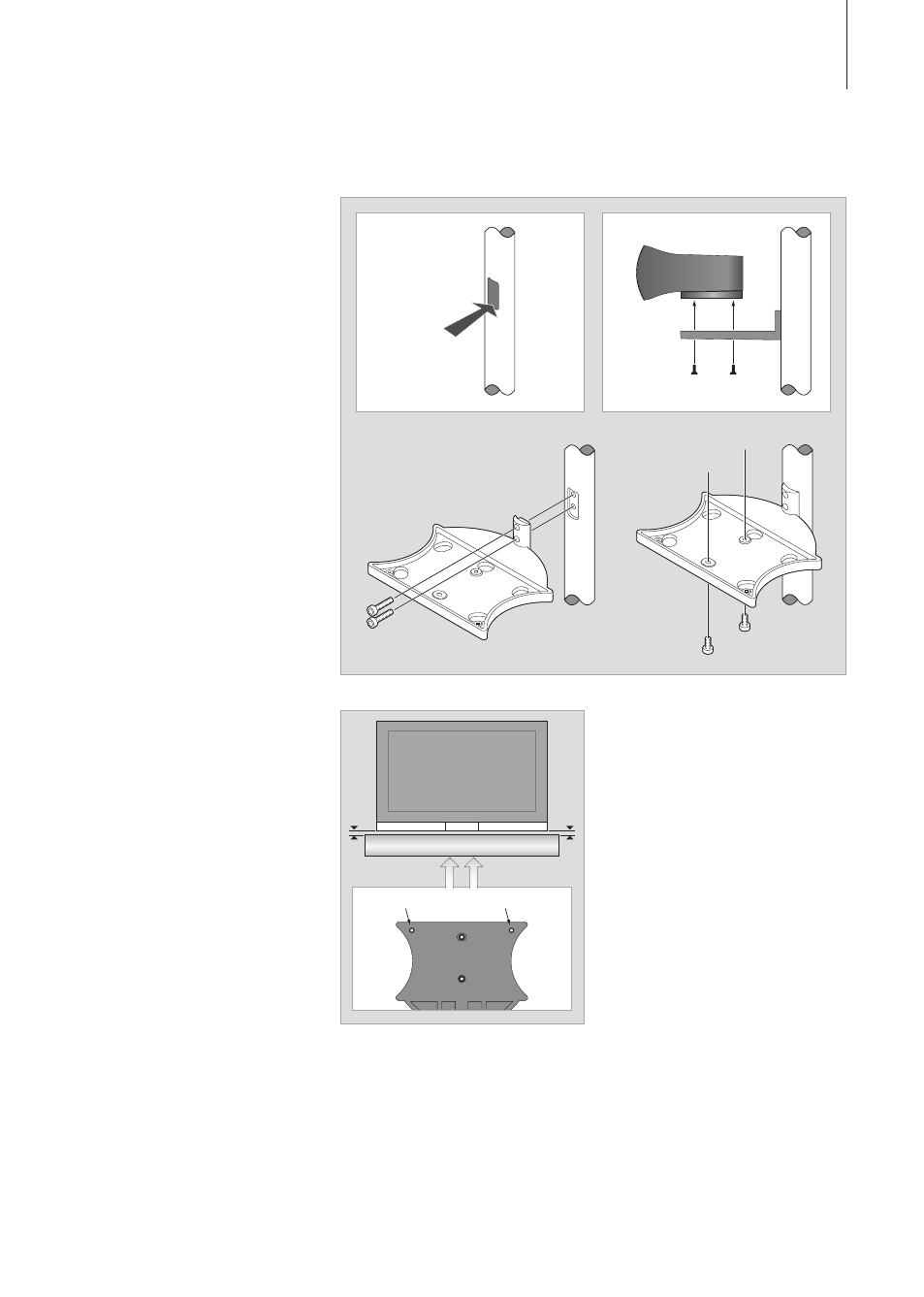

Here is shown how to fasten
the loudspeaker with a ‘type 1
bracket’ to a Bang & Olufsen

‘single-column’ stand (or wall

bracket). Use the same
procedure if you wish to fasten
the loudspeaker to a Bang &
Olufsen ‘double-column’ Stand

– with a ‘type 2 bracket’.

a Remove the small cover (if any)

on the stand. Press the cover as
shown, and it will come loose.

b Fasten the bracket to the stand or

wall bracket. Use the two longest
screws (M5 × 25 mm) – four
screws for a ‘type 2 bracket’.

c Fasten the loudspeaker to the

bracket. Use the two shortest
screws (M5 × 8 mm). However, do
not fully tighten the screws before
you have made the adjustments
mentioned below (

d).

Adjustments: First, make sure that

the television is adjusted to a level

position on its stand or wall bracket!

Then use the two screws (

d) to

adjust the loudspeaker so that it is
parallel to the lower edge of the
television. Align the loudspeaker
front with the television and tighten
the two screws (

c).

NOTE! BeoVision 7 and its
accessories are not available on all
markets.
