POWER LINK and LINE 1–2
switch
Connect to a Bang & Olufsen
system:
You have two options for
connecting your loudspeakers to
your Bang & Olufsen system:
1) Run a Power Link cable from
your Bang & Olufsen system
directly to each loudspeaker.
You can use either of the two
sockets.
2) Run a Power Link cable from
your Bang & Olufsen system to
the first loudspeaker, and then
run another Power Link cable to
the next loudspeaker.
Choose the option that suits your
setup best. Set the switch to
POWER LINK.
Connect to a non-Bang &
Olufsen system:
Use a special cable with an
ordinary stereo mini jack plug in
one end, and an RJ45 PL plug in
the other (optional accessory*
1 ).
Set the switch to LINE 1 or LINE 2:
– Use LINE 1 as default setting.
– Use LINE 2 if your loudspeaker
does not switch off or if the
volume is too loud. The sound
volume will be reduced.
Loudspeakers must use the
same line
setting.
LEFT/RIGHT switch
This switch sets the loudspeaker to
play either the left or the right
sound channel on a Bang &
Olufsen system.
Set the switch to LEFT or RIGHT,
respectively, when connecting the
loudspeaker using any of the
sockets marked POWER LINK.
Connections and settings
The loudspeakers can be used
with Bang & Olufsen audio,
video and link systems. They
may also be used with non-
Bang & Olufsen systems.
The loudspeakers are designed
for wall placement. The most
natural sound is obtained if
they are set up as explained on
these pages.

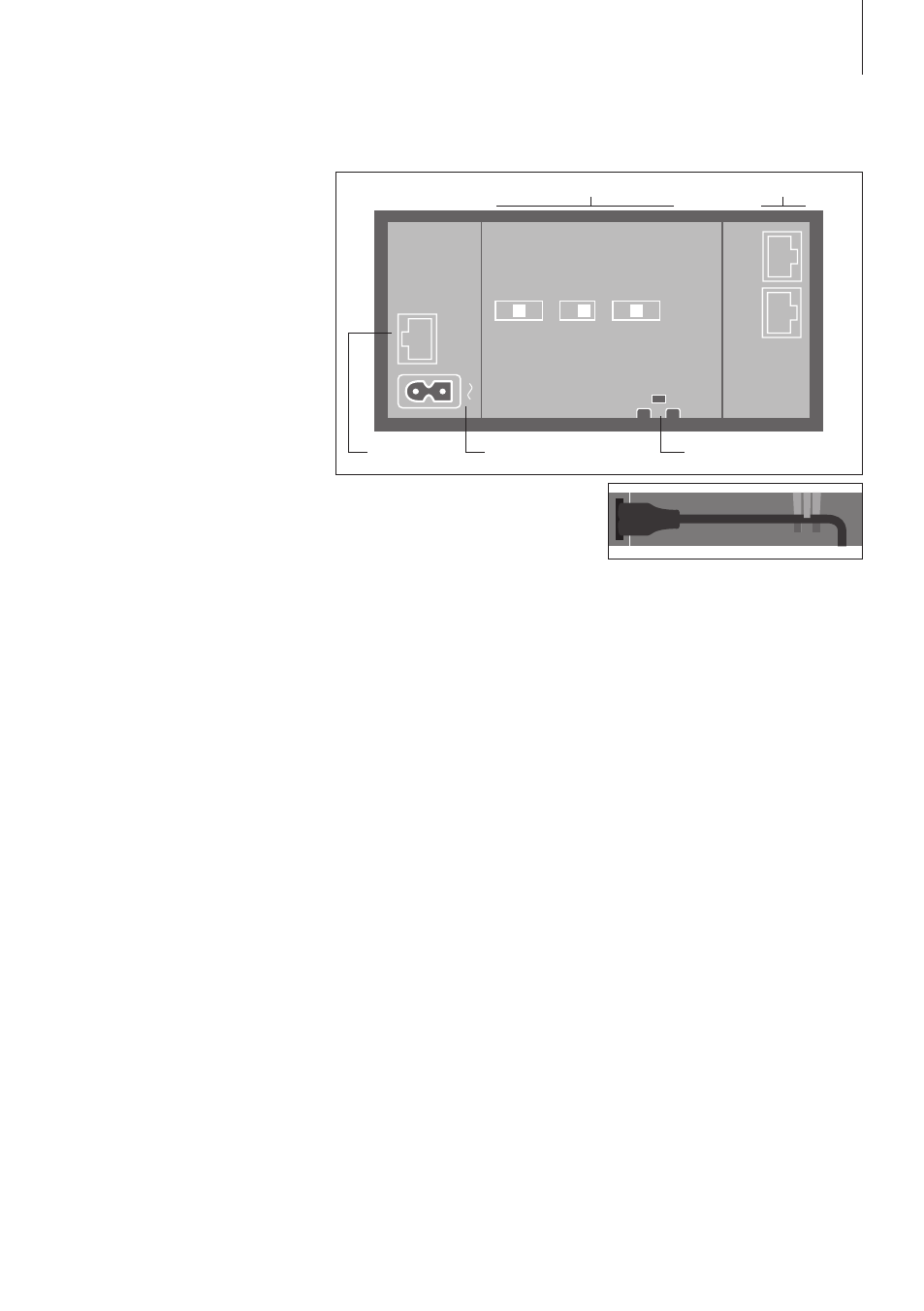

You can access to the socket
panel from the rear part of the
loudspeaker.
POWER LINK
LEFT RIGHT FRE
E
WALL CORNER POWER LIN
K
LINE
1
LINE
2
5
Mains supply
Power Link sockets Switches
For service
use only
Mains cord bracket
For safety reasons you must fasten
the mains cord behind the mains
cord bracket.
1 *Accessories are available from
your Bang & Olufsen retailer.
