Behringer Ultra-Curve Pro DEQ2496 - Manual (Page 4)

Page 4 of 7
Compare features. Compare prices.
Own ULTRACURVE.
Quite frankly, we believe that the DEQ2496
is the best multi-function processor value in the
pro audio industry. Why pay much more for a
status name?

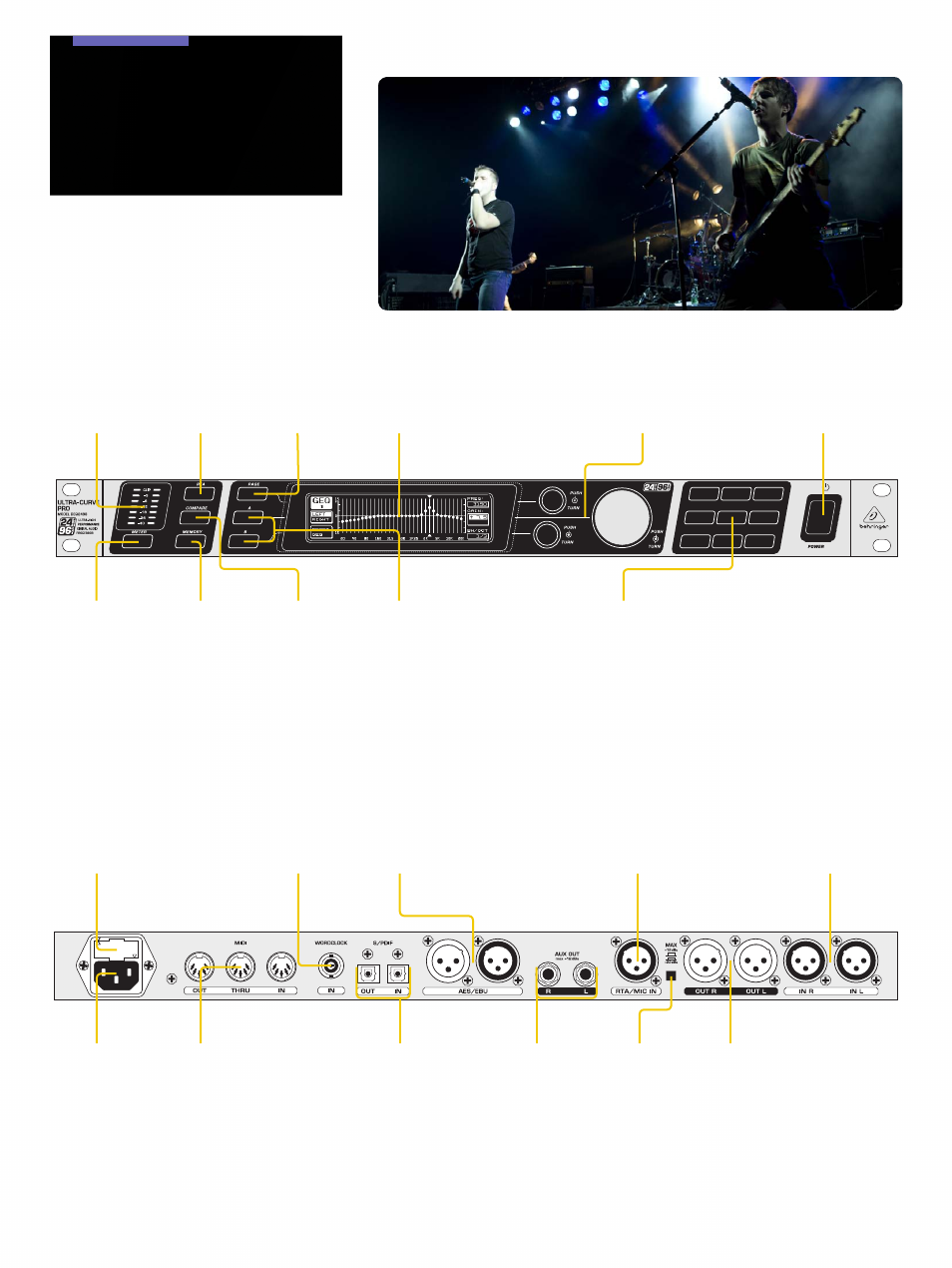

METER
and CLIP
LEDs
METER
menu
key
RTA (Real
Time
Analyzer)
selector
PAGE browses
pages within
a menu
High-
resolution
display
DATA WHEELS
are used to
select and edit
parameters in a
selected menu
MEMORY
where you can
save or recall
complete presets
or individual
modules from
one preset
COMPARE
either complete
presets or
individual
modules
A and B functions
depend on the
selected menu, and
are indicated in the
display
MENU
keys select
individual
menus
within
modules
POWER
switch
The FUSE HOLDER
holds the mains
fuse of the
DEQ2496. Blown
fuses must be
replaced by fuses
of the same type
and rating
Connect the
enclosed
power cord
to the mains
connection
AES/EBU
and S/PDIF
optical I/O
Stereo AUX
OUT taps the
audio signal
present at the
digital outputs
in analog form
Raises MAX level
present at the
MAIN inputs/
outputs from
+12 dBu to
+22 dBu
Balanced
XLR output
connectors
Balanced
XLR input
connectors
MIDI IN /
OUT / THRU
Synchronize
to external
equipment via
BNC coaxial
WORDCLOCK
input
XLR AES/EBU
or S/PDIF
I/O
RTA/MIC IN for
realtime analyzer
or SPL meter has
+15V phantom
power supply for
condenser mics
ULTRA-CURVE PRO
DEQ2496
