Setup and Operation

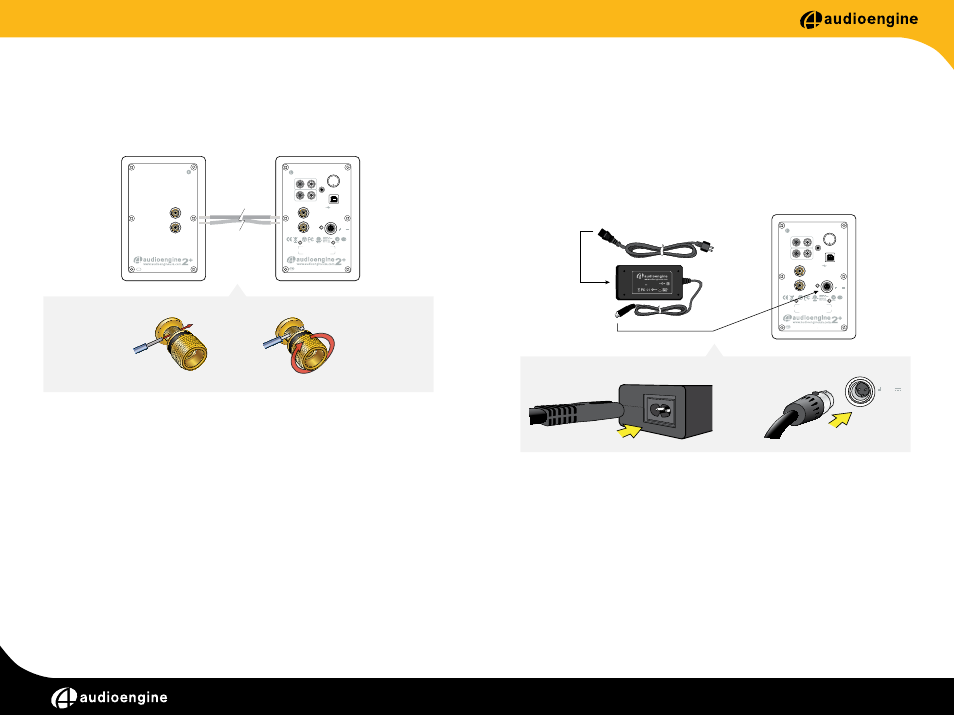

Step 1 - Connecting the speaker wire
Speaker wire connection
➊
V06
In from Left
Input
L R
Volume
Out to Right
USB Input
Power
Output
17.5V
Input
1.8A
Designed by Audioengine Made in China
➋
1. Use your thumb and finger to unscrew the connectors.
2. Insert each speaker wire into the holes on the side of
connectors.
3. Retighten the connectors with your fingers.
4. The bare portion of the wire should be secured firmly in each
connector.
Repeat the procedure to connect the other end of the speaker
wire to the other speaker. Check to make sure none of the
speaker wire strands have come in contact with a nearby
connector.
As the A2+ speakers have the power amplifiers built inside, do
not connect the speaker terminals to the speaker outputs of a
stereo receiver.
Step 2 - Connecting the Power Supply
Power cord connection
➊ ➋
Input
L R
Volume
Out to Right
USB Input
Power
Output
17.5V
Input
1.8A
Designed by Audioengine Made in China
Power
17.5V
1.8A
➊
➋
Assembled in China
100-240V~ 50/60Hz 1.8A 17.5V 2.0A ± INPUT: OUTPUT: GND + –
Verify that the volume/power switch on the rear panel of the left
speaker is in the OFF position by rotating it counterclockwise
until it clicks off.
1. Connect the cable from the power supply to the left speaker
rear panel.
2. Connect the power cable to the other end of the power
supply.
