Controls
Infra-red port
Point the infra-red port at the front of the Switch
iR directly
at the infra-red port of the transmitter or receiver, keeping
the Switch
iR within 30cm of the port.
Menu/On button
Turns on the Switch
iR. The display will initially show the
frequency screen:
<
>
Me
nu
OK
V
V
FREQUENCY
MHz
Fr
Display
Scroll buttons
Menu/On button
9V battery
tester
Infra-red port
+
_
OK button
FREQUENCY
MHz
Fr
body
Scroll buttons
Allow you to scroll through the menus, or the selections on
the frequency, audio level, and LF cut screens.
OK button
Confirms the current selection.
Power saving feature
The Switch
iR will switch off if no buttons are pressed within
30 seconds, to conserve battery life.
The Switch
iR will also switch off automatically if the menu
button is kept pressed for more than 50 seconds; for example
while the Switch
iR is in a pocket or bag.
Technical specification
Using SwitchiR
Full instructions for using Switch
iR with each of the products
in the 2040 Range are given in each of the product User
Manuals.
The following table summarises the Switch
iR functions, and
describes the additional functions included in Switch
iR .
Menu Description
Fr
Press OK to read the transmitter or receiver
frequency setting. Press OK again followed by a
or v to select a new frequency, and press OK to
transmit it to the unit.
AF
Press OK to read the receiver or transmitter
audio level. Press OK again followed by a or
v to select a new audio level and press OK to
transmit it to the unit.
LF Cut
Press OK to read the transmitter’s LF cut setting.
Press OK again followed by a or v to switch
the setting between on or off and press OK to
transmit it to the unit.
Batt
Press OK to read the transmitter or receiver
battery level. For receivers the receiver battery
level alternates with a transmitter battery status
indicator: H (high), L (low), or F (fail).
Int Batt
Displays the battery voltage of the SwitchiR
internal battery. If this falls below 5.00V the
internal battery should be replaced.
9V Batt
Allows you to test a 9V 6LR61 type battery by
holding it against the two metal terminals on the
side of the SwitchiR. A reverse polarity warning
is displayed if the battery is connected the wrong
way round.
Sn
Press OK to read the serial number of a receiver
or transmitter and display it on the display.
The serial number consists of a six-digit prefix
followed by a two-digit suffix, and these are
flashed alternately on the display.
User ID
Displays the unit’s user ID. You can edit the user
ID using the AudiR™ application.
iR disable Press OK to disable the infra-red port on a
transmitter or receiver until power is disconnected
and reapplied.
Off
Press OK to turn a transmitter off. Not available
for receivers.
User Guide
Switch
iR
Infra-red controller

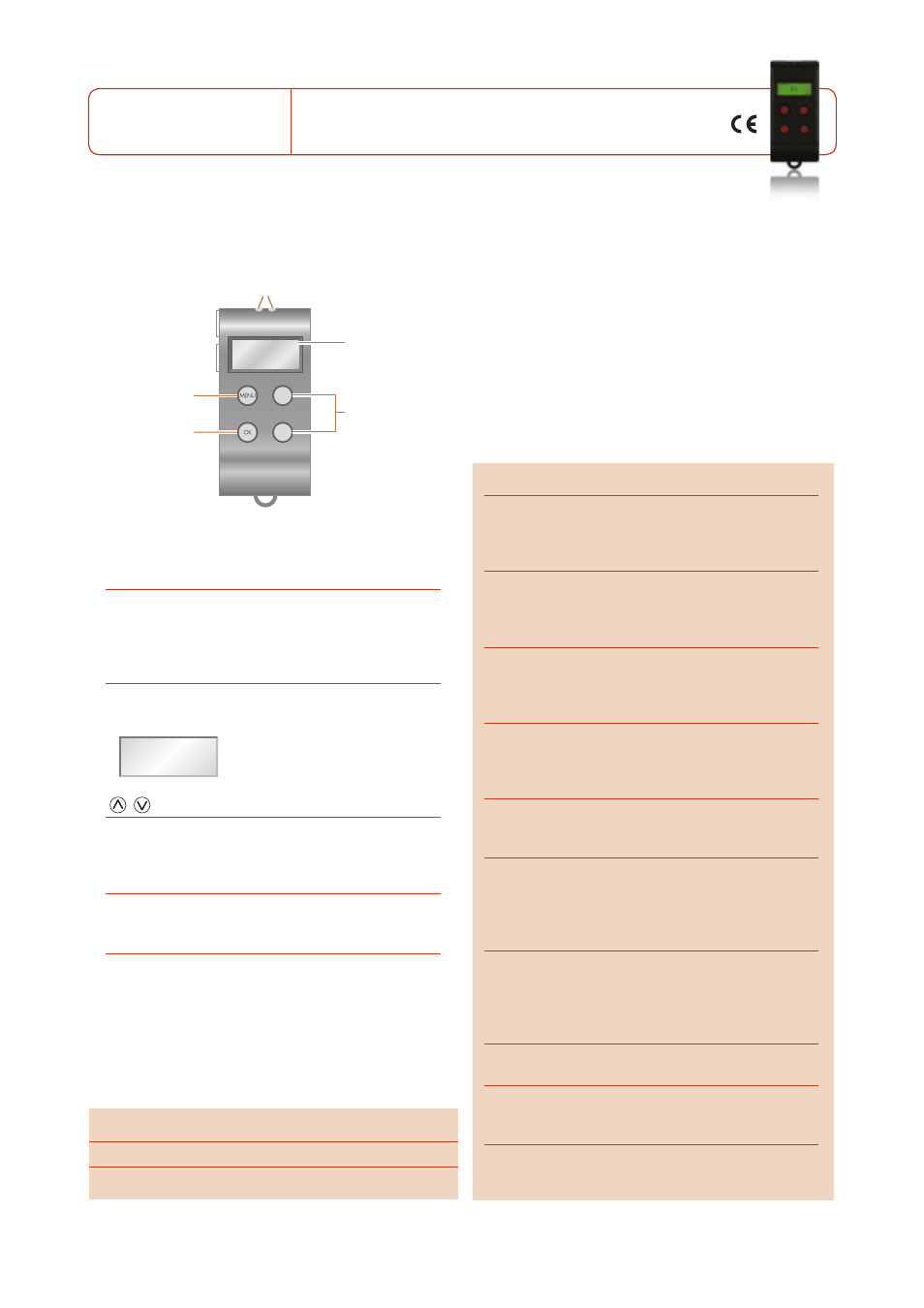

The SwitchiR is a compact custom-designed infra-red controller for use with the 2040 Range. It
provides functions to allow you to read the status of a device, or change its settings. In addition it
includes a convenient built-in 9V battery tester:
<
>
Me
nu
OK
V
V
FREQUENCY
MHz
Fr
Display
Scroll buttons
Menu/On button
9V battery
tester
Infra-red port
+
_
OK button
FREQUENCY
MHz
Fr
body
Size
65 x 30 x 11mm (17mm at battery end)
Weight
20g including battery
Battery type 6V PX28L Lithium or equivalent
For further information contact Audio Ltd or your local distributor
