3 AJA D10AD 10-bit Component/Composite to SDI Converter User Manual — Introduction
Introduction
The D10AD provides excellent quality 10-bit conversion of component or
composite analog video to SDI—with EDH. The D10AD accepts YPbPr (SMPTE,
EBU-N10), Betacam, or RGB component inputs and NTSC/PAL or YC (S-Video)
composite inputs. When using composite sources, the D10AD offers a 4-Line
Adaptive Comb Filter for high quality decoding. The comb filter can be switched to
2-line or notch modes for minimum delay requirements. NTSC/PAL configuration
is automatic. Video format, AGC, H/V blanking, and pedestal are all user
configurable via dipswitches.
Note: The D10AD requires a Time Base Correct source. Operation is not
recommended from VTRs, laser disks, etc., without Time Base Correction (TBC).
Features
• Excellent-Quality 10-bit Universal A/D Conversion
• Component, Composite or Y/C Analog Input
• 4-Line Adaptive Comb Filter
• Full 10-bit Data path, 2x Oversampling
• YPbPr, Betacam, or RGB Component Formats
• Composite NTSC or PAL
• AGC mode
• 4 SDI outputs with EDH
• Color Bar Generator
• External DIP switch user interface for configuration

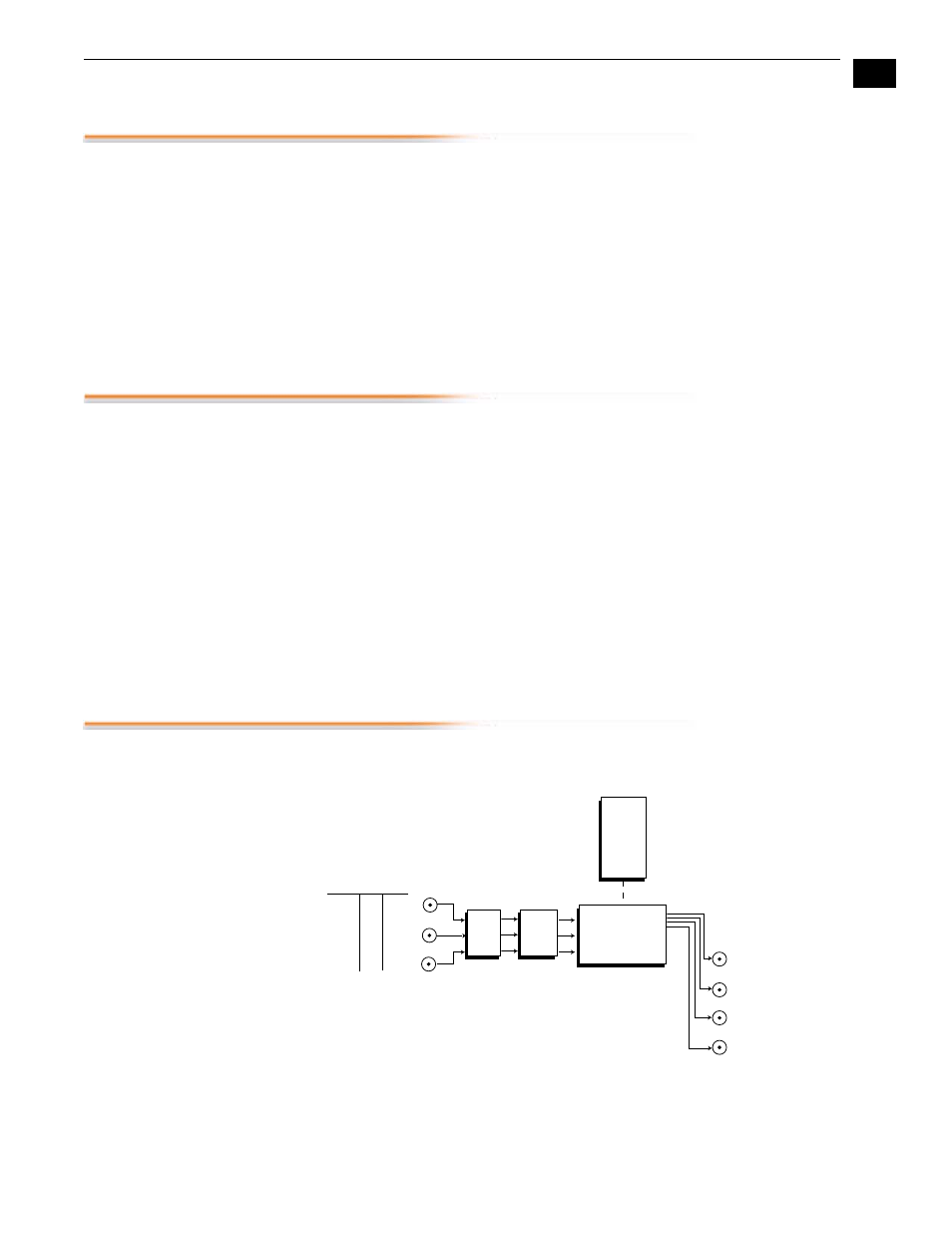

Block Diagram
D10AD 10-bit Analog Component and Composite to SDI Converter, Block
Diagram
DIP
Switch
User
Interface
for
Feature
Selection
10-bit A/D
Converter
Sync
Lock
Comb
Filter
Serial Video Out 1
Serial Video Out 2
Serial Video Out 3
Serial Video Out 4
COMPONENT/COMPOSITE
INPUTS (selected by DIP switch)
COMP
C B
G
R
Y
Pb
Pr
