4

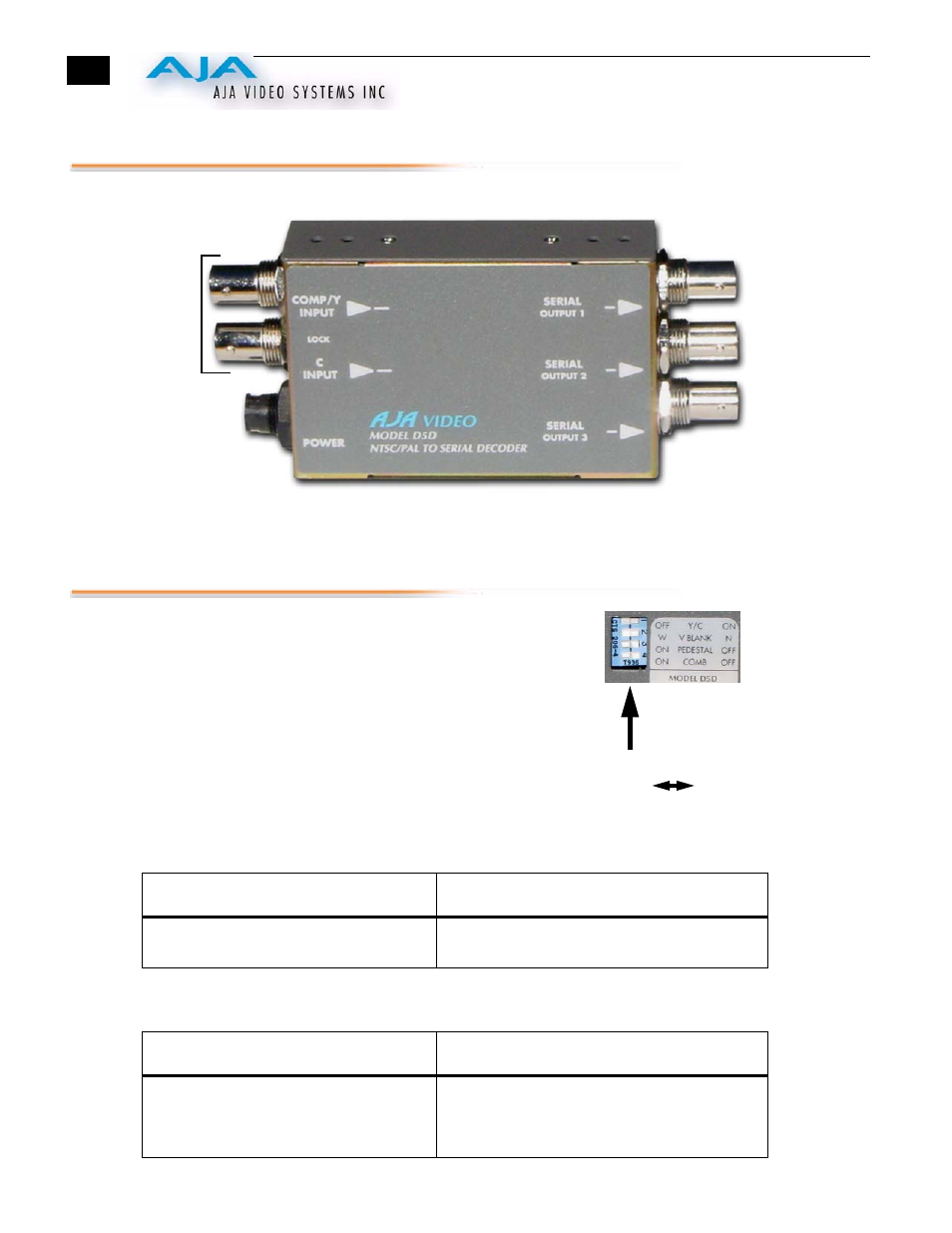

I/O Connections
D5D, Side View
User Controls
The user interface for the D5D is a 4-position
DIP switch accessible through a cut-out in the
bottom of the unit. Use the DIP switches to
configure inputs for Y/C or Composite, set
blanking and pedestal, and configure the comb
filter.
The exact function of each DIP switch and
what it controls is described on the following
pages.
Switch 1—Select Y/C or Composite (CMPSTE) Inputs
:
Switch 2—Configure Vertical Blanking For Composite
:
Serial Digital
Configuration
Determined by
DIP switch on
other side of
Converter
+ 5VDC
Power
Input
Composite
or Y/C Inputs
Output 1
Serial Digital
Output 2
Serial Digital
Output 3
DIP Switches
OFF ON
ON OFF
Y/C:
Selects Y and C inputs (S-video) CMPSTE:
Selects composite video input (NTSC or PAL)
ON OFF
NARROW (NAR) Blanking:
Vertical—
Line numbers indicate where video starts
line 13, field 1; line 12, field 2 (525 line) WIDE Blanking:
Vertical—
Line numbers indicate where video starts)
line 20, field 1; line 20, field 2 (525 line)
