HD10AM Mini-Converter v1.0r2

www.aja.com

Features

• Dual rate HD/SD SDI Embedder/Disembedder

• 8 Channel AES I/O

• Supplied breakout cable for balanced AES - XLR connectors

• HD/SD SDI input

• 2 HD/SD SDI outputs (following input)

• DIP switch configuration

• Uses universal input +5V power supply AJA model DWP-U-R1 (included)

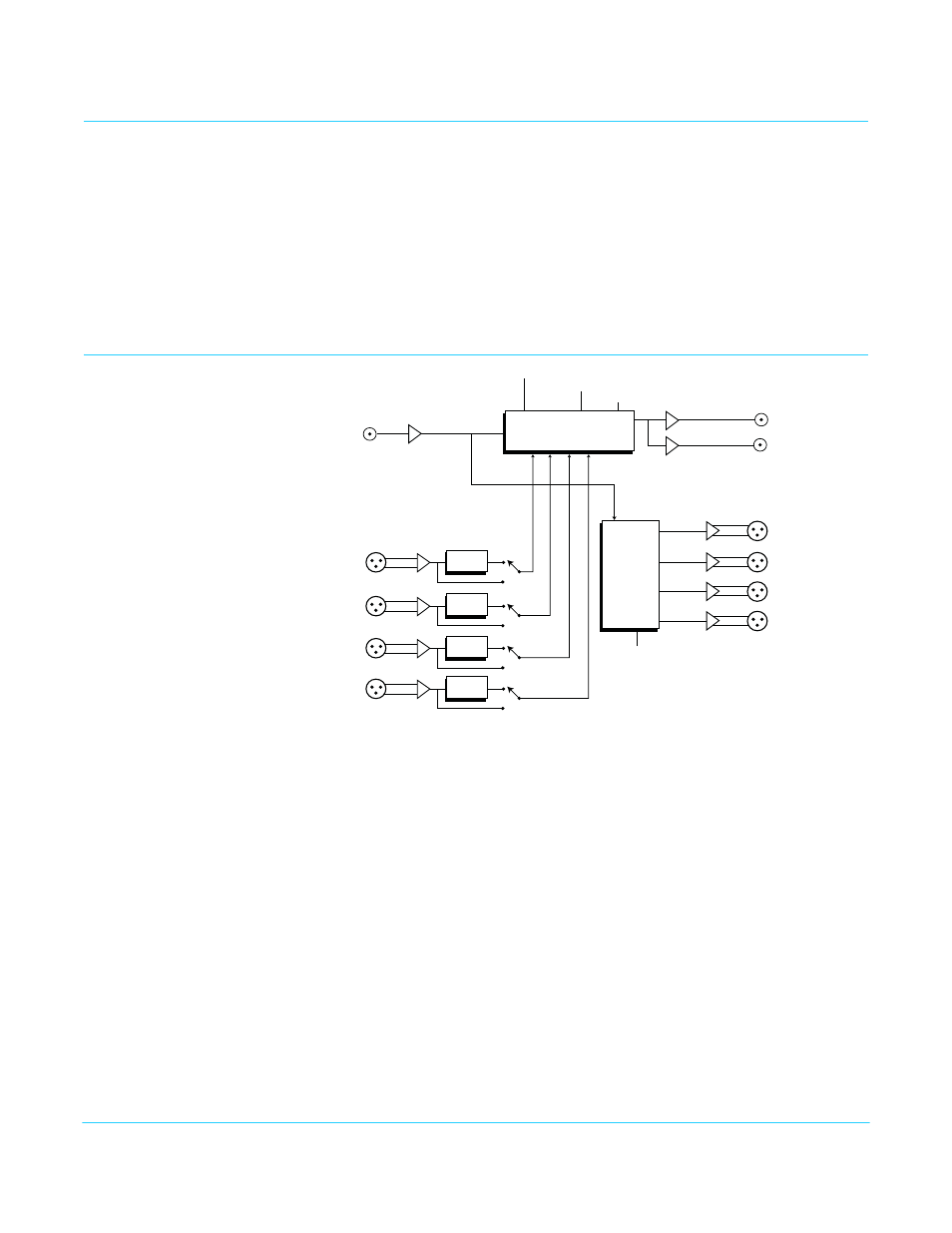

HD10AM Simplified Block Diagram

Cable Driver

Embed 1/2, 3/4, 5/6, 7/8

Embed and Pass-through

Packet Processor

Embed Group 1/2, 3/4

AUX

SRC

SRC Bypass

AES Input 1

(Ch 1/2 or 9/10)

XLR Breakout Cable

HD-SDI Out 1

HD-SDI Out 2

SRC

AES Input 2

(Ch 3/4 or 11/12)

SRC

AES Input 3

(Ch 5/6 or 13/14)

SRC

AES Input 4

(Ch 7/8 or 15/16)

AES Output 1
(Ch 1/2 or 9/10)

AES Output 2
(Ch 3/4 or 11/12)

AES Output 3
(Ch 5/6 or 13/14)

AES Output 4
(Ch 7/8 or 15/16)

Dis-

Embedder

Disembed

Group 1/2, 3/4
