HD10MD3 Mini-Converter v1.0r2 www.aja.com 7
Chapter 2: Operation
DIP Switches
DIP switches on the bottom of the unit are used to configure outputs, pedestal, blanking,
cropping, and graticule.

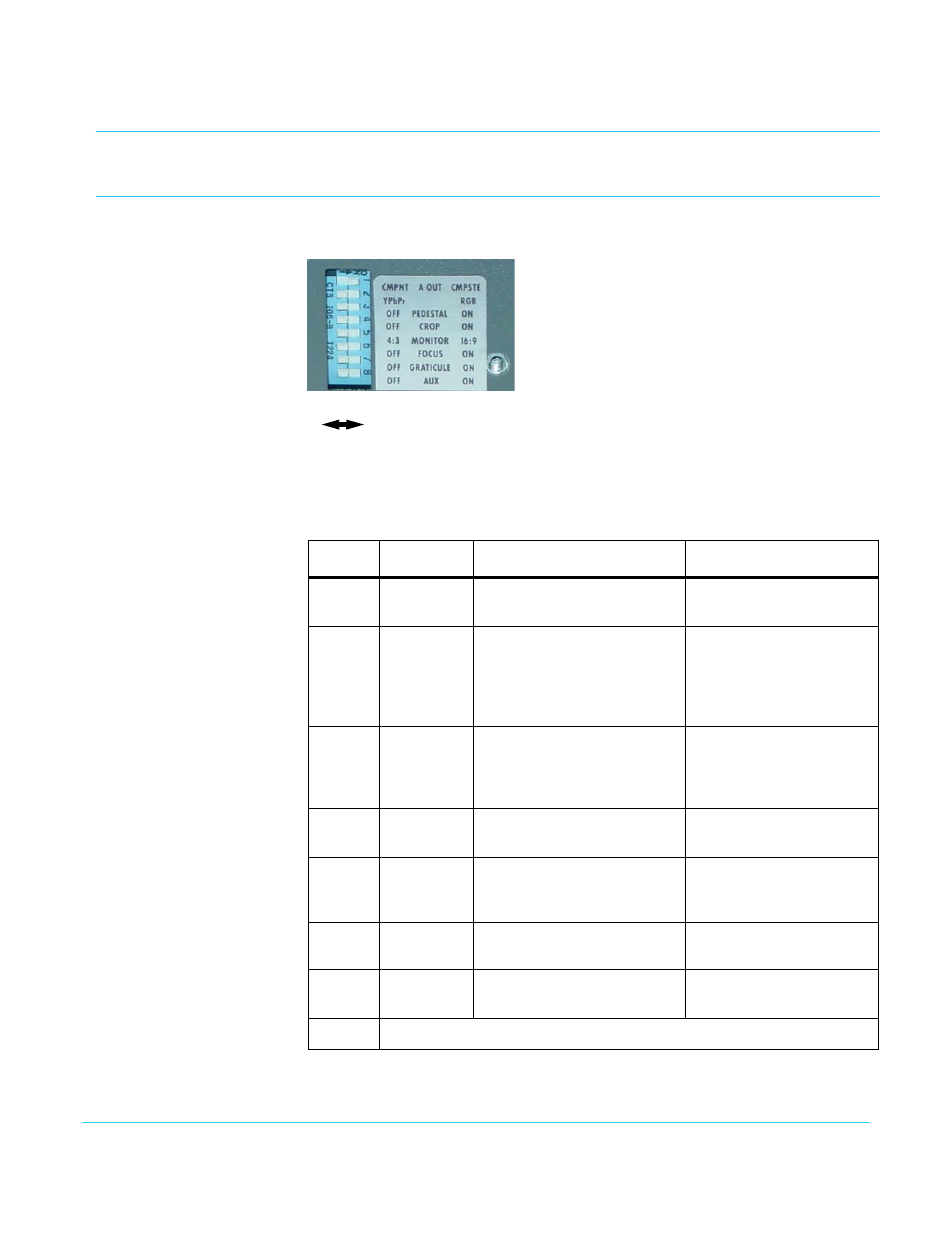

DIP Switch Settings
DIP Switches
LEFT RIGHT
Table 1. HD10MD3 DIP Switch Setting Descriptions
SWITCH FUNCTION DIP Set LEFT (default) DIP Set RIGHT
1 Analog
output Selects Component output
(CMPNT) Selects composite video
output (CMPSTE)
2 Type of
Component
Video on 3
Output
BNCs Selects YPbPr Selects RGB
3 Pedestal Pedestal OFF Pedestal ON. This setting
also changes analog output
to BETA levels when in
YPbPr mode.
4 Crop No crop (OFF) Crop ON (if S5 switch
MONITOR is set to 4:3)
5 Set Monitor
Output to
4:3 or 16:9 Selects 4:3 Selects 16:9
6 Focus ON/
OFF Turn Focus OFF Turn Focus ON (Zoom to
center 720 x 486 image)
7 Graticule Turn Graticule OFF Turn Graticule ON (4:3 safe
area)
8 DIP switch 8 is unused
