HD10C2 Mini-Converter v1.0r2 www.aja.com 7
Chapter 2: Operation
DIP Switches
DIP switches on the back of the unit are used to configure output formats, and enable/
disable video sync and graticule.

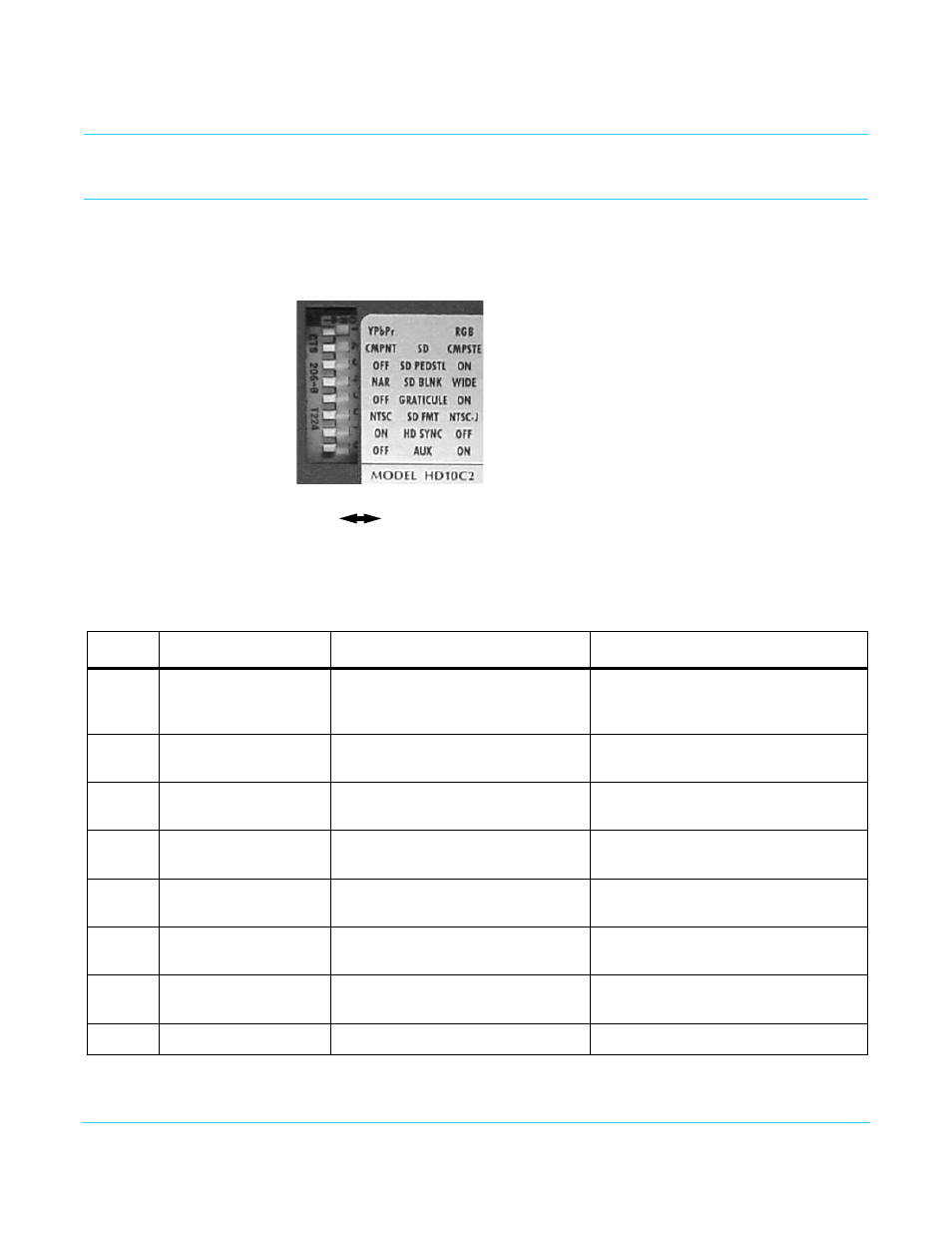

Figure 1. HD10C2 DIP Switches and Label.
DIP Switch Settings
The combination of switch settings determines the overall operation of the HD10C2.
DIP Switches
LEFT RIGHT
Table 1. HD10C2 DIP Switch Setting Descriptions
SWITCH FUNCTION DIP Set LEFT (default) DIP Set RIGHT
1 Component Video
Output Format YPbPr:
Selects YPbPr Component output
(YPbPr) RGB:
Selects RGB Component output
2 SD Output Format: COMPONENT:
Selects Component output (SD Input) COMPOSITE:
Selects Composite output (SD Input)
3 SD Pedestal OFF:
Disable pedestal (SD Input) ON:
Enable pedestal (SD Input)
4 SD Blanking NARROW:
Select narrow blanking WIDE:
Selects wide blanking
5 Graticule:
(HD Mode 4:3 Safe Area) OFF:
Disable graticule ON:
Enable graticule
6 SD Format NTSC:
(SD Input) NTSCJ:
Selects Japan’s NTSCJ format (SD Input)
7 HD Sync ON:
Enable HD Sync OFF:
Disable HD Sync (remove sync on RGB)
8 Aux Not currently used
