• 8-channel HDMI output audio
• 2-channel RCA-style analog outputs at -10dBV (nominal)
• Reference Input
• Configurable via DIP switch or USB port and supplied Mini-Config software
• Uses universal input +5V power supply AJA model DWP-U-R1 (included)
• 5-year warranty

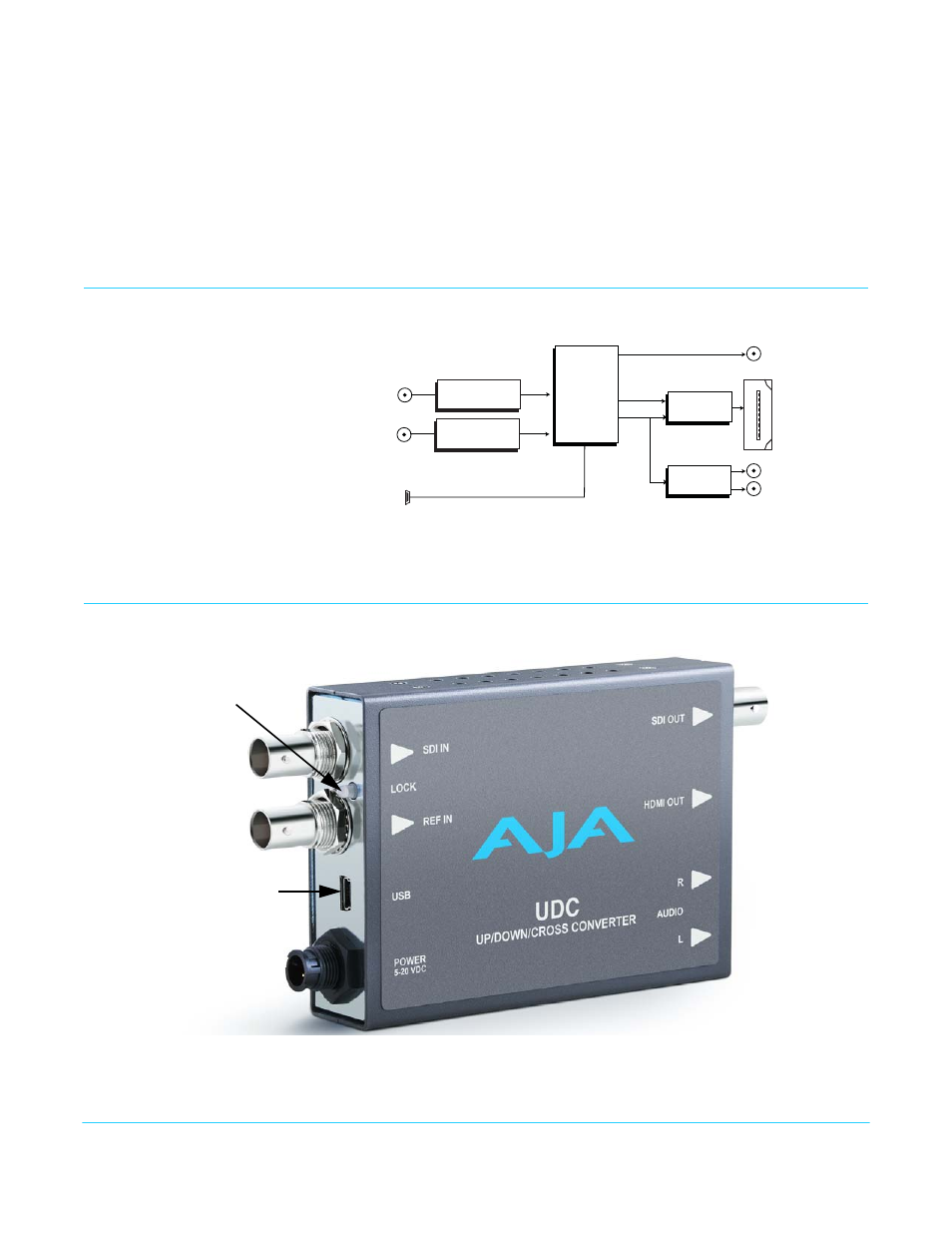

Block Diagram
Figure 1. UDC Mini-Converter, Simplified Block Diagram
I/O Connections
Figure 2. UDC Mini-Converter
NOTE:
The LOCK LED indicates by color the detected signal type. Green is SD-SDI, red is HD-SDI, and
amber/orange is 3G-SDI. Off indicates no input.
Up,
Down,
and
Cross
Converter
Audio
D/A
Video
Audio
HDMI
Transmitter
Video with Embedded Audio
2-Channel
Analog Audio
Monitor Output
HDMI 1.4a Output
with Embedded
Audio
SD/HD/3G-SDI IN
SD/HD/3G-SDI Output
SDI Receiver
Reference Input
USB Port
(connect to PC or Mac)
Selects 8 or 10-bit Video
and other Functions
Genlock
SD/HD/3G-SDI
+ 5 VDC
Power
Input
2-Channel
Unbalanced
Analog Audio
(RCA-style Jacks)
HDMI Output
Input 1 BNC
Reference Input
USB
Port
LOCK LED
SD/HD/3G-SDI
Output
