V2Digital v1.0 www.aja.com 4
Chapter 1: Introduction

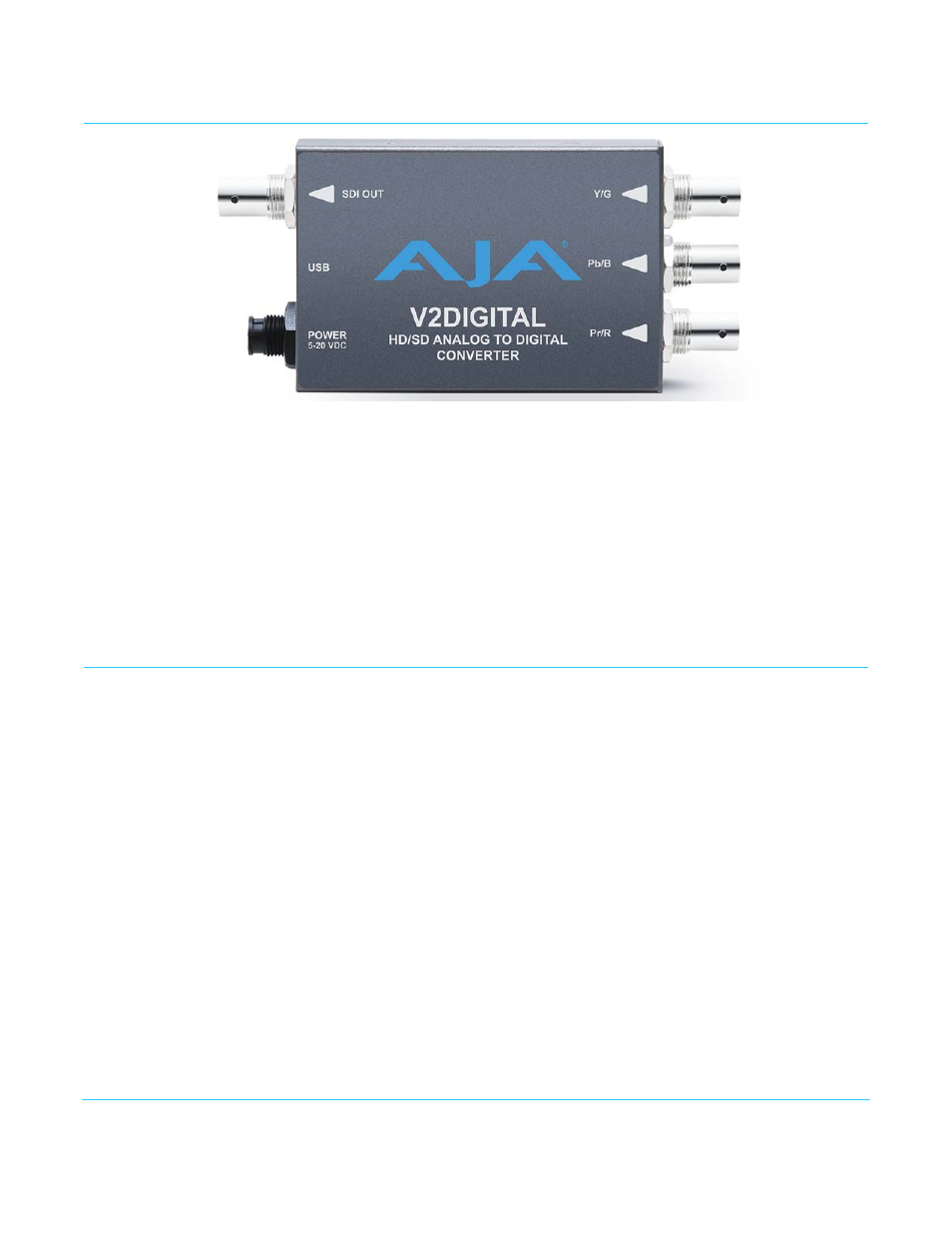

V2Digital is a high-quality, cost-effective analog to digital video converter that’s perfect
for facilities needing to integrate signal types. V2Digital provides AJA’s high-quality 10-
bit conversion of component or composite analog video to SDI at either SD or HD
resolutions utilizing a full 10-bit data path and 2x oversampling to ensure a quality
conversion all at an extraordinary price. V2Digital accepts YPbPr (SMPTE/EBU-N10),
Betacam, or RGB component inputs (HD only) or NTSC/PAL or Y/C (S-Video) composite
inputs (SD only). Configuration can be set by on unit DIP switches or remotely via AJA
MiniConfig software control over USB.
NOTE: The V2Digital requires a Time Base Corrected source. Operation is not recommended from
VTRs, laser disks, etc., without Time Base Correction (TBC).
Features
• 10-bit AJA quality Analog to Digital conversion
• Low power, compact size
• YPbPr/RGB Component or Composite input
• HD/SD-SDI output
• Configurable by DIP switches, or with AJA MiniConfig software for Mac and PC via USB
• DWP-U-R1 Power Supply Included
• 5-year warranty
