Output Tab Screen

Click on the Output tab to view and make changes to the V2Analog Output settings.

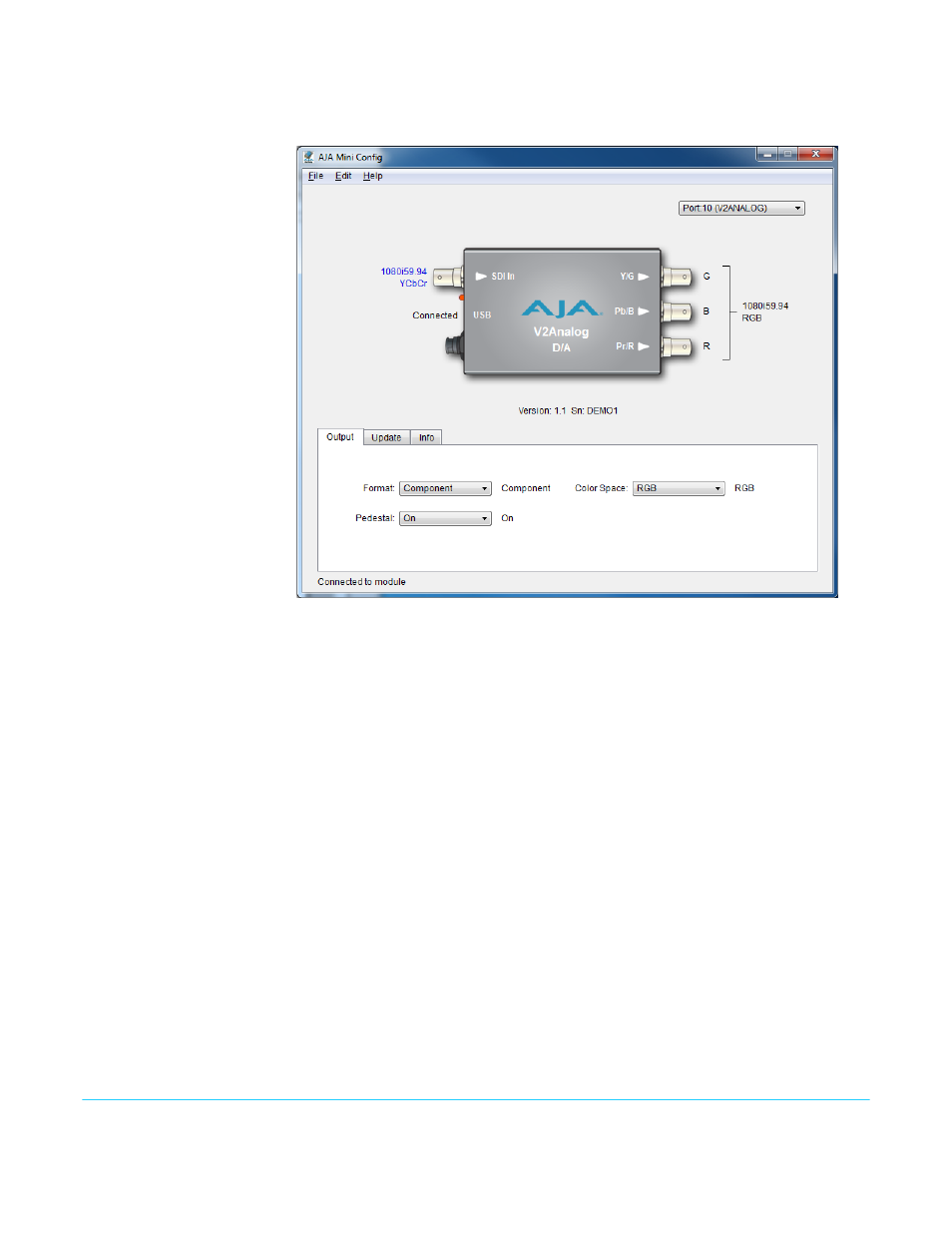

Figure 8. MiniConfig, Output Tab Screen

Format:

Selects the desired output video format. Only applies if in SD mode. Choose from the
following:

• Component

• Composite

Color Space:

Selects the desired output video format color space. Only applies if in HD mode.Choose
from the following:

• RGB

• YPbPr (SMPTE)

• YPbPr (Betacam)

Pedestal:

Choose On or Off. Only applies if in SD mode. On puts the black level at 7.5 IRE. Off puts
the black level at 0 IRE.
