HD10A-Plus v1.0r1 www.aja.com 5

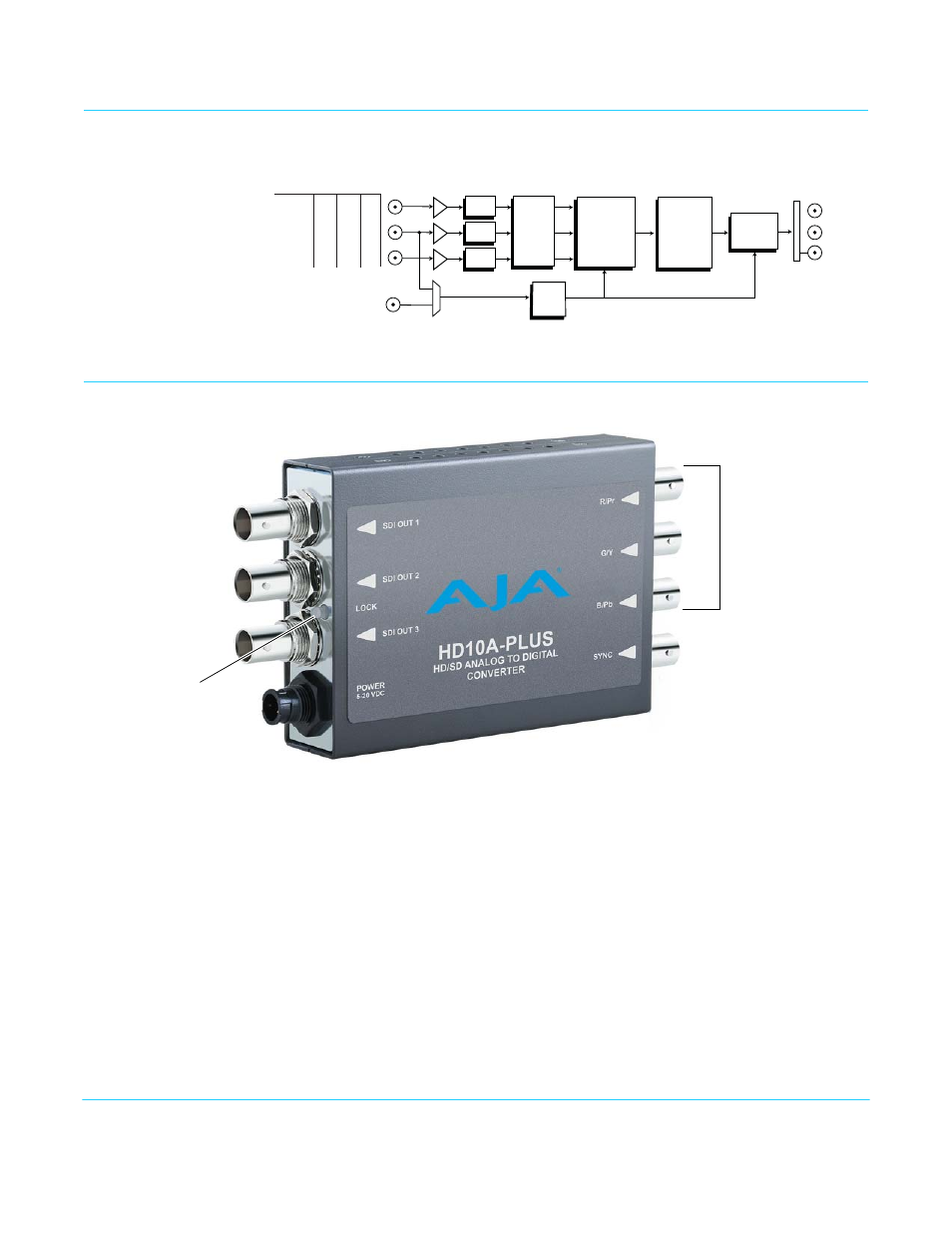

Block Diagram
Figure 1. HD10A-Plus Analog Component to Serial Digital HD Converter
I/O Connections
Figure 2. HD10A-Plus, Side View
The Lock LED indicates valid input video by color. Green is SD video, red is HD video, off is
no input.
RGB Sync Input (Select Internal or
External RGB Sync)
A/D
Converter
& Decoder
Input
Select
Color
Space
Converter
Filter
Filter
Filter
Int
Ext
SDI Out 1
SDI Out 2
SDI Out 3
Serialize
Sync
Lock
COMPONENT or COMPOSITE
INPUTS (selected by DIP switch)
HD/SD Serial Digital
OUTPUTS
B
G
R
C
Y Composite Y
Pb
Pr
SDI Output 1
DC
Analog Video
Input BNCs
Configuration
determined by
DIP switch on
other side of
converter
Power
Input
BNC
SDI Output 2
BNC
SDI Output 3
BNC
RGB Sync Input
Lock LED
Input Detect
(for use only with
RGB analog inputs)
