HA5-Plus Mini-Converter v1.3 www.aja.com 13
Audio Tab Screen
Click on the Audio tab to view and make changes to the HA5-Plus audio settings.

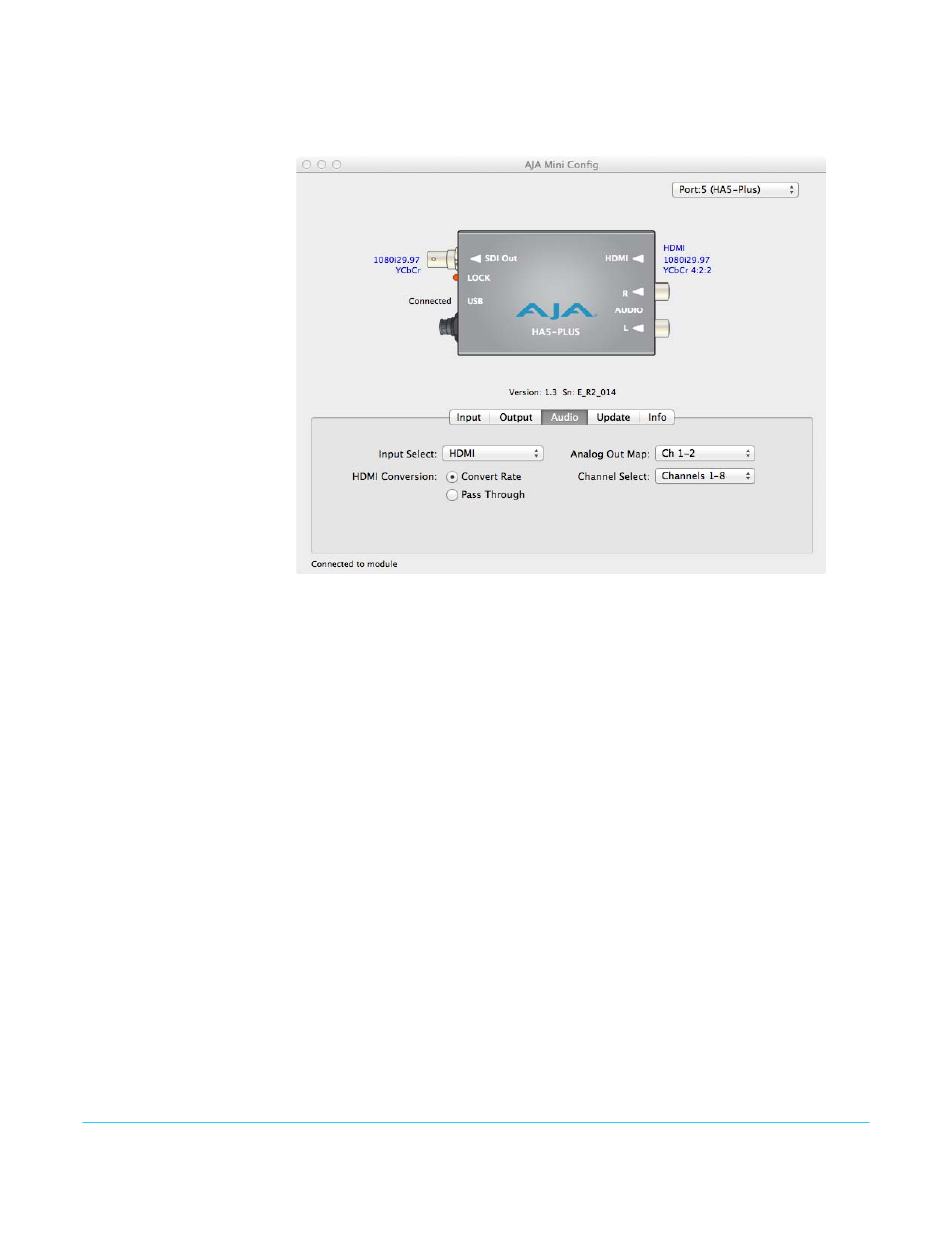

Figure 10. MiniConfig, Audio Tab Screen
Audio Selections
NOTE: When using the DVI video protocol no audio is output, since that protocol is video only.
Input Select: Choose what audio channels are routed to the SDI output.
• HDMI - Only the audio channels from the HDMI input are embedded.
• Analog - Only the two analog input channels are embedded. You can choose which of
the embedded SDI channels will receive the analog audio, using the Analog Out Map
and Channel Select settings. The other channels will be muted.
• Analog + HDMI - Both the analog inputs and HDMI audio are embedded. You can
choose which of the HDMI channels will be replaced by the two analog audio inputs,
using the Analog Out Map and Channel Select settings.
• None - No audio will be embedded. All channels are muted.
HDMI Conversion: Choose the audio conversion to be performed on the incoming HDMI audio.
• Convert Rate - The HDMI audio will be converted, if necessary, to 24-bit/48 KHz audio.
• Pass Through - The HDMI audio will be passed to the SDI embedded audio channels
without conversion.
Analog Out Map: Permits selecting the pair of SDI embedded audio channels that will receive the analog
audio from the RCA connectors. The audio pair replaced depends on the Channel Select
setting below, and your choice of Ch 1-2 through Ch 7-8 that correspond to that set of
embedded channels.
Channel Select: Choose which set of 8 channels (4 pairs) of embedded audio the SDI output will carry.
Select Channels 1-8 or Channels 9-16.
