Bryant PURON 581J User Manual
Page 23
23

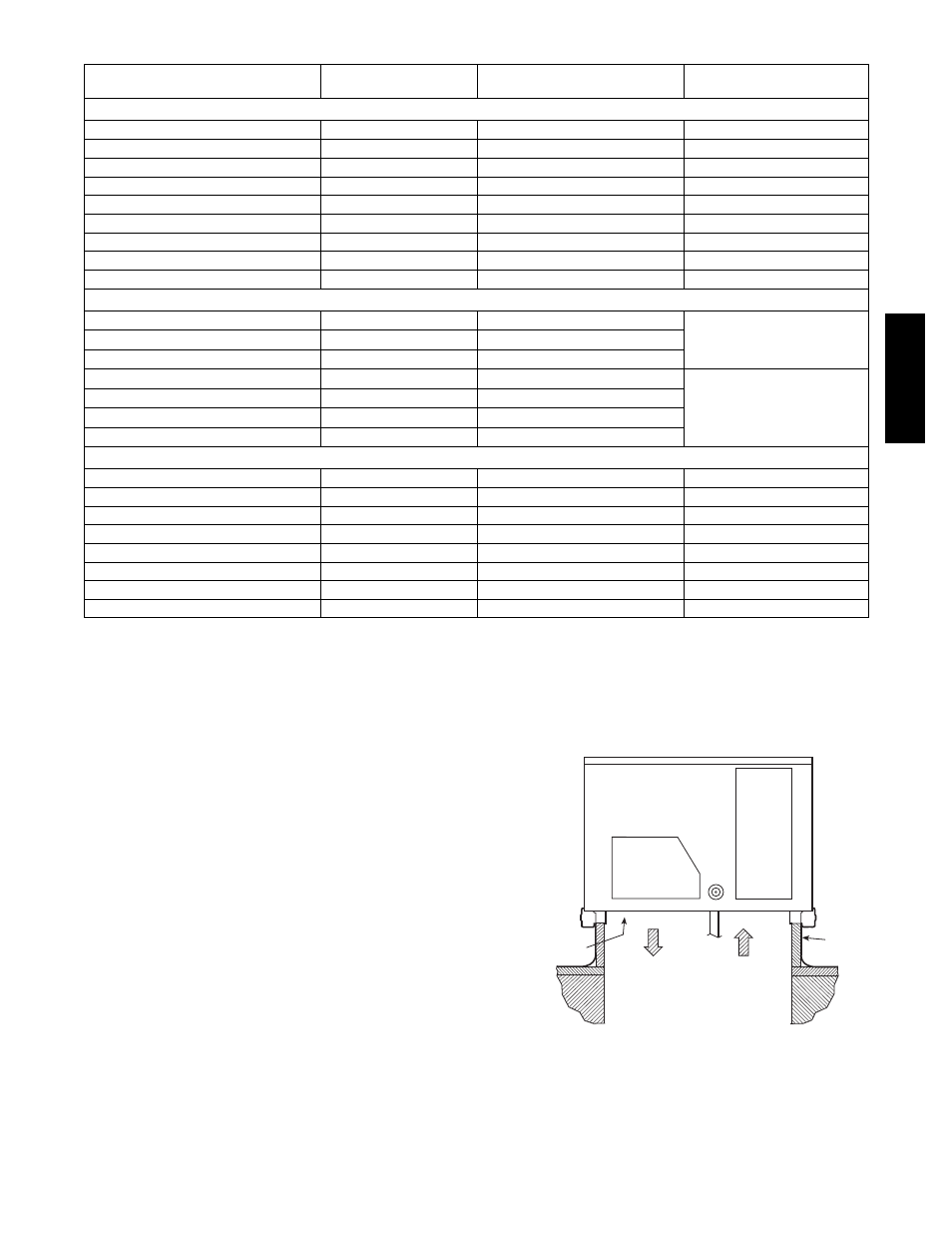

Table 3 – RTU Open Controller Inputs and Outputs
POINT NAME
BACnet OBJECT
NAME
TYPE OF I/O
CONNECTION PIN
NUMBER(S)
DEDICATED INPUTS
Space Temp / Zone Temp
zone_temp
AI (10K Thermistor)
J20---1, 2
Supply Air Temperature
sa_temp
AI (10K Thermistor)
J2---1, 2
Outdoor Air Temperature
oa_temp
AI (10K Thermistor)
J2---3, 4
Space Temperature Offset Pot
stpt_adj_offset
AI (100K Potentiometer)
J20---3
Safety Chain Feedback
safety_status
DI (24 VAC)
J1---9
Compressor Safety Status
comp_status
DI (24 VAC)
J1---2
Fire Shutdown Status
firedown_status
DI (24 VAC)
J1---10
Enthalpy Status
enthalpy_status
DI (24 VAC)
J2---6
Humidistat Input Status
humstat_status
DI (24 VAC)
J5---7
CONFIGURABLE INPUTS
Indoor Air CO2
iaq
AI (4---20 ma)
J4---2 or J4---5
Outdoor Air CO2
oaq
AI (4---20 ma)
Space Relative Humidity
space_rh
AI (4---20 ma)
Supply Fan Status*
sfan_status
DI (24 VAC)
J5---1 or J5---3 or
J5 5 or J5---7
Filter Status*
filter_status
DI (24 VAC)
Door Contact Input*
door_contact_status
DI (24 VAC)
Occupancy Contact*
occ_contact_status
DI (24 VAC)
OUTPUTS
Economizer Output
econ_output
AO (4---20ma)
J2---5
Supply Fan Relay State
sfan
DO Relay (24VAC , 1A)
J1---4
Compressor 1 Relay State
comp_1
DO Relay (24VAC , 1A)
J1---8
Compressor 2 Relay State
comp_2
DO Relay (24VAC , 1A)
J1---7
Heat Stage 1 Relay State
heat_1
DO Relay (24VAC , 1A)
J1---6
Heat Stage 2 Relay State
heat_2
DO Relay (24VAC , 1A)
J1---5
Power Exhaust Relay State
pexh
DO Relay (24VAC , 1A)
J11---3
Dehumidification Relay State
dehum
DO Relay (24VAC, 1A)
J11---7, 8
LEGEND
AI --- Analog Input
AO --- Analog Output
DI --- Discrete Input
DO --- Discrete Output
* These inputs (if installed) take the place of the default input on the specific channel according to schematic.
Parallel pins J5---1 = J2---6, J5---3 = J1---10, J5---5 = J1---2 are used for field---installation.
The RTU Open controller requires the use of a Bryant
space sensor. A standard thermostat cannot be used with
the RTU Open system.
Supply Air Temperature (SAT) Sensor —
On FIOP--equipped 581J unit, the unit is supplied with a
supply--air temperature (SAT) sensor (33ZCSENSAT).
This sensor is a tubular probe type, approx 6--inches (12.7
mm) in length. It is a nominal 10--k ohm thermistor.
The SAT is factory--wired. The SAT probe is wire--tied to
the supply--air opening (on the horizontal opening end) in
its shipping position. Remove the sensor for installation.
Re--position the sensor in the flange of the supply--air
opening or in the supply air duct (as required by local
codes). Drill or punch a
1
/
2
--in. hole in the flange or duct.
Use two field--supplied, self--drilling screws to secure the
sensor probe in a horizontal orientation. See Fig. 36.
Outdoor Air Temperature (OAT) Sensor —
The OAT is factory--mounted in the EconoMi$er2 (FIOP or
accessory). It is a nominal 10k ohm thermistor attached to
an eyelet mounting ring.
SUPPLY AIR
RETURN AIR
SUPPLY AIR
TEMPERATURE
SENSOR
ROOF
CURB
C08200
Fig. 36 -- Typical Mounting Location for Supply Air
Temperature (SAT) Sensor on Small Rooftop Units
581J
