Description Model year Model for Parts included (qty) TCG Part #
Freehub kit 02/03 all 8, 9(2), 10(2), 11 70354
(Shimano)
Freehub kit 02/03 all 8, 9(2), 10(2), 11 211579
(Campagnolo)
Star ratchet 02/03 all 9(2), 10(2) 211343
and spring kit
Axle kit 02/03 all road 1, 2, 3(2), 4, 13 70355
130mm O.L.D.
(Shimano)
Axle kit 02/03 all road 1, 2, 3(2), 4, 13 211580
130mm O.L.D.
(Campagnolo)
Axle kit 02/03 Race Lite ATB 1, 2, 3(2), 4, 13 70356
135mm O.L.D.
V-seal 02/03 all 2 211342
Freehub seal 02/03 all 7 211591
Bearing 02/03 all 3 (6902, 15/28 x 7mm) 211345
2001, 2002 Race Lite, 2003 Race X Lite ATB
O.L.D. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135 mm
Spoke hole quantity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24°
Spoke hole P.C.D., right . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53.0 mm
Spoke hole P.C.D., left . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44.0 mm
Q.R. rod outer diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 mm
2002/2003 Race X Lite
O.L.D. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130 mm
Spoke hole quantity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24°
Spoke hole P.C.D., right . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53.0 mm
Spoke hole P.C.D., left . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44.0 mm
Q.R. rod outer diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 mm
2002/2003 Race X Lite Carbon, Race X Lite Aero
O.L.D. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130 mm
Spoke hole quantity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16°
Spoke hole P.C.D., right . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53.0 mm
Spoke hole P.C.D., left . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44.0 mm
Q.R. rod outer diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 mm

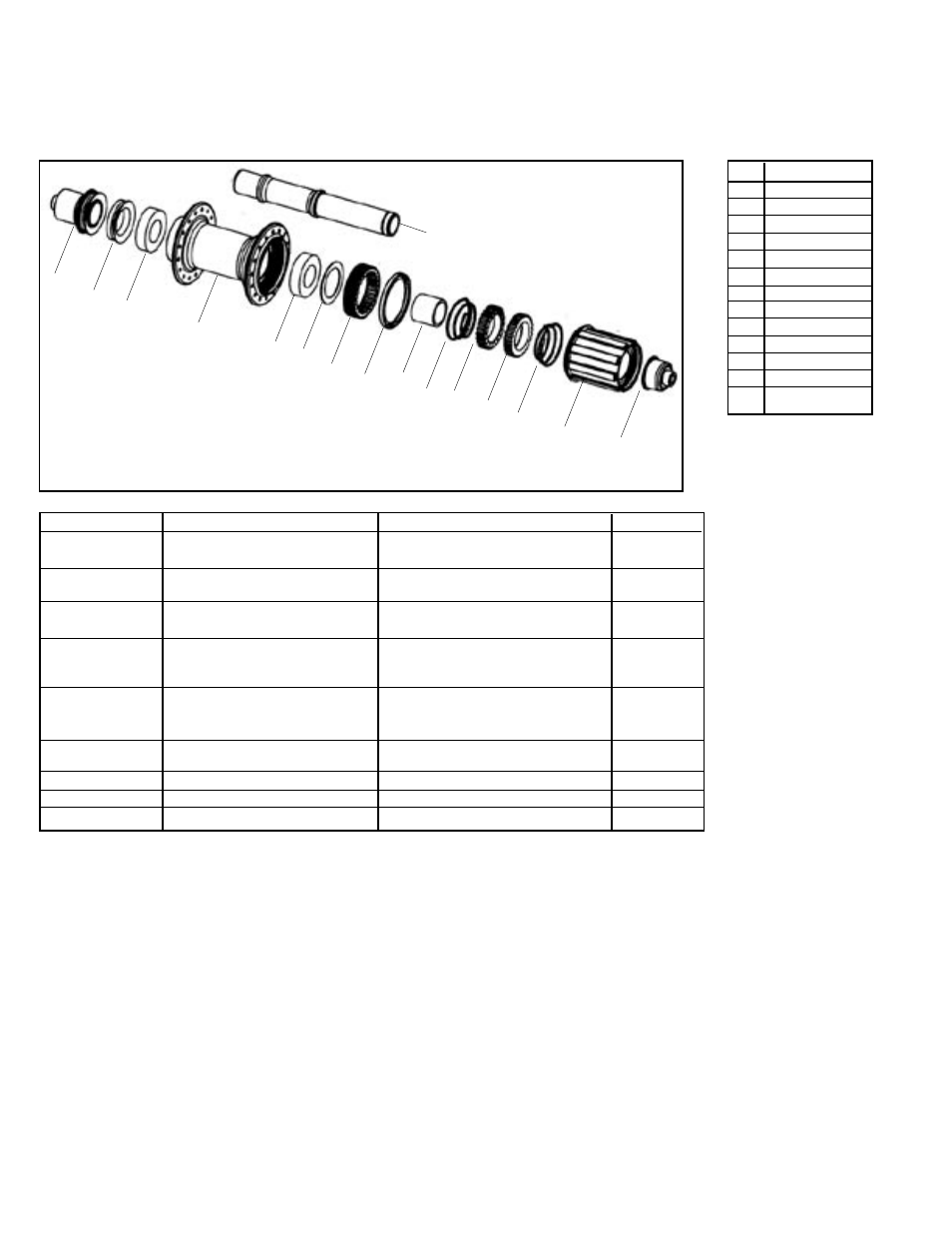

Exploded view and Parts list- 2001-2003
Pos Description
1 End cap, left
2 V-seal
3 Bearing
4 Axle
5 Spacer
6 Ring nut
7 Washer
8 Spacer
9 Spring
10 Star ratchet
11 Freehub body
12 End cap, right
13 Hub shell
1
2
3
13
3
5
6
7 8
9 10
10
9
11
12
4
A running change to hubs was made in 2001; the newer hub (shown here)
has a part number embossed in the shell. See the following page for the
earlier model hub.
