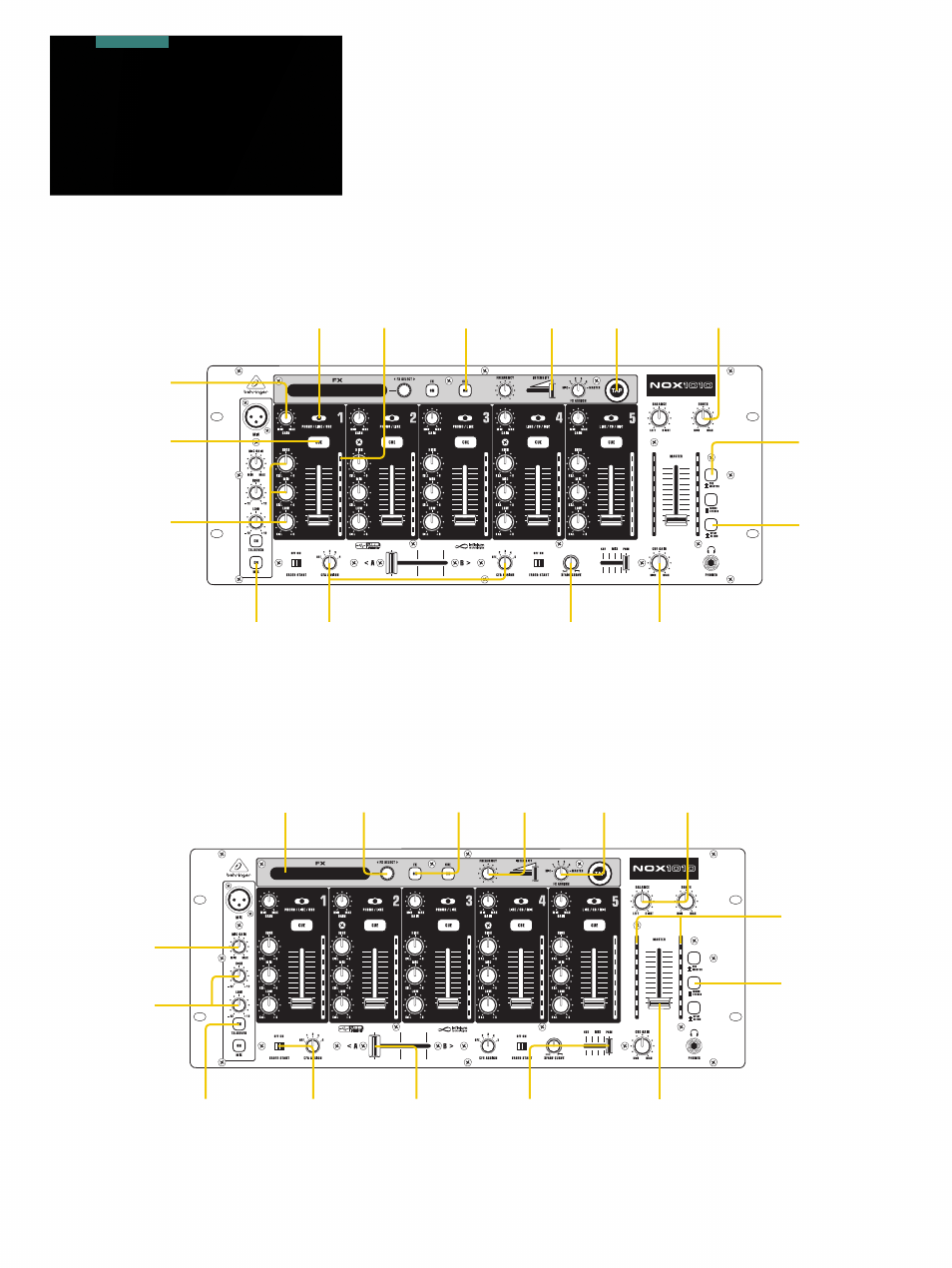

NOX1010 Top Panel
INPUT SELECT
switch selects
channel
audio source
CHANNEL VU
METER displays
input source
signal level
FX CUE button
sends effect to
cue section for
preview
INTENSITY
fader adjusts
effect’s mix
or resonance
parameter
TAP button
allows effect’s
tempo
parameter to
be entered
manually
BOOTH
knob adjusts
RCA BOOTH
OUTPUTS level
SPLIT/BLEND
(CUE) button
allows combining
cue and program
sources or splitting
into left (cue) and
right (main)
MASTER/CUE
button toggles
MASTER VU
METER between
master output or
cue signal
GAIN knob
controls
channel input
sensitivity
CUE button
allows source
monitoring
without
inclusion in
master output
CHANNEL EQ
knobs boost/
cut high,
mid and low
frequencies
MIC ON
button
CF ASSIGN
knobs selects
source on
each side of
crossfader
XFADE CURVE
knob adjusts
fade steepness
between source
A and B
CUE GAIN knob
adjusts cue
volume
FX DISPLAY
indicates
selected effect
MIC GAIN knob
acts as volume
control
MIC EQ knobs
adjust channel
equalization
TALKOVER automatically
lowers music volume
when mic is used,
up position engages
talkover function, down
activates mic without
lowering music
FADER START
switch engages
fader start function,
allowing mixer
to send start/cue
signals to auto-start
CD player
CROSSFADER
fades between
sources
assigned to
either side
MASTER knob
controls RCA
MAIN and
BALANCED
OUTPUT level
CUE MIX knob
allows gradual
blend between
cue and
program signal
FX SELECT knob
scrolls through
available
effects, pressing
knob confirms
selection
FX ON button
activates
digital effects
processor
FREQUENCY
knob adjusts
effect’s
frequency or
time-based
parameter
FX ASSIGN
knob selects
which sources
are affected
by effect
BALANCE knob
adjusts left to
right balance
of RCA MAIN
and BALANCED
OUTPUTS
MASTER VU
METER displays
master output
and/or cue
signal level
STEREO/MONO
button toggles
master output
between stereo
and mono
mode
