Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
! WARNING
Drill
WING
KNOB (A)
TRIGGER
“LOCK-ON”
BUTTON
VENTILATION
OPENINGS
HANDLE COLLAR
MOUNT
SPINDLE FLATS
CHUCK
DEPTH
GAUGE
AUXILIARY
HANDLE
REVERSING
SWITCH
LEVER
VARIABLE
SPEED DIAL
CHUCK
KEY
GEAR
SELECTION
LEVER
WING
KNOB (B)
Model number 1169
Voltage rating 120 V 50 - 60Hz
Amperage rating 5.2A
No load speed 1 n
0
0-1,000/min
No load speed 2 n
0
0-1,900/min
Maximum capacities:
Material Low High
aluminum 3/4" 1/2"
wood 1-1/4" 3/4"
steel 1/2" 5/16"

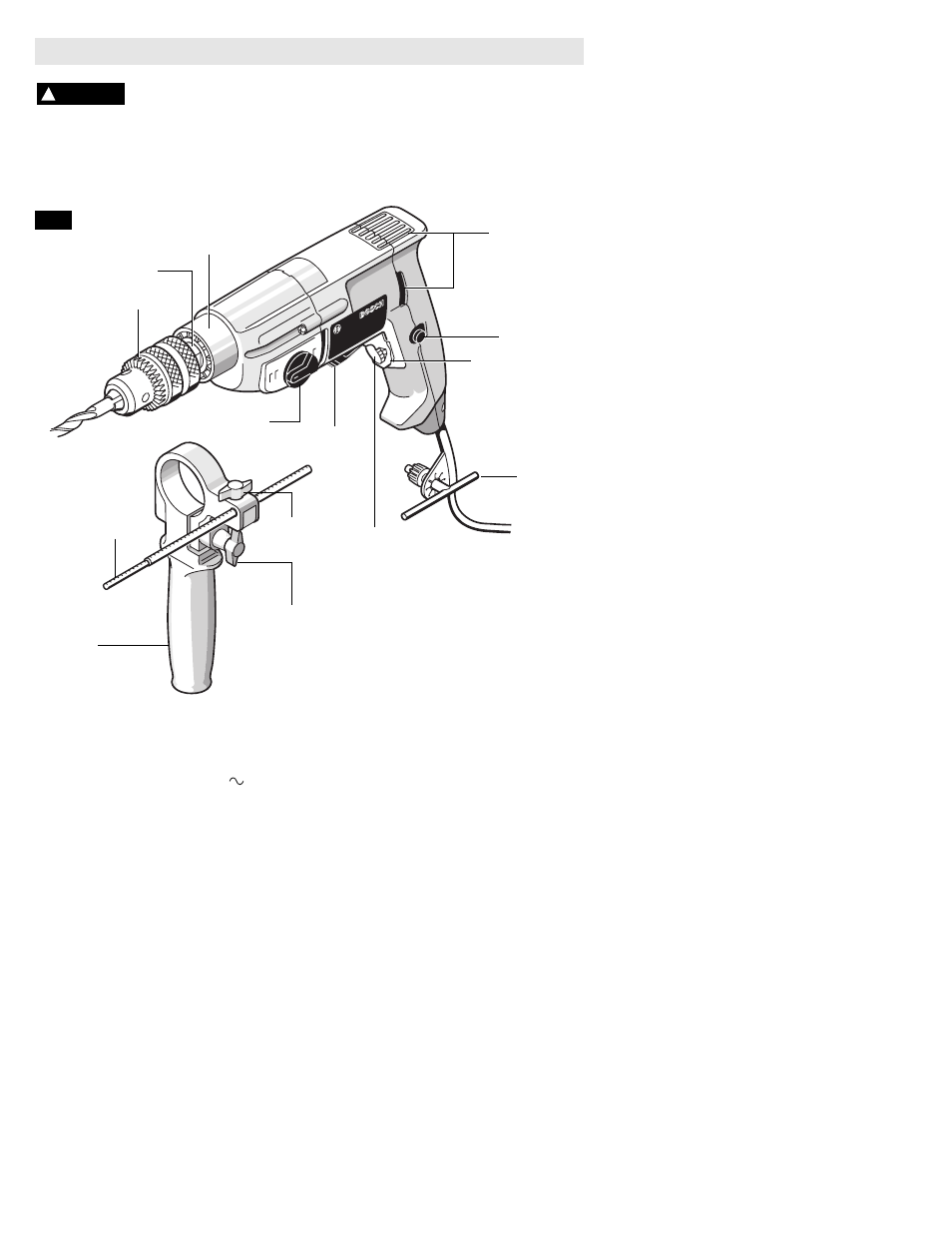

FIG. 1
