MODELS QTXE050 • QTXE080 • QTXE110 • QTXE150

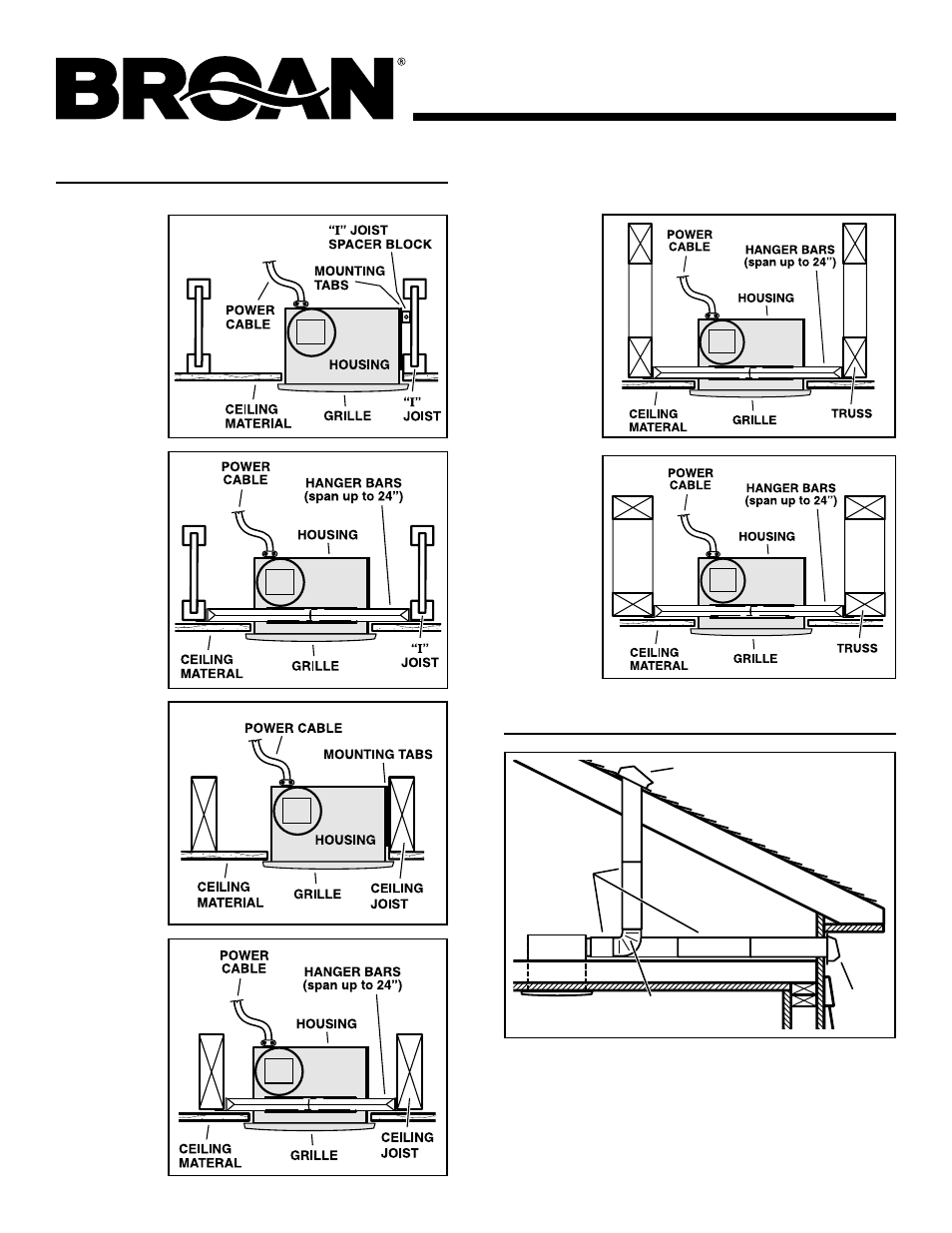

TYPICAL INSTALLATIONS
Housing
mounted to
I-joists. Housing
mounted
anywhere
between
trusses
using
hanger
bars.
PLAN THE INSTALLATION
ROOF CAP *
6-IN. ROUND
ELBOW *
6-IN. ROUND
DUCT *
WALL
CAP *
* Purchase
separately
The unit will operate most quietly and efficiently when located
where the shortest possible duct run and minimum number of
elbows will be needed.
Use a roof cap or wall cap that has a built-in damper to reduce
backdrafts.
Plan to supply the unit with proper line voltage and appropriate
power cable.
Housing
mounted
anywhere
between
I-joists
using
hanger bars.
Housing
mounted to
joists.
Housing
mounted
anywhere
between
joists
using
hanger bars.
Housing
mounted
anywhere
between
trusses
using
hanger
bars.
