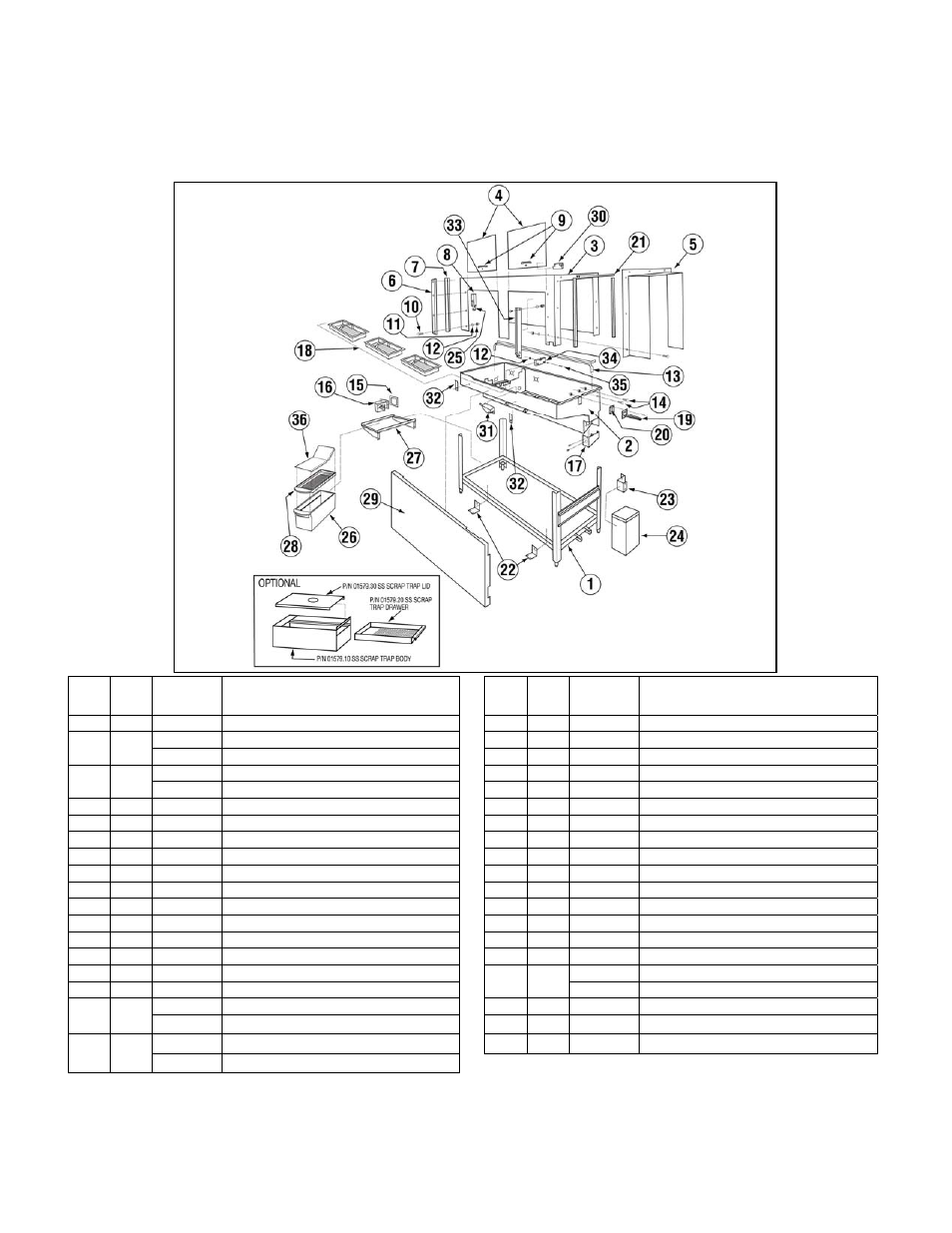

1.2. Exploded View Drawings
1.2.1. Cabinet Assembly
ITEM
NO.
NO.
REQ’D
P/N DESCRIPTION
ITEM
NO.
NO.
REQ’D
P/N DESCRIPTION
1 1 13903.36 Frame Stand 18 3 13910.82 Strainer Basket, Wash/Rinse
1 13902.35 L-R Pan 19 1 13913.00 Drip Chute 2
13902.45 R-L Pan 20 1 13542.00 Drip Chute Gasket
1 13900.36 L-R Wrapper 21 8Ft 03705.00 Foam Tape 3
13900.46 R-L Wrapper 22 2 13010.06 Drain Valve Handle Support
4 2 01506.30 Door 23 1 13504.26 Gearbox Cover Mount (Optional)
5 2 13901.00 Wrapper Shield 24 1 13504.06 Gearbox Cover (Optional)
6 4 01554.30 Door Guide 25 2 13701.00 Door Latch
7 4 00636.10 Door Guide Plastic 26 1 01577.10 Scrap Trap Body molded
8 4 13915.00 Door Latch Bracket 27 1 17579.00 Scrap Trap Holder
9 2 00535.30 Door Handle 28 1 01577.20 Scrap Trap Drawer molded
10 26 00905.00 1/4-20 x 1/2” Trusshead Bolt 29 1 13912.36 Splash Shield
11 60 00924.00 1/4” Washer, SS 30 2 00557.60 Reed Switch Magnet
12 54 00912.00 1/4-20 Nylon Lock Nut 31 2 00557.30 Kynar Reed Switch only 110/120
13 2 13906.36 Tray Track Rail 32 2 13912.81 Splash Shield Clip
14 8 00914.10 1/4-20 x 5/8” Hex Head Bolt 33 1 13704.08 L-R Curtain Splash Shield
15 1 13511.26 Overflow Chute Gasket 13704.06 R-L Curtain Splash Shield
1 13511.06 L-R Overflow Chute 34 1 13522.06 Conveyor bar guide 16
13511.16 R-L Overflow Chute 35 2 00962.00 ¼’-20x1” Hexhead Bolt
17 1 13927.06 L-R Heater Cover 36 1 01577.36 Scrap Trap Cover SS
13927.16 R-L Heater Cover
