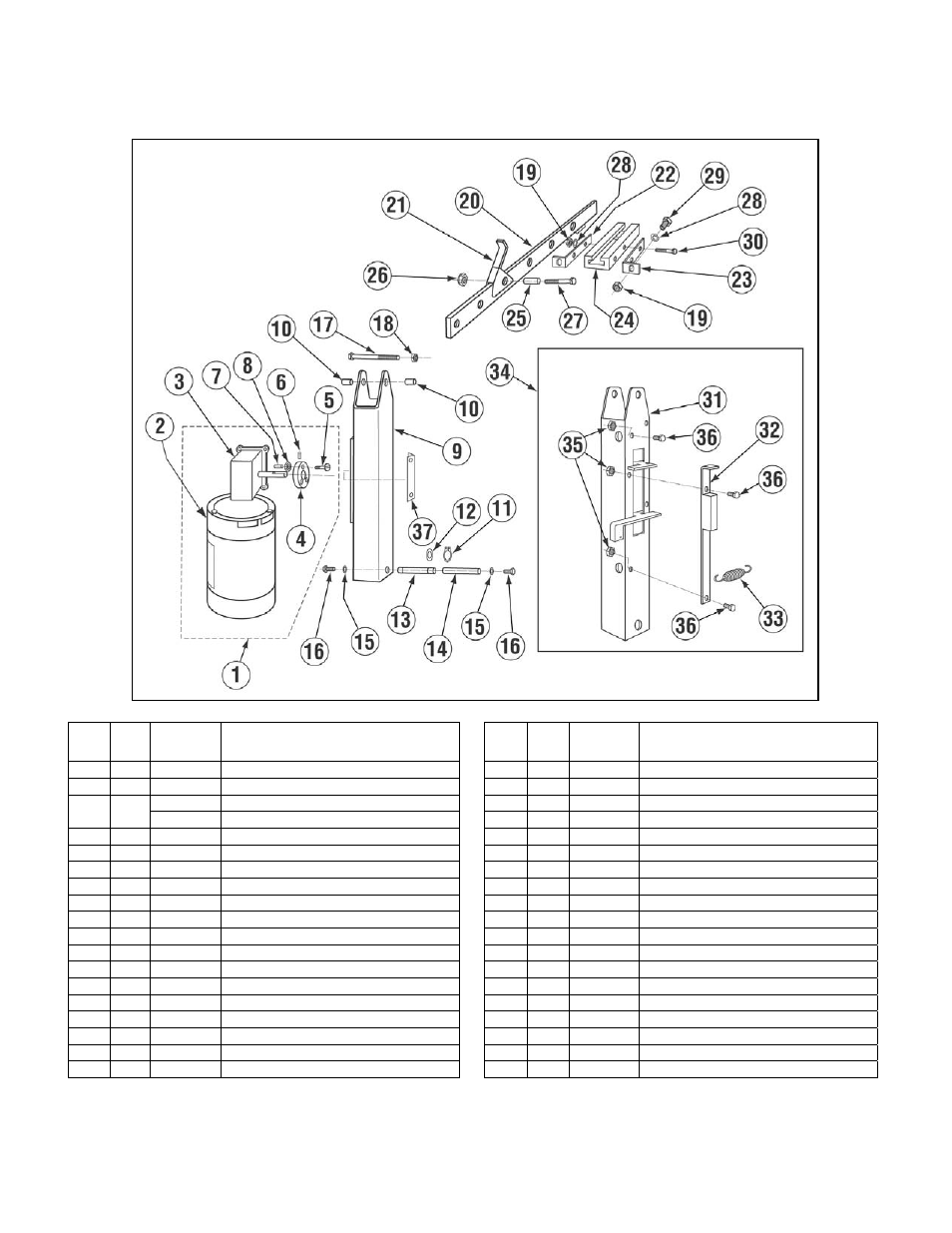

1.2.9. Rocker Arm Assembly
ITEM
NO.
NO.
REQ’D
P/N DESCRIPTION
ITEM
NO.
NO.
REQ’D
P/N
DESCRIPTION
1
1
13570.20
Conveyor Drive Assy, 220V, 60Hz, 3Ph*
19
1
00912.00
1/4-20 Nylon Lock Nut
2
1
13501.85
Motor, 1/3HP, 220V, 60Hz, 3Ph
20
1
13514.85
Conveyor Bar
13504.00
Gear Reducer, Right
21
5
13515.00
Conveyor Dog, SS
3 1
13504.12
Gear Reducer, Left
22
1
13514.82
Left Conveyor Bar Bracket
4
1
13505.10
Rocker Arm Cam
23
1
13514.84
Right Conveyor Bar Bracket
5
1
13507.50
Cam Bearing, SS
24
1
13521.50
Conveyor Bar Slide Bearing
6
1
13816.00
5/16-18 x 1/2" Socket Set Screw
25
10
13520.00
Conveyor Dog Bearing
7
1
13505.20
Keyway Cam
26
5
13806.00
3/8” Nylon Lock Nut
8
1
13829.10
7/16-20 Hex Lock Jam Nut
27
5
13818.00
3/8-16 x 1-3/4” Hex Head Bolt
9
1
13508.06
Rocker Arm
28
2
00924.00
1/4" SS Washer
10
2
13513.10
Rocker Arm Spacer
29
2
00914.10
1/4-20 x 5/8” Hex Head Bolt
11
2
13509.52
7/8” ID External Lock Ring
30
1
00903.00
1/4-20 x 1-3/4” Hex Head Bolt
12
2
13509.53
1” ID Brass Washer
31
1
13508.10
Rack Saver Rocker Arm
13
1
13509.51
Rocker Arm Shaft Bearing
32
1
13508.26
Rack Saver Clutch Bar
14
1
13510.10
Bearing Shaft
33
1
13508.60
Swivel Hook Spring Assembly
15
2
00922.00
1/4" Lock Star Washer
34
1
13508.40
Complete Rack Saver Rocker Arm Assy
16
2
00914.00
1/4-20 x 3/4" Hex Head Bolt
35
4
00912.00
1/4-20 Nylon Lock Nut**
17
1
13808.00
1/2-13 x 3-1/2”
36
4
00914.00
1/4-20 x 3/4" Hex Head Bolt**
18
1
13809.00
1/2-13 Nylon Lock Nut
37 1
13505.06
Cam
Guide
*Includes Items 2 through 8.
**Number required is for Complete Rack
Saver Rocker Arm Assembly only.
