Page 4

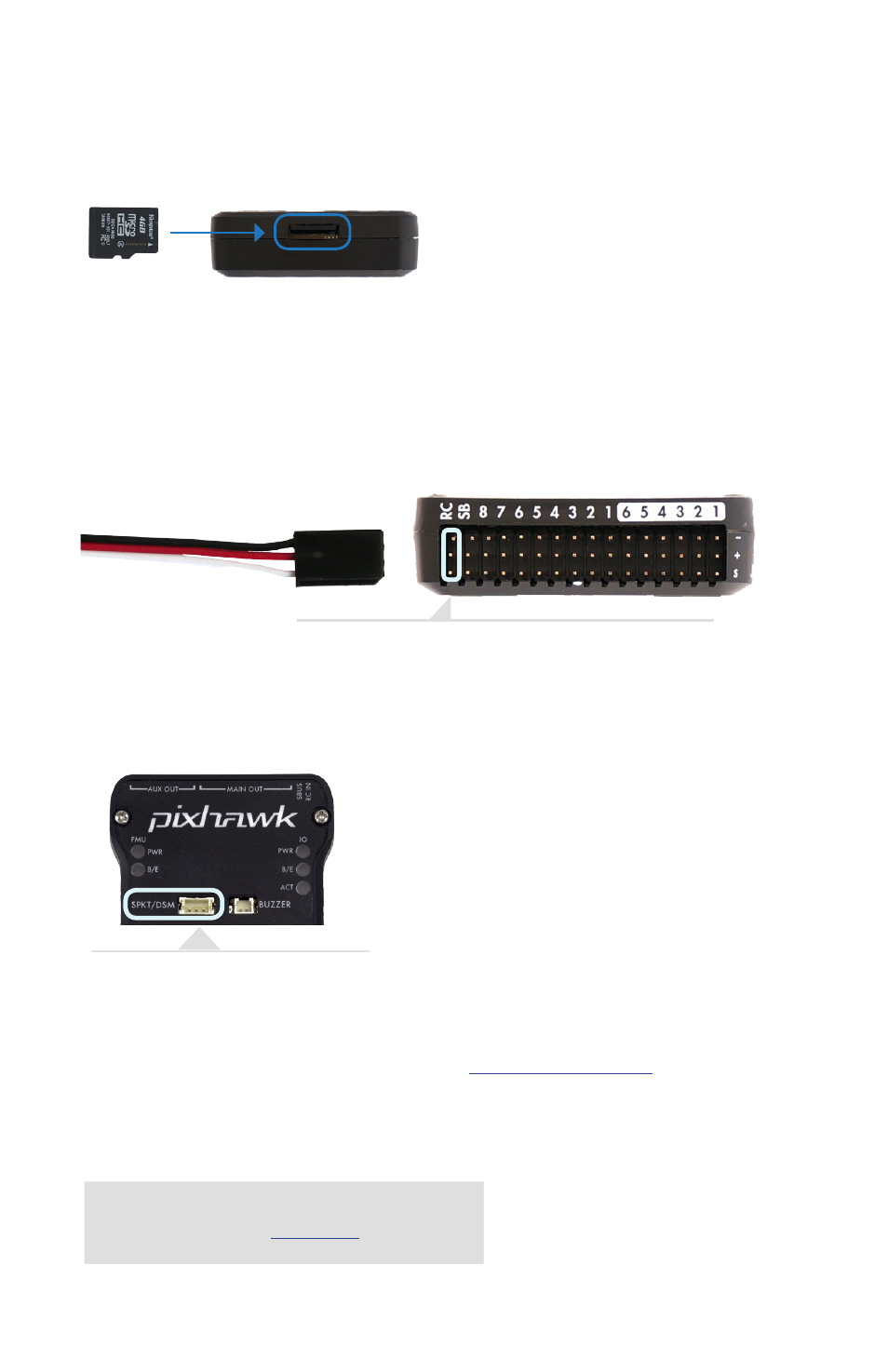

Connect the ground (-), power (+), and signal (S) wires to the RC

pins using the provided 3-wire servo cable.

For a Spektrum DSM, DSM2, or DSM-X Satellite RC receiver, connect to
the SPKT/DSM port.

CONNECT RADIO CONTROL

FOR PPM RC RECEIVERS AND FUTABA S.BUS RECEIVERS

FOR SPEKTRUM SATELLITE RECEIVERS

FOR PWM RECEIVERS

Purchase a PPM Encoder module to connect a PWM
RC receiver to Pixhawk at

LOAD SD CARD INTO PIXHAWK

If the SD card is not preloaded into Pixhawk, insert the micro-SD card into the slot at the
bottom end of the board.

For a complete list of RC systems compatible with Pixhawk,
