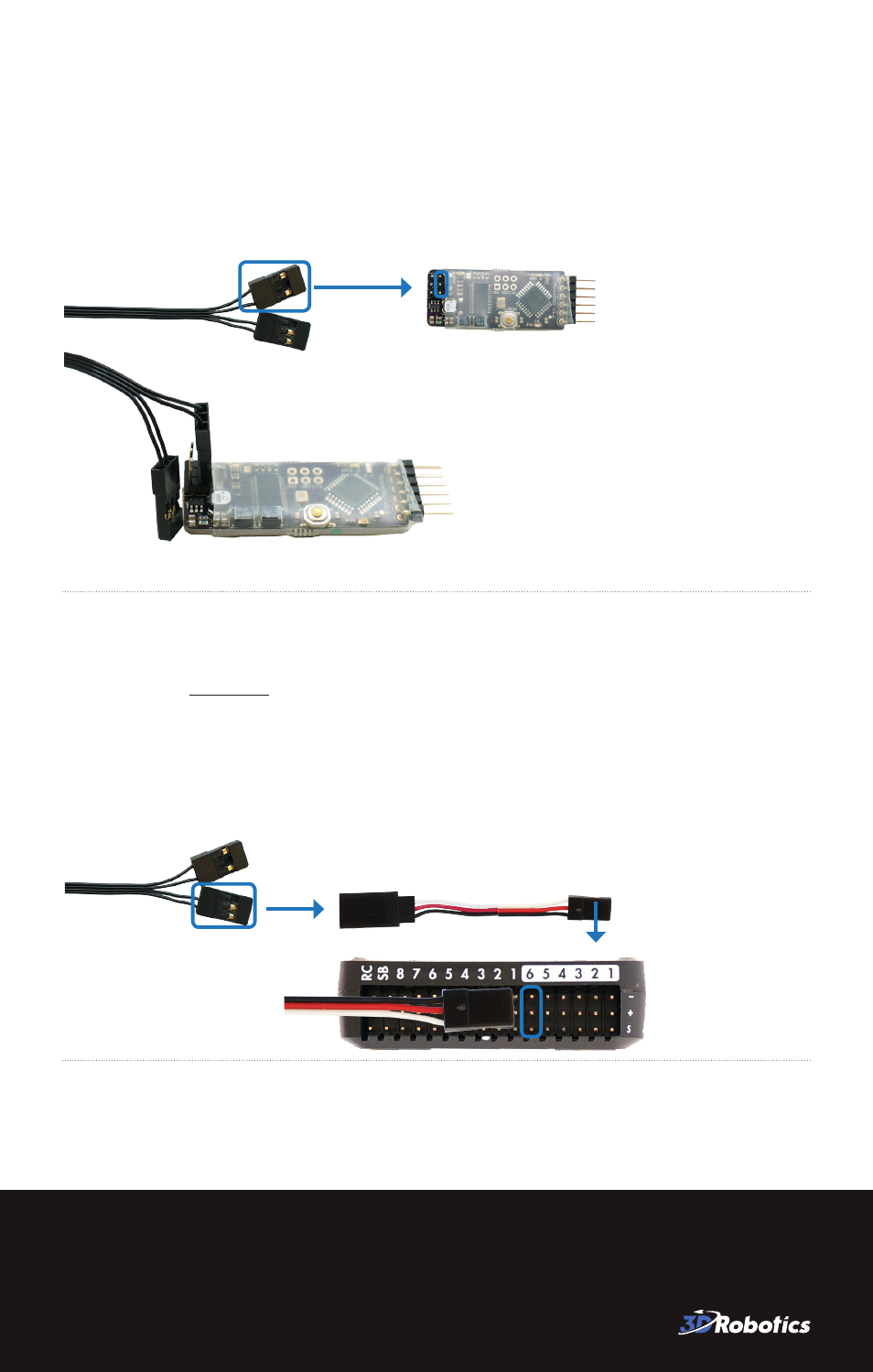

Connect OSD
The two-headed end of the OSD cable has one connector with widely
spaced wires and one connector with closely set wires. Connect the end
with the more widely spaced wires to the inner row of three pins on the
OSD board with the wire farthest from the other connector closest to the
long side of the board (labelled VIN on the other side of the board).
For customer support, contact us at [email protected]
or call our support line at +1 (858) 225-1414
Monday through Friday, from 8 am to 5 pm, PST.
Tarot Gimbal GoPro Video Cable Manual A | ©3D Robotics, Inc. | 22 April 2014
Support
Specifications
» Length: 25.4 cm (10 in)
» Compatible with GoPro HERO3 and HERO3+ cameras only
(Optional) Connect power
Please note that this method will work only if you have a battery elimination circuit (BEC) connected
to an output pin. Click here to visit the APM Wiki for more information about connecting a BEC.
To power the GoPro off the flight battery, connect a male-female servo extension cable (not
included) to the connector on the cable with the more closely set wires. Ensure that the wire farthest
from the other connector connects to the black wire of the servo cable. Connect the male end of the
servo cable to a column of unused auxiliary output pins on Pixhawk with the black wire
connected to the - pin, red wire connected to the + pin, and white wire connected to the s pin.
