OPERATiON
iNSERTiNG AND REMOviNG DRill BiT iN SDS
Take care that the dust protection cap (2) is not damaged when
changing tools.
— iNSERTiNG
Clean and lightly oil the bit before inserting. Insert the dust-free bit
into the bit holder with a twisting motion until it latches.
The bit locks itself. Check the locking by pulling on the tool.
— REMOviNG
Retract back the bit holder locking sleeve (3) and pull out the bit.
warning!Your new WORX Rotary Hammer Drill generates
powerful forces to get your job done quickly and effectively. These
forces may cause inferior quality SDS bits to break and jam in the
chuck,We therefore recommend that only high quality SDS bits be
used with this tool.

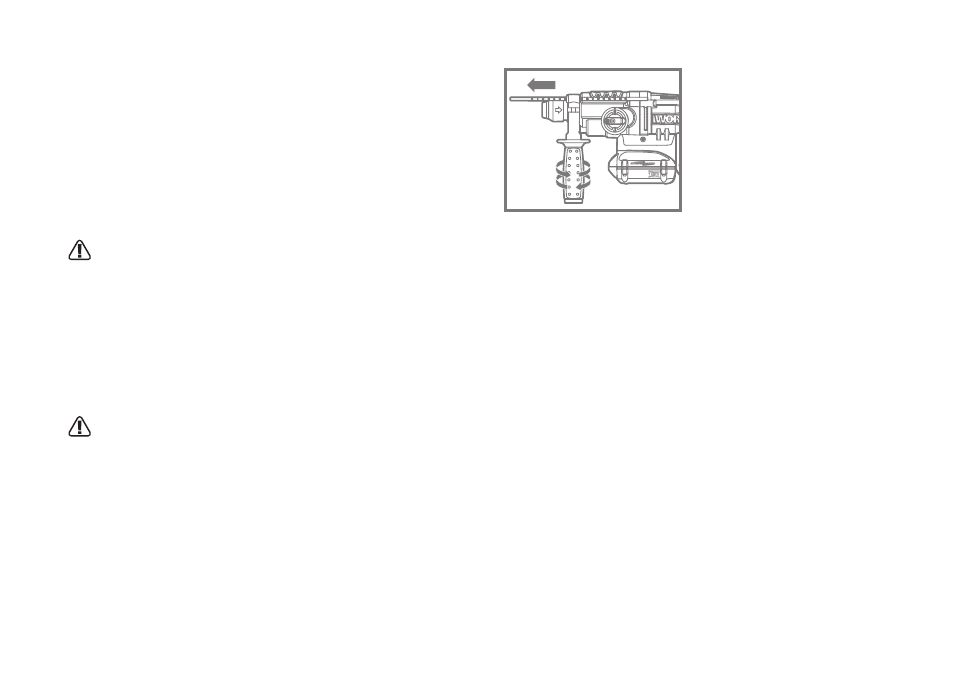

AUXiliARY HANDlE (See Fig. B)
Slide the handle onto the hammer and rotate to the desired working
position. To clamp the auxiliary handle rotates the handle clockwise.
To loosen the auxiliary handle, rotate the handle anti-clockwise.
warning: Always use the auxiliary handle.
ADJUSTABlE DEPTH GAUGE(See Fig. B)
Fit the drill bit into the chuck. Loosen the depth gauge by rotating
the handle anti-clockwise. Slide the depth gauge until the distance
between the depth gauge end and the drill end is equal to the depth
of hole/screw you wish to make. Then clamp the depth gauge by
rotating the handle clockwise.
