OPERATING FEATURES
Note: Components featured in the following instructions for assembling, operating or
maintaining the vacuum lifter are underlined on their first appearance in each section.

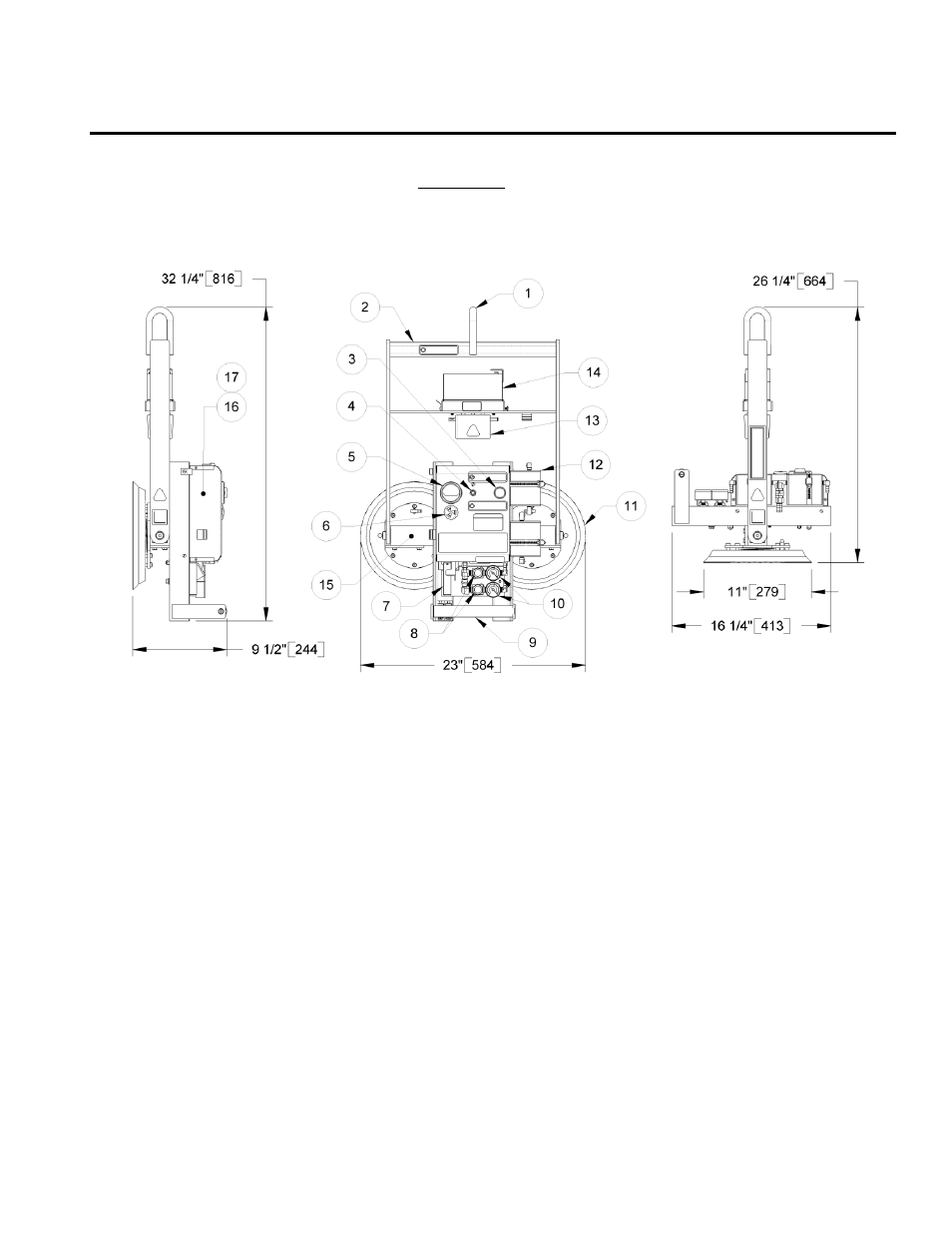

Standard MT2HV11DCO shown with Dual Vacuum System option.
1 LIFT BAIL
7 VALVE HANDLE
12 VACUUM RESERVE TANK
2 LIFT BAR
8 AIR FILTERS
13 BATTERY CHARGER
3 LOW VACUUM WARNING LIGHT
9 CONTROL HANDLE
14 BATTERY
4 BATTERY TEST BUTTON
10 VACUUM GAUGES
15 PAD FRAME
5 BATTERY GAUGE
11 VACUUM PAD
16 Enclosure with VACUUM PUMP
6 LOW VACUUM WARNING BUZZER
17 Enclosure with VACUUM SWITCH
