Operating features – Wood’s Powr-Grip MR411LAC User Manual
Page 7
Rev 22.0/12-13
5
MR4-AC: #35051
OPERATING FEATURES
Note: Components featured in the following instructions for assembling, operating or
maintaining the vacuum lifter are underlined on their first appearance in each section.

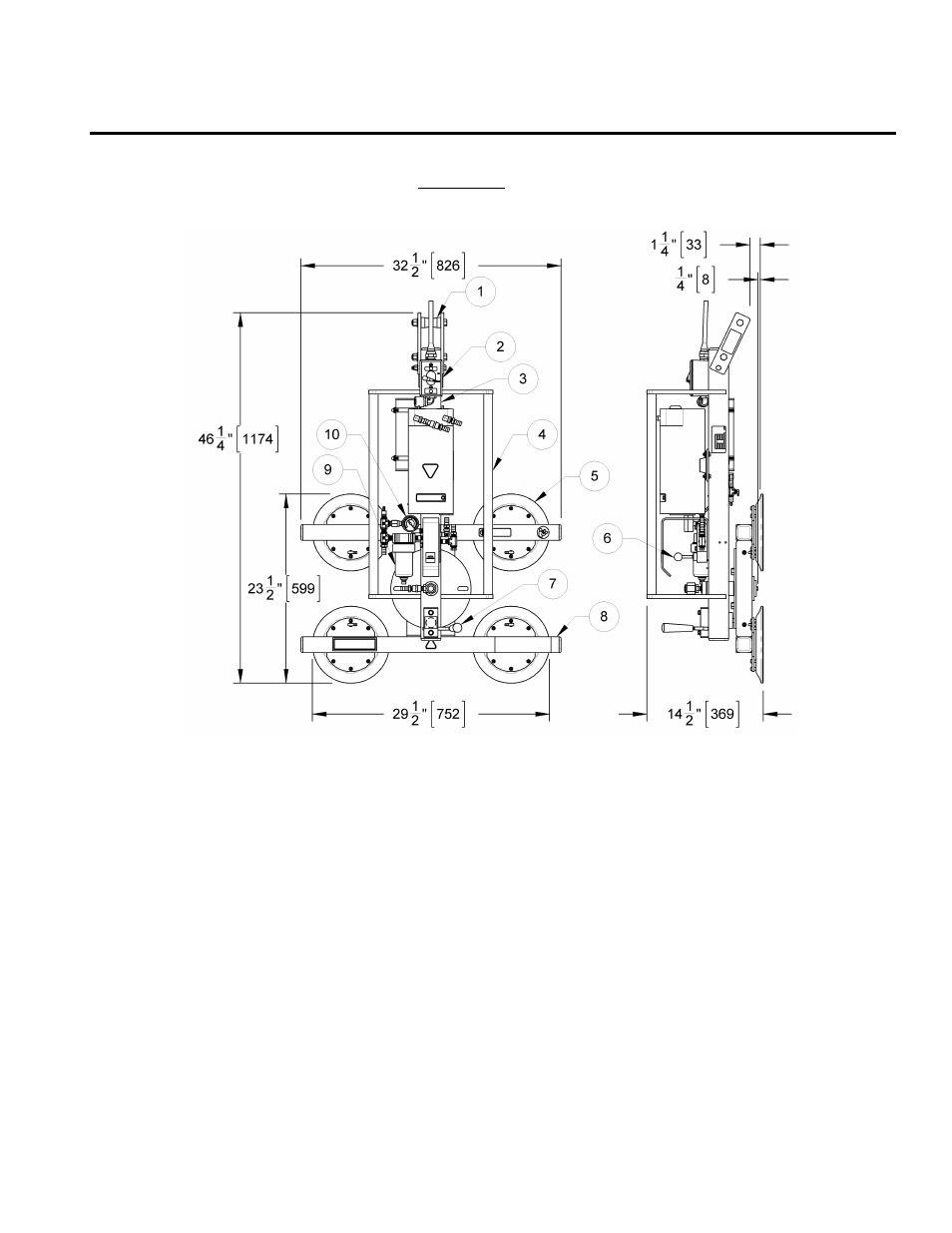

Standard MR49AC shown.
1 LIFT SPOOL
4 CONTROL HANDLE
8 PAD FRAME
2 POWER SWITCH
5 VACUUM PAD
9 AIR FILTER
3 LIFT BAR with VACUUM PUMP
6 VACUUM CONTROL VALVE
10 VACUUM GAUGE
and VACUUM RESERVE TANK
7 ROTATION RELEASE LEVER
