Operating features – Wood’s Powr-Grip MRPT1211LAC User Manual

Page 5

Rev 0.0/9-12

MRPT1211LAC: #35063

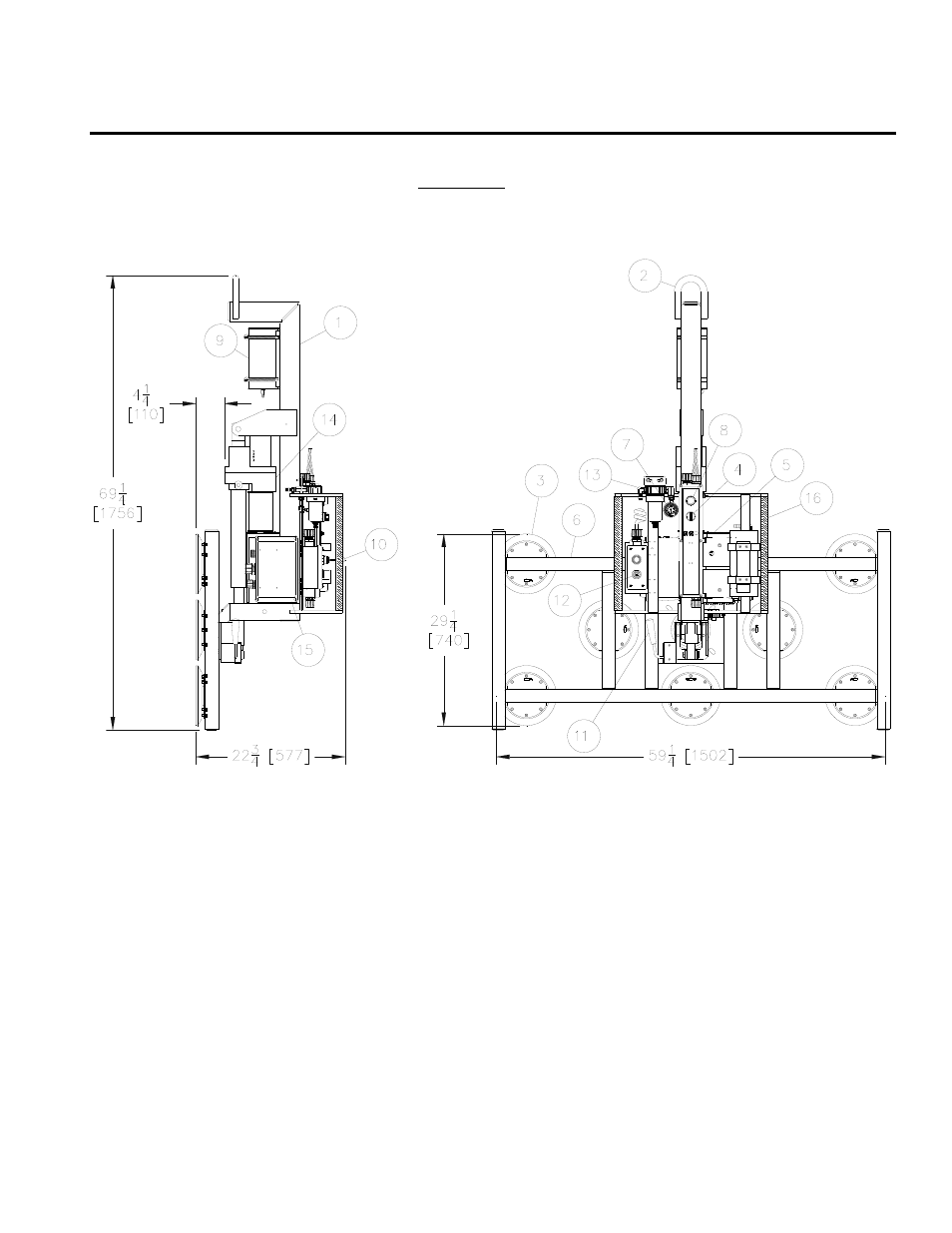

OPERATING FEATURES

Note: Components featured in the following instructions for assembling, operating or

maintaining the vacuum lifter are underlined on their first appearance in each section.

Standard MRPT89AC shown;

Pad Spread and other details are different for Model MRPT1211LAC(O).

1 LIFT BAR

6 PAD FRAME

12 VACUUM RELEASE BUTTON

2 LIFT BAIL

7 VACUUM GAUGE

13 AIR FILTER

3 VACUUM PAD

8 VACUUM LIFT LIGHT

14 TILT ACTUATOR

4 POWER SWITCH

9 VACUUM RESERVE TANK

15 Enclosure with VACUUM SWITCH

5 VACUUM PUMP

10 TILT TOGGLE SWITCH

16 CONTROL HANDLE

11 ROTATION RELEASE LEVER
